MCIMX6Q6AVT10AD

The MCIMX6Q6AVT10AD is a 4‑core ARM® Cortex®‑A9 microprocessor running at up to 1.0 GHz in a 624‑FCBGA (21 × 21 mm) package. It is designed as a multimedia‑focused application processor with integrated graphics acceleration and a broad set of peripheral interfaces.

Targeted for embedded infotainment and HMI class systems, this i.MX 6Quad device delivers multi‑core processing, multimedia extensions and flexible memory support to simplify system integration and accelerate time to market.

Key Features

• Core  ARM® Cortex®‑A9, 4 cores at up to 1 GHz providing symmetric multi‑core processing for concurrent application tasks.
• Multimedia Co‑processing  Includes multimedia DSP capability and NEON™ SIMD to accelerate media and signal processing workloads.
• Memory Interfaces  Supports LPDDR2, LVDDR3 and DDR3 memory controllers to match a range of memory performance and cost targets.
• Graphics & Video  Graphics acceleration and 2D/3D capabilities for display and UI rendering.
• Display & Human Interface  Integrated display interface controllers with support for LCD and keypad interfaces.
• High‑speed Connectivity  Integrated Gigabit Ethernet (10/100/1000 Mbps), SATA 3 Gbps (1 port) and four USB 2.0 ports with PHY for mass storage and networking.
• Additional Interfaces  On‑chip support for CAN and other peripheral interfaces to connect vehicle and machine networks and sensors.
• Security  Hardware security features including ARM TrustZone, boot security, cryptography, secure JTAG, secure memory and secure RTC functions.

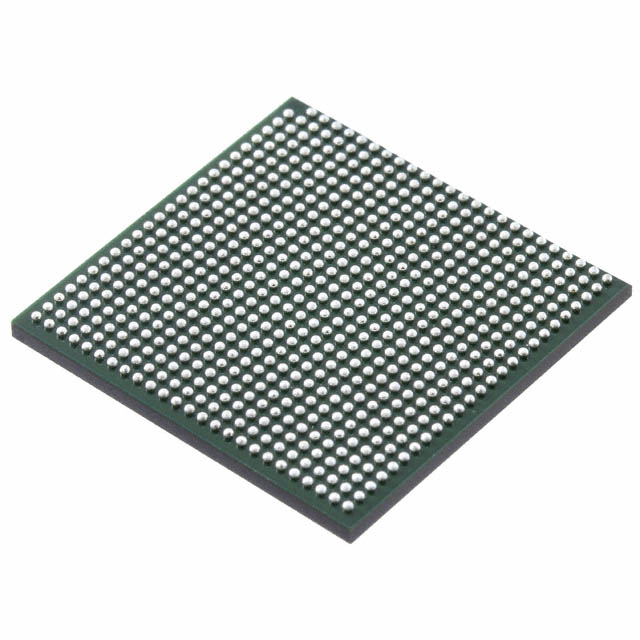

• Package & Mounting  624‑FCBGA package (21 × 21 mm), surface‑mount for compact board designs.
• Operating Range  Specified operating temperature range from −40 °C to 125 °C for extended‑temperature applications.
• Compliance  RoHS compliant.

Typical Applications

• Infotainment Systems  Multicore processing, graphics acceleration and multimedia extensions enable responsive user interfaces and media playback.
• Human‑Machine Interfaces (HMI)  Integrated display controllers and graphics support make the device suitable for touchscreen and instrument cluster displays.
• Telematics and Connectivity Gateways  Gigabit Ethernet, multiple USB ports, CAN and SATA support flexible connectivity and storage options for embedded gateways.

Unique Advantages

• Scalable Multi‑core Performance: Four ARM® Cortex®‑A9 cores at 1.0 GHz enable concurrent execution of UI, media and background tasks.
• Integrated Multimedia Acceleration: NEON™ SIMD and multimedia DSP support reduce software complexity for media processing and improve responsiveness.
• Flexible Memory Options: Support for LPDDR2, LVDDR3 and DDR3 lets designers optimize for power, performance and cost.
• Comprehensive I/O Set: On‑chip Ethernet, SATA, multiple USB ports, CAN and display controllers minimize external components and simplify board design.
• Hardware Security Primitives: Built‑in TrustZone, secure boot and cryptography features support secure system design and trusted boot flows.
• Wide Temperature Operation: −40 °C to 125 °C rating supports deployment in extended‑temperature embedded environments.

Why Choose MCIMX6Q6AVT10AD?

The MCIMX6Q6AVT10AD combines quad‑core ARM® Cortex®‑A9 processing, multimedia acceleration and a rich peripheral set in a compact 624‑FCBGA package. Its flexible memory support and comprehensive I/O reduce external component count while enabling responsive multimedia user experiences and robust connectivity.

This processor is appropriate for designers building advanced infotainment, HMI and telematics platforms who need multi‑core compute, graphics capabilities and integrated security features in a single silicon solution backed by detailed technical documentation.

Request a quote or submit your RFQ to begin evaluating the MCIMX6Q6AVT10AD for your next embedded design.
