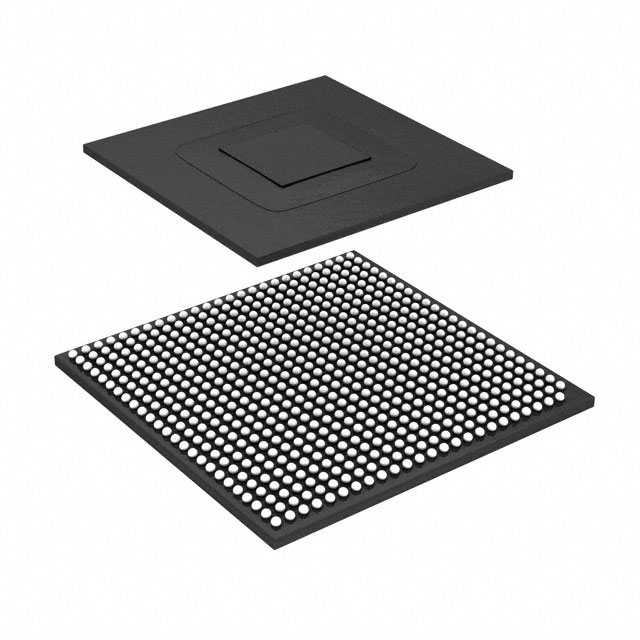

MCIMX6S5EVM10ACR

The MCIMX6S5EVM10ACR is an ARM® Cortex®-A9 based microprocessor IC running at 1.0 GHz in a 624-MAPBGA (21×21 mm) package. It implements a single 32-bit Cortex‑A9 core with integrated multimedia acceleration, video processing and on‑chip power management targeted at consumer multimedia applications.

Designed for embedded and consumer products, this device provides a compact, integrated processing solution for display-driven and connected devices where performance, multimedia capability and a broad set of peripherals are required.

Key Features

• Core  ARM® Cortex®-A9 single core, 32‑bit, operating up to 1 GHz for application processing.
• Memory Controllers  Integrated controllers supporting LPDDR2, LVDDR3 and DDR3 memory types to match a range of system memory needs.
• Graphics & Video  Includes 2D and 3D graphics processors and 1080p video processing capabilities for rich multimedia and display applications.
• Connectivity & Interfaces  Integrated interfaces include Gigabit Ethernet (10/100/1000 Mbps, 1), USB 2.0 with PHY (4 ports) and CAN for vehicle/industrial networks.
• Security  Hardware security features including ARM TrustZone (TZ), boot security, cryptography support, secure fusebox, secure JTAG, secure memory and tamper detection.
• Integration & Power  On-chip power management and integrated system modules reduce external component count and simplify board-level design.
• Package & Temperature  624-MAPBGA (21×21 mm, 0.8 mm pitch) surface-mount package; operating temperature range −20 °C to 105 °C.
• Compliance  RoHS compliant.

Typical Applications

• Web and Multimedia Tablets  Processor and multimedia engines provide display and video capabilities suited for tablet-class consumer devices.
• Consumer Multimedia Devices  Designed as an applications processor for consumer products that require integrated graphics and video processing.
• Connected Consumer Systems  Interfaces for WLAN, Bluetooth, GPS, storage, displays and camera sensors enable connected device designs and peripheral integration.

Unique Advantages

• Single-core 1 GHz Performance  Delivers predictable application processing throughput for embedded user interfaces and control tasks.
• Integrated Multimedia Subsystems  2D/3D graphics and 1080p video processing reduce the need for separate display and video accelerators.
• Flexible Memory Support  Support for LPDDR2, LVDDR3 and DDR3 memory types enables designers to select memory suited to cost, power and performance targets.
• Extensive I/O Connectivity  Gigabit Ethernet, multiple USB 2.0 ports with PHY and CAN simplify system integration for networking, peripheral and industrial interfaces.
• Comprehensive Security Features  On-chip TrustZone, secure boot and cryptography functions provide a foundation for secure device deployment.
• Compact, Industry-Standard Package  624‑MAPBGA (21×21) surface-mount package provides a compact form factor for space-constrained designs.

Why Choose MCIMX6S5EVM10ACR?

The MCIMX6S5EVM10ACR positions itself as a compact, integrated processor solution for consumer and embedded multimedia applications that need a balance of application performance, graphics/video capability and secure system features. Its single ARM® Cortex®-A9 core at 1 GHz, combined with integrated memory controllers and multimedia subsystems, supports designs that require display-driven user interfaces and peripheral connectivity.

Backed by NXP Semiconductors documentation and technical resources, this device is suitable for designers targeting consumer product implementations and connected systems where integration, defined operating temperature range and RoHS compliance are important considerations.
