MCIMX6U7CVM08AD

The MCIMX6U7CVM08AD is an NXP Semiconductors microprocessor from the i.MX 6U series featuring dual ARM® Cortex®‑A9 cores running up to 800 MHz. It is designed for embedded applications that require responsive control and advanced multimedia capabilities.

Built for industrial and medical-oriented embedded systems, the device combines dual‑core processing, graphics and video acceleration, flexible memory interfaces and integrated power management to support graphically rich, highly responsive user interfaces and connected devices.

Key Features

• Processor Core Dual ARM® Cortex®‑A9 cores, 32‑bit, up to 800 MHz for multi‑threaded embedded workloads.
• Multimedia and Graphics Integrated 2D/3D graphics processors and 1080p video processing for rich display and video applications.
• Memory Interfaces Supports LPDDR2, LVDDR3 and DDR3 memory controllers for flexible system memory choices.
• Connectivity and I/O Single 10/100/1000 Mbps Ethernet port, four USB 2.0 ports with PHY, and CAN interface for common industrial connectivity needs.
• Security Comprehensive security features including ARM TrustZone (TZ), boot security, cryptography, secure fusebox, secure JTAG, secure memory, secure RTC and tamper detection.
• Power and System Integrated power management and on‑chip regulators consistent with the series’ focus on power‑optimized embedded designs.

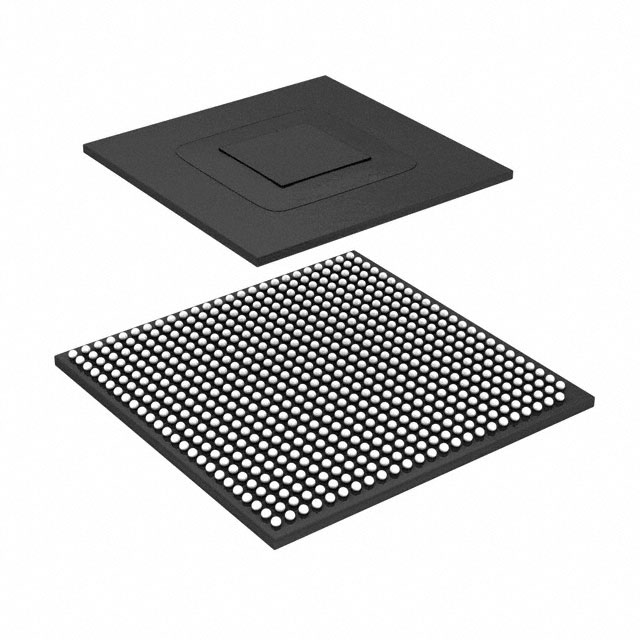

• Package and Mounting 624‑MAPBGA (21 × 21 mm) surface‑mount package for high‑density board designs.
• Qualification and Temperature Industrial qualification with operating temperature range from −40 °C to 105 °C for harsh environments.

Typical Applications

• Industrial HMI and Control Panels Drives graphically rich, responsive user interfaces and connects to Ethernet, USB and CAN peripherals for machine and process control.
• Medical Devices Powers display‑centric medical instruments and embedded systems where industrial qualification and security features are required.
• Embedded Multimedia Systems Enables 2D/3D graphics and 1080p video processing for kiosks, digital signage and multimedia appliances.

Unique Advantages

• High‑performance dual cores Dual ARM Cortex‑A9 cores at up to 800 MHz deliver responsive multi‑tasking for embedded applications.
• Integrated multimedia acceleration On‑chip 2D/3D graphics and video processing reduce external component count for display‑rich designs.
• Flexible memory support Multiple supported memory technologies (LPDDR2, LVDDR3, DDR3) simplify system design across memory cost and performance points.
• Comprehensive connectivity Gigabit Ethernet, multiple USB 2.0 ports with PHY and CAN enable broad peripheral and network integration.
• Industrial robustness Industrial qualification and −40 °C to 105 °C operating range support deployments in demanding environments.
• Built‑in security Hardware security features including TrustZone, secure boot and cryptography help protect software and system data.

Why Choose MCIMX6U7CVM08AD?

The MCIMX6U7CVM08AD positions itself as a balanced, integrated MPU for embedded systems that require dual‑core processing and advanced multimedia capability while meeting industrial environmental and security demands. Its combination of processing, graphics/video acceleration, flexible memory interfaces and integrated power management makes it suitable for designs that need a compact, feature‑rich application processor.

Backed by NXP Semiconductors’ i.MX 6 family documentation and industrial orientation, this device is appropriate for developers building industrial HMIs, medical instruments and embedded multimedia platforms that value long‑term availability, integration and system‑level reliability.

Request a quote or submit an inquiry to discuss pricing, availability and how MCIMX6U7CVM08AD can fit into your next embedded design project.
