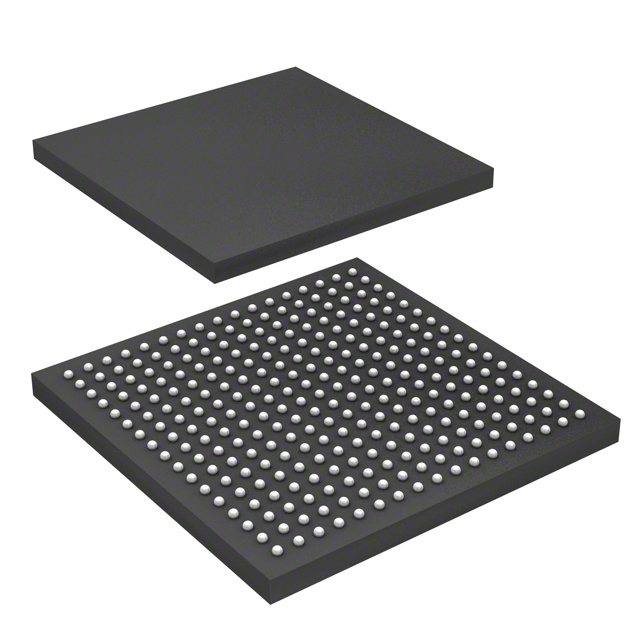

MCIMX6Y2DVM05AB
| Part Description |
ARM® Cortex®-A7 Microprocessor IC i.MX6 1 Core, 32-Bit 528MHz 289-MAPBGA (14x14) |
|---|---|
| Quantity | 97 Available (as of October 8, 2026) |
| Product Category | Microprocessors |
|---|---|
| Part Series | i.MX 6Y |
| Manufacturer | NXP USA Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 16 Weeks |
| Datasheet |
Specifications & Environmental
| Co-Processors/DSP | Multimedia; NEON™ MPE | Core Processor | ARM® Cortex®-A7 | Device Package | 289-MAPBGA (14x14) | ||
|---|---|---|---|---|---|---|---|
| Display & Interface Controllers | Electrophoretic, LCD | ECCN | 5A992C | Ethernet | 10/100Mbps (2) | ||
| Graphics Acceleration | No | HTS Code | 8542.31.0001 | Moisture Sensitivity Level | 3 (168 Hours) | ||
| Mounting Method | Surface Mount | Mounting Type | Surface Mount | Number of Cores/Bus Width | 1 Core, 32-Bit | ||
| Operating Temperature | 0°C ~ 95°C (TJ) | Package / Case | 289-LFBGA | RAM Controllers | LPDDR2, DDR3, DDR3L | ||
| REACH Compliance | REACH Unaffected | RoHS Compliance | ROHS3 Compliant | Security Features | A-HAB, ARM TZ, CSU, SJC, SNVS | ||
| Speed | 528MHz | Supplier Device Package | 289-MAPBGA (14×14) | USB | USB 2.0 OTG + PHY (2) | ||
| Voltage – I/O | 1.8V, 2.8V, 3.3V |
Overview of MCIMX6Y2DVM05AB – IC MPU I.MX6 528MHz 289-MAPBGA
The MCIMX6Y2DVM05AB is an NXP Semiconductors microprocessor IC built on a single ARM® Cortex®-A7 core running at 528 MHz. It delivers a compact, integrated processing solution for embedded and consumer applications that require efficient general-purpose compute and a broad set of peripheral interfaces.
As part of the i.MX 6Y family and related i.MX6ULL series, this device combines a Cortex-A7 architecture with integrated system features—including on-chip power management and multiple memory and I/O options—making it suitable for connected devices and consumer-focused embedded designs.
Key Features
- Core and Performance Single ARM® Cortex®-A7 core, 32-bit architecture running at 528 MHz for predictable single-threaded processing.
- Memory and Storage Interfaces Supports LPDDR2, DDR3 and DDR3L memory controllers to match a range of system memory designs and performance points.
- Connectivity and Peripheral I/O Dual 10/100 Mbps Ethernet ports, two USB 2.0 OTG ports with PHY, and CANbus support provide versatile wired connectivity for networked and control applications.
- Multimedia and DSP Multimedia co-processor capabilities including NEON™ MPE for enhanced media processing and signal tasks.
- Security and System Protection Hardware security features include A-HAB, ARM TrustZone (ARM TZ), CSU, SJC and SNVS to support secure boot and trusted execution models.
- Power Integration Family-level documentation indicates an integrated power management module to simplify external power supply design and sequencing.
- Package and Mounting Supplied in a 289-MAPBGA (14 × 14 mm) surface-mount package (289-LFBGA case), enabling compact board layouts.
- Operating Range and Compliance Rated for operation from 0 °C to 95 °C and RoHS compliant; consumer qualification.
Typical Applications
- Connected Consumer Devices — Embedded processing and peripheral integration for consumer products and connected appliances.
- Display and HMI Controllers — Supports electrophoretic and LCD display interfaces for user interface and control panels.
- Networked Embedded Controllers — Dual 10/100 Ethernet and USB 2.0 OTG provide capability for gateways, controllers, and networked peripherals.
- Secure IoT Endpoints — On-chip security features enable secure boot and trusted execution for devices handling sensitive data or credentials.
Unique Advantages
- Highly integrated system features: On-chip power management and a broad set of peripheral controllers reduce external BOM and simplify system design.
- Flexible memory support: Native LPDDR2, DDR3 and DDR3L controller compatibility enables designers to select memory technologies that match cost and performance targets.
- Rich wired connectivity: Dual Ethernet, USB 2.0 OTG with PHY and CANbus provide multiple physical interfaces for networking and control without added bridge devices.
- Comprehensive security suite: A-HAB, ARM TrustZone, CSU, SJC and SNVS combine to support secure boot and runtime protection strategies.
- Compact, assembly-friendly package: 289-MAPBGA (14×14 mm) surface-mount package enables space-efficient board layouts for compact products.
- Consumer-grade operating range and compliance: 0 °C to 95 °C rating and RoHS compliance align with consumer product design requirements.
Why Choose MCIMX6Y2DVM05AB?
The MCIMX6Y2DVM05AB positions itself as a streamlined, single-core Cortex-A7 solution that balances processing capability with system-level integration. Its combination of memory flexibility, multiple wired interfaces and an on-chip security suite makes it suitable for embedded and consumer connected-device designs that require efficient compute and robust peripheral support.
Backed by NXP Semiconductors' i.MX 6Y / i.MX6ULL family documentation and supplied in a compact 289-MAPBGA package, this part is intended for designers seeking a compact, consumer-qualified MPU with integrated power and security features to accelerate time-to-market.
Request a quote or submit a purchase inquiry to receive pricing, availability, and additional technical support for MCIMX6Y2DVM05AB.
