MIMX8MN1DVTJZAA

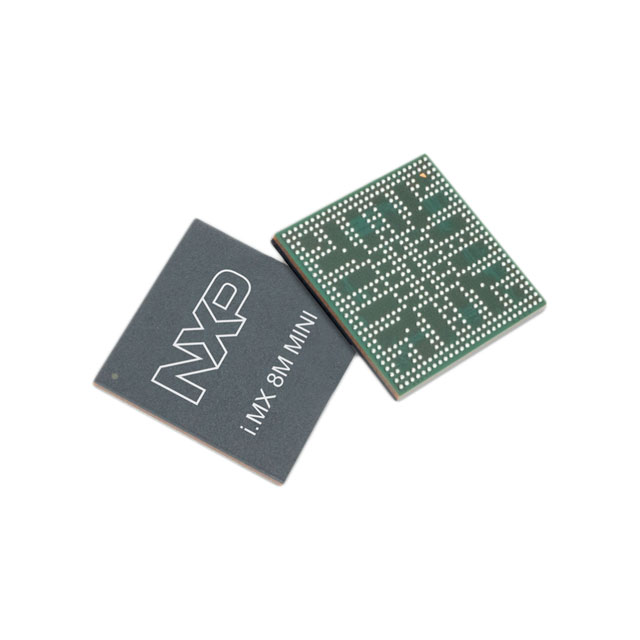

The MIMX8MN1DVTJZAA is an NXP Semiconductors microprocessor in the i.MX 8MN family. It integrates an ARM® Cortex®-A53 application core (64‑bit, 1.5 GHz) alongside an ARM® Cortex®-M7 co‑processor for real-time tasks, packaged in a 486‑LFBGA (14 × 14 mm) surface‑mount FCBGA.

Designed for embedded and consumer markets, this device targets multimedia and connectivity applications by combining compute performance, media acceleration, on‑chip security, and flexible memory and display interfaces while supporting low power operation described for the i.MX 8M Nano family.

Key Features

• CPU cores – ARM® Cortex®-A53 64‑bit application core at 1.5 GHz paired with an ARM® Cortex®-M7 real‑time co‑processor (family datasheet notes Cortex‑M7 operation up to 750 MHz).
• DSP & NEON acceleration – Multimedia co‑processor support with NEON™ MPE for media processing and signal acceleration.
• Memory support – Integrated controllers for DDR3L, DDR4 and LPDDR4 memories to support a range of system memory configurations.
• Display and camera interfaces – On‑chip controllers for LCD, MIPI‑CSI (camera), and MIPI‑DSI (display) for rich user interfaces and vision applications.
• Connectivity – Gigabit Ethernet (GbE) and dual USB 2.0 ports with PHY provide wired networking and peripheral connectivity.
• Security – Hardware security features including ARM TrustZone (TZ), CAAM, HAB, OCRAM, RDC, SJC and SNVS for secure boot, cryptography and isolated storage.
• Peripheral I/O – Common interfaces such as I²C plus a broad set of family peripherals (USB, Ethernet, audio interfaces noted in family datasheet) for system integration.
• Graphics acceleration – On‑chip graphics acceleration to support multimedia and graphical user interfaces.
• Package and mounting – 486‑LFBGA FCBGA package, 14 × 14 mm, 0.5 mm pitch; surface‑mount.
• Operating range and compliance – Operating temperature 0 °C to 95 °C; RoHS compliant; consumer product qualification.

Typical Applications

• Multimedia devices – Media players and streaming endpoints that require display, audio and hardware multimedia acceleration.
• Smart home and voice assistants – Consumer hubs and voice‑enabled devices that benefit from integrated audio interfaces, processing and security.
• Human‑Machine Interfaces (HMI) – Touch and display controllers leveraging MIPI‑DSI, LCD controllers and graphics acceleration for responsive GUIs.
• Embedded vision and camera systems – Camera‑enabled devices using MIPI‑CSI for image capture and on‑chip processing for edge tasks.
• Connected edge controllers – Ethernet and USB connectivity for networked IoT or edge devices requiring robust peripheral I/O and memory options.

Unique Advantages

• Balanced application + real‑time processing: Combining a 64‑bit Cortex‑A53 core with a Cortex‑M7 co‑processor enables separation of high‑level OS workloads and deterministic control tasks.
• Flexible memory support: DDR3L, DDR4 and LPDDR4 controllers allow designers to choose memory technologies to match performance, power and cost targets.
• Integrated multimedia and display support: Native LCD, MIPI‑CSI and MIPI‑DSI controllers plus graphics acceleration simplify development of rich user interfaces and camera applications.
• Hardware security primitives: ARM TrustZone plus CAAM, HAB and related modules provide building blocks for secure boot, cryptography and trusted execution.
• Compact, production‑ready package: 486‑LFBGA FCBGA (14 × 14 mm, 0.5 mm pitch) surface‑mount package supports high‑density PCB designs.
• Designed for consumer embedded products: Consumer qualification and family datasheet documentation support integration into consumer and industrial‑grade embedded systems.

Why Choose MIMX8MN1DVTJZAA?

The MIMX8MN1DVTJZAA places a 1.5 GHz 64‑bit application core together with a Cortex‑M7 real‑time processor into a compact, feature‑rich package suited to embedded and consumer designs. Its combination of multimedia acceleration, display and camera interfaces, flexible memory support and hardware security elements makes it appropriate for products that need both user experience and secure, connected operation.

This part is ideal for designers building consumer multimedia devices, smart home hubs, HMIs and connected edge controllers who require documented package and electrical information from the i.MX 8M Nano family and a package suited to production surface‑mount assembly.

If you would like pricing, availability or to request a quote for MIMX8MN1DVTJZAA, submit a quote request or contact our sales team to discuss your project requirements and volume needs.
