MIMX8MN2DVTJZAA

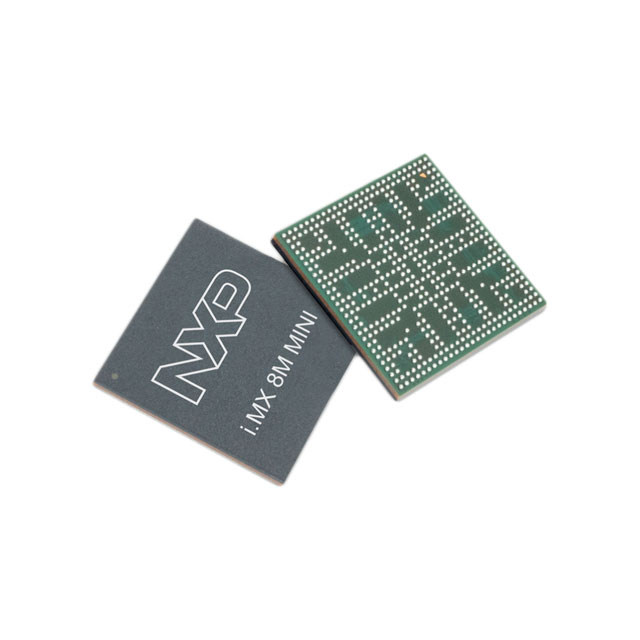

The MIMX8MN2DVTJZAA is an ARM® Cortex®‑A53 microprocessor IC clocked at 1.5 GHz in a 486‑LFBGA (14×14 mm) surface‑mount package. This consumer‑qualified embedded MPU integrates a 64‑bit application core with a Cortex‑M7 coprocessor and a broad set of on‑chip interfaces and security features for compact, media‑enabled designs.

Designed for embedded and consumer applications, the device delivers a blend of processing performance, memory interface flexibility and media connectivity—supporting display, audio and networking use cases while providing hardware security and power‑efficient operation within a 0 °C to 95 °C operating range.

Key Features

• Processor Core — ARM® Cortex®‑A53 64‑bit core running at up to 1.5 GHz; single‑core application processing capability as specified for this part.
• Coprocessor — Integrated ARM® Cortex®‑M7 for real‑time and low‑power offload tasks.
• Memory Interfaces — Built‑in RAM controllers supporting DDR3L, DDR4 and LPDDR4 memory types for flexible system memory choices.
• Display and Multimedia — Display interface controllers include LCD, MIPI‑CSI and MIPI‑DSI; on‑chip graphics acceleration is indicated for media handling.
• Connectivity — Gigabit Ethernet (GbE) and two USB 2.0 ports with PHY, plus I2C for peripheral control and integration.
• Security and System Reliability — Hardware security features include ARM TrustZone (TZ), CAAM, HAB, OCRAM, RDC, SJC and SNVS to support secure boot, cryptography and runtime protection.
• Package and Mounting — 486‑LFBGA FCBGA package (14×14 mm, 0.5 mm pitch), surface mount construction suitable for compact embedded boards.
• Qualification & Environmental — Consumer qualification and RoHS compliance; operating temperature range from 0 °C to 95 °C.

Typical Applications

• Consumer multimedia devices — On‑chip graphics acceleration and display interfaces support media playback, UI rendering and camera input.
• Embedded human‑machine interfaces (HMIs) — LCD and MIPI‑DSI support for connected displays and touchscreen systems in consumer products.
• IoT and networked appliances — Integrated GbE and USB 2.0 with PHY provide wired connectivity and peripheral expansion for gateway and appliance designs.

Unique Advantages

• Compact high‑performance processing — 1.5 GHz 64‑bit Cortex‑A53 core delivers application processing performance in a small 14×14 mm package.
• Real‑time offload with Cortex‑M7 — Dedicated Cortex‑M7 coprocessor enables deterministic control and low‑power background tasks without burdening the main core.
• Flexible memory support — DDR3L, DDR4 and LPDDR4 controller support simplifies BOM choices across different memory performance and power targets.
• Integrated media and I/O — Native LCD, MIPI‑CSI/DSI, USB and GbE interfaces reduce external components for multimedia and connectivity applications.
• Hardware security suite — Multiple on‑chip security modules provide building blocks for secure boot, cryptography and runtime protection in consumer systems.

Why Choose MIMX8MN2DVTJZAA?

The MIMX8MN2DVTJZAA positions itself as a compact, media‑capable MPU for consumer‑grade embedded systems that need a balance of application performance, peripheral integration and hardware security. With a 1.5 GHz Cortex‑A53 application core, Cortex‑M7 coprocessor, broad memory interface support and multiple display and connectivity controllers, it simplifies board design while supporting common multimedia and networking features.

This part is suited for designers of consumer embedded products seeking a scalable, secure platform with flexible memory and I/O options. As part of the i.MX 8M Nano family (series‑level information), the broader family also highlights media and audio capabilities for designers targeting graphics and audio experiences.

Request a quote or submit an inquiry to receive pricing, lead‑time and availability information for MIMX8MN2DVTJZAA and support for integration into your embedded design.
