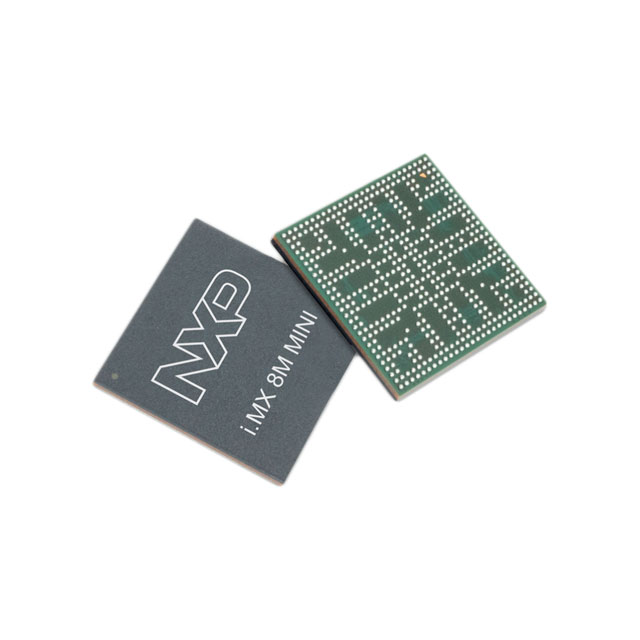

MIMX8MN3CVPIZAA

The MIMX8MN3CVPIZAA is an industrial-grade application microprocessor from NXP’s i.MX 8MN family. It integrates a dual ARM® Cortex®-A53 64-bit application core running up to 1.4 GHz with an ARM® Cortex®-M7 coprocessor for real-time tasks, delivering a balance of application processing and deterministic control.

Designed for consumer and industrial deployments, this device combines multimedia-capable display and camera interfaces, wide memory support, network and USB connectivity, and hardware security modules to simplify system integration while meeting extended temperature requirements.

Key Features

• CPU and Real-time Coprocessor Dual ARM® Cortex®-A53 64-bit application cores at 1.4 GHz paired with an ARM® Cortex®-M7 coprocessor for real-time and low-power processing tasks.
• Memory Interfaces Integrated controllers supporting DDR3L, DDR4 and LPDDR4 memory types to fit a range of performance and power targets.
• Display and Camera Display interface controllers include LCD, MIPI-DSI and MIPI-CSI to support modern user interfaces and camera input.
• Connectivity GbE Ethernet and two USB 2.0 ports with PHY provide wired networking and host/device USB connectivity.
• Security Subsystem On-chip security features include ARM TrustZone (TZ), CAAM, HAB, OCRAM, RDC, SJC and SNVS for secure boot, acceleration and system isolation.
• Multimedia and Graphics Graphics acceleration and media-specific features support enhanced audio/visual functionality in consumer and industrial applications.
• Package and Mounting Supplied in a 306-ball TFBGA (11 × 11 mm) surface-mount package for compact system designs.
• Industrial Qualification and Temperature Range Industrial qualification with an operating temperature range of −40 °C to 105 °C for deployment in harsh environments.
• Peripheral Support Includes common interfaces such as I²C and a broad set of peripheral support to ease integration.
• RoHS Compliance RoHS compliant for environmental and regulatory alignment.

Typical Applications

• Industrial HMI and Control Panels Drive LCD or MIPI displays and run application logic within the −40 °C to 105 °C industrial temperature window while leveraging real-time tasks on the Cortex‑M7.
• Media and Audio Appliances Use built-in graphics acceleration and media-specific features, plus a wide set of audio interfaces (series-level) to implement multimedia-rich consumer or industrial products.
• Edge and Networked Devices Integrate GbE and dual USB 2.0 with PHY for wired connectivity and peripheral attachment in embedded networked systems.
• Real-time Control and Sensor Hubs Offload deterministic control and low-power sensor processing to the Cortex‑M7 coprocessor while the Cortex‑A53 cores handle application-level tasks.

Unique Advantages

• Balanced Application and Real-time Processing: Dual 64-bit Cortex‑A53 cores combined with a Cortex‑M7 coprocessor allow separation of high-level applications and deterministic control without additional MCUs.
• Flexible Memory Support: Native controllers for DDR3L, DDR4 and LPDDR4 enable designers to choose memory that best fits performance, cost and power targets.
• Integrated Security Primitives: Multiple on-chip security modules (ARM TZ, CAAM, HAB, OCRAM, RDC, SJC, SNVS) help implement secure boot and runtime protections directly in silicon.
• Industrial-ready Thermal Range: Rated for −40 °C to 105 °C operation to support deployment in demanding industrial environments.
• Compact Surface-mount Footprint: 306-TFBGA (11 × 11 mm) package enables space-constrained board designs while retaining extensive peripheral connectivity.

Why Choose MIMX8MN3CVPIZAA?

The MIMX8MN3CVPIZAA positions itself as a highly integrated, industrially qualified application processor that combines application-class 64-bit processing with a real-time Cortex‑M7 coprocessor. Its support for multiple memory types, display/camera interfaces, wired networking and USB, together with robust security features, makes it suitable for embedded systems requiring multimedia, connectivity and secure operation.

Engineers designing consumer or industrial devices will find this part useful for compact designs that demand a balance of performance, integration and environmental resilience, backed by NXP documentation and the i.MX 8M Nano family specification set.

Request a quote or submit a product inquiry to begin evaluation of the MIMX8MN3CVPIZAA for your next embedded design.
