N8086-1

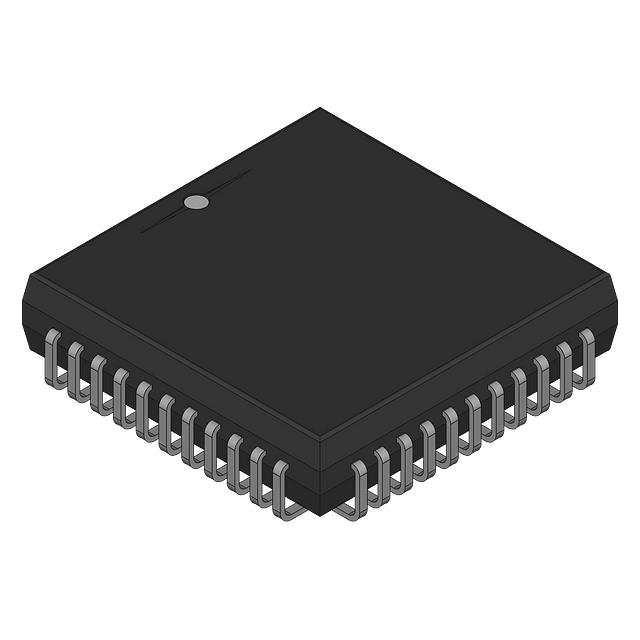

The N8086-1 is a commercial-grade 8086 microprocessor in a single-core, 16-bit configuration, operating at 10 MHz. Manufactured by Advanced Micro Devices as part of the Am8086 series, this device targets embedded applications that require classic 16-bit processing in a surface-mount PLCC package.

Key hardware attributes include a 5 V I/O voltage, EBI/EMI interfaces for system expansion, and a 44-lead PLCC (16.59 × 16.59 mm) package. The device is RoHS compliant and specified for operation from 0 °C to 70 °C.

Key Features

• Processor Core  Single 8086 core with a 16-bit data bus, providing legacy 16-bit processing in embedded designs.
• Operating Speed  10 MHz clock rate suitable for applications designed around mid-range 16-bit performance.
• Power and I/O  5 V I/O voltage, matching systems and peripherals that require TTL/5 V signaling levels.
• Interfaces  Includes EBI/EMI interfaces for external bus expansion and memory/peripheral interfacing.
• Package and Mounting  44-PLCC (16.59 × 16.59 mm), J-lead, surface-mount package for compact board-level integration.
• Grade and Temperature Range  Commercial-grade device specified for 0 °C to 70 °C operation.
• Compliance  RoHS compliant, supporting lead-free product requirements.

Typical Applications

• Embedded Control  Use in embedded systems that require a 16-bit microprocessor with 10 MHz operation and 5 V I/O.
• Legacy System Maintenance  Suitable for maintenance or refurbishment of existing designs based on the Am8086 architecture.
• System Expansion  EBI/EMI interfaces enable integration into designs that require external memory or peripheral bus connections.

Unique Advantages

• Proven 8086 Core:  Single 16-bit core provides predictable, legacy-compatible processing for designs that depend on the Am8086 architecture.
• Board-Level Compactness:  44-PLCC surface-mount package (16.59 × 16.59 mm) simplifies PCB layout while keeping package footprint controlled.
• 5 V I/O Compatibility:  Native 5 V I/O supports direct interfacing with TTL-level peripherals and legacy circuits.
• External Bus Support:  EBI/EMI interfaces allow straightforward connection to external memory and peripherals for system expansion.
• Commercial Temperature Range:  Specified 0 °C to 70 °C operation for standard commercial applications.
• RoHS Compliant:  Meets lead-free environmental requirements for modern manufacturing processes.

Why Choose N8086-1?

The N8086-1 delivers a straightforward, single-core 16-bit MPU solution in a compact PLCC surface-mount package, combining a 10 MHz operating speed with 5 V I/O and external bus interfaces. As a member of the Advanced Micro Devices Am8086 series, it provides a familiar architecture for designs requiring compatibility with established 8086-based systems.

This part is well suited to engineers and procurement teams working on embedded and legacy designs that need predictable 16-bit processing, external bus connectivity, and RoHS-compliant hardware within a commercial temperature range.
