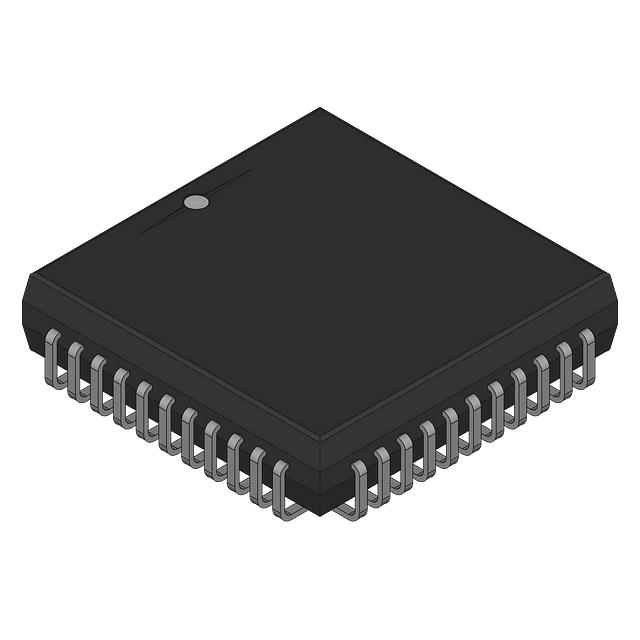

N8086-2

The N8086-2 is an 8086-series microprocessor IC from Advanced Micro Devices featuring a single 16-bit core running at 8 MHz. Designed for embedded applications, this commercial-grade device provides a 5 V I/O interface and on-package support for external bus interfaces.

Packaged in a 44-lead PLCC/LCC surface-mount package (44-PLCC / 44-LCC J-lead, 16.59 × 16.59 mm) and rated for 0 °C to 70 °C operation, the N8086-2 is suitable for a range of commercial embedded system implementations where a classic 8086 core and standard bus connectivity are required.

Key Features

• Core and Architecture: Single 8086 core, 16-bit data path providing legacy 8086 processing architecture at an 8 MHz clock rate.
• Speed: 8 MHz operating frequency suitable for designs targeting the specified clock performance.
• Power and I/O: 5 V I/O signaling compatible with standard 5 V embedded systems.
• Interfaces: Additional EBI/EMI interfaces for external bus and memory interfacing as specified for system integration.
• Package: Surface-mount 44-PLCC / 44-LCC (J‑lead) package, 16.59 × 16.59 mm, supporting compact PCB layouts and PLCC-style mounting.
• Temperature and Grade: Commercial grade with an operating temperature range of 0 °C to 70 °C.
• Environmental Compliance: RoHS compliant for environmentally constrained designs.

Typical Applications

• Embedded Systems — Integration into embedded control platforms that require a 16-bit 8086-class microprocessor core.
• Commercial Electronic Products — Use in commercial-grade devices where the specified operating temperature range and 5 V I/O are appropriate.
• Surface-Mount PCB Designs — Suited for surface-mount assembly using the 44-PLCC / 44-LCC package footprint.

Unique Advantages

• Established 8086 Core: Single 16-bit core provides known 8086 architecture behavior for designs requiring that instruction set and data width.
• Standard 5 V I/O: 5 V I/O simplifies interface compatibility with legacy 5 V peripherals and supporting circuitry.
• External Bus Support: EBI/EMI interfaces enable straightforward connectivity to external memory and bus peripherals.
• Surface-Mount PLCC Package: 44-PLCC / 44-LCC package (16.59 × 16.59 mm) supports compact surface-mount PCB implementations and established assembly processes.
• Commercial Temperature Rating: Rated 0 °C to 70 °C for standard commercial deployments.
• RoHS Compliant: Conforms to RoHS requirements for environmentally conscious product designs.

Why Choose N8086-2?

The N8086-2 from Advanced Micro Devices delivers a straightforward 8086 microprocessor solution with a single 16-bit core running at 8 MHz, standard 5 V I/O, and EBI/EMI connectivity for external bus integration. Its 44-PLCC / 44-LCC surface-mount package and commercial temperature rating make it a practical choice for embedded and commercial electronic designs that require this specific 8086-class configuration.

This part is suited to engineers and procurement teams seeking a RoHS-compliant, surface-mount 8086 processor option from a known manufacturer for use in existing 16-bit embedded designs or when implementing systems with defined 5 V I/O and external bus requirements.
