N80960SA16

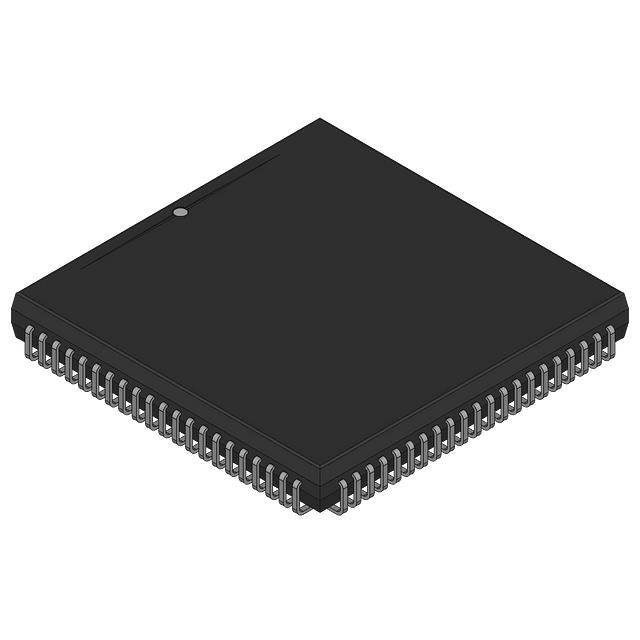

The N80960SA16 is an Intel i960 microprocessor packaged in an 84-pin PLCC for surface-mount assembly. It features a single 32-bit i960 core operating at 16 MHz and is offered as a commercial-grade embedded microprocessor.

Designed for embedded applications, the device provides a straightforward 32-bit processing option with DRAM controller support, 5 V I/O signaling, and a standard commercial operating temperature range.

Key Features

• Core  Single i960 core, 32-bit architecture providing a standardized processor core for embedded implementations.
• Performance  16 MHz operating frequency for predictable, low-frequency 32-bit processing.
• Memory Interface  Integrated DRAM controller support to interface with external DRAM devices.
• Power and I/O  5 V I/O voltage level for compatibility with 5 V embedded logic domains.
• Package and Mounting  84-LCC (J-Lead) / 84-PLCC supplier device package with a 29.31×29.31 mm footprint; surface-mount mounting type suitable for PCB assembly.
• Operational Grade  Commercial grade device with an operating temperature range of 0 °C to 85 °C.
• Graphics  No graphics acceleration—focused on general-purpose embedded processing tasks.
• Environmental Compliance  RoHS compliant, meeting common lead-free manufacturing requirements.

Typical Applications

• Embedded Systems  Use as the primary 32-bit processing element in embedded designs that require a commercial-grade i960 core.
• Commercial Electronics  Suitable for commercial electronic products that operate within 0 °C to 85 °C and use 5 V I/O signaling.
• Board-Level Integrations  Fits surface-mount board assemblies where an 84-PLCC (29.31×29.31 mm) package form factor is required.

Unique Advantages

• Proven i960 Core: Provides a single 32-bit i960 processor core for consistent architecture and software targeting.
• DRAM Controller Integration: On-chip DRAM controller support reduces external component count for memory interfacing.
• Standard 5 V I/O: Simplifies integration with existing 5 V logic systems and peripherals.
• Commercial Temperature Range: Rated 0 °C to 85 °C for deployment in commercial environments.
• Surface-Mount PLCC Packaging: 84-PLCC (29.31×29.31 mm) supplier package supports compact board layouts and standard PCB assembly processes.
• RoHS Compliant: Meets common environmental requirements for lead-free manufacturing.

Why Choose N80960SA16?

The N80960SA16 positions a single 32-bit i960 core in a compact 84-PLCC surface-mount package, offering a clear solution for commercial embedded designs that require DRAM interfacing and 5 V I/O. Its commercial temperature rating and RoHS compliance make it suitable for a range of non-automotive embedded products.

This part is appropriate for designers and procurement teams seeking a standardized i960-based microprocessor with predictable 16 MHz operation, integrated DRAM controller support, and a common PLCC form factor for board-level integration.

Request a quote or contact sales to check availability, pricing, and lead times for the N80960SA16 and to submit a purchase inquiry.
