OMAPL132EZWTA2R

The OMAPL132EZWTA2R is a single-core ARM926EJ-S 32-bit microprocessor running at 200 MHz, designed for embedded and industrial applications. It combines a general-purpose ARM core with dedicated co-processor support and a range of integrated interfaces to simplify system design for networking, audio, and general embedded control.

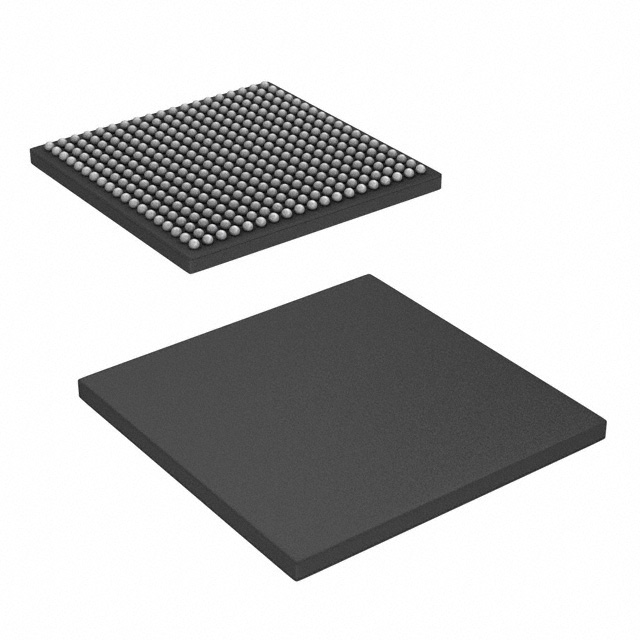

Packaged in a 361-ball NFBGA (16×16) with a 361-LFBGA case option, and rated for industrial operation from -40 °C to 105 °C, this device targets designs requiring industrial temperature range, compact surface-mount assembly, and integrated peripheral connectivity.

Key Features

• Core ARM926EJ-S single 32-bit core operating at 200 MHz for deterministic embedded processing.
• Co-processors Integrated co-processor support including signal processing C674x and system control CP15 to offload specialized tasks and accelerate processing pipelines.
• Memory Controllers Built-in LPDDR and DDR2 memory controller support to interface with common low-power and standard memory types.
• Connectivity Integrated 10/100 Mbps Ethernet interface and USB 2.0 with PHY provide standard wired networking and host/device connectivity.
• Audio / Codec Interface AC97 interface support enables direct connection to legacy audio codecs and audio peripherals.
• Package & Mounting Supplier device package: 361-NFBGA (16×16); package case listed as 361-LFBGA. Surface-mount mounting for compact PCB integration.
• Industrial Grade & Temperature Range Rated grade: Industrial with operating temperature from -40 °C to 105 °C for deployment in harsh environments.
• Compliance RoHS compliant.

Typical Applications

• Industrial Embedded Control Use as the main processing unit in industrial controllers and monitoring systems where industrial temperature range and reliable connectivity are required.
• Networking Modules Integration into compact networked devices and modules leveraging the on-chip 10/100 Mbps Ethernet and USB 2.0 + PHY.
• Audio and Voice Interfaces AC97 interface support enables audio front-end and codec interconnection for voice or simple multimedia applications.
• Compact SBCs and Appliance Controllers Suitable for single-board computers and appliance controllers that require a small BGA footprint and surface-mount assembly.

Unique Advantages

• Integrated Peripherals: On-chip Ethernet, USB 2.0 with PHY, and AC97 reduce external component count and simplify BOM.
• Versatile Memory Support: LPDDR and DDR2 controller support enables flexible memory selection for power or performance trade-offs.
• Industrial Temperature Qualification: -40 °C to 105 °C operating range supports deployment in demanding environmental conditions.
• Compact BGA Packaging: 361-ball NFBGA (16×16) packaging enables high-density, surface-mount PCB designs.
• Co-processor Offload: Dedicated signal-processing C674x co-processor support allows efficient handling of DSP tasks alongside the ARM926EJ-S core.
• RoHS Compliant: Meets RoHS requirements for environmentally compliant designs.

Why Choose OMAPL132EZWTA2R?

The OMAPL132EZWTA2R positions itself as a compact, industrial-grade embedded MPU that combines a deterministic ARM926EJ-S core with integrated connectivity and co-processor support. Its built-in Ethernet, USB 2.0 + PHY, AC97 interface, and memory controller options make it suitable for a range of embedded designs where integration, temperature resilience, and compact packaging are priorities.

Backed by Texas Instruments and supplied in a surface-mount 361-ball BGA package, this device is targeted at engineers and product teams designing industrial embedded systems, networked modules, and audio-capable controllers that require a balanced mix of processing, peripheral integration, and rugged operating range.

Request a quote or submit an inquiry to initiate procurement or evaluate OMAPL132EZWTA2R for your next embedded or industrial design.
