OMAPL132EZWT2

The OMAPL132EZWT2 is a single‑core ARM926EJ‑S microprocessor from the OMAP‑L132 series, clocked at 200 MHz and delivered in a 361‑NFBGA (16×16) package. Designed for embedded applications, it combines a 32‑bit ARM core with integrated system interfaces and memory controllers to simplify system design and integration.

With on‑chip support for common connectivity and memory types, the device targets commercial embedded systems that require a compact, RoHS‑compliant processor solution operating across a 0 °C to 90 °C temperature range.

Key Features

• Processor Core ARM926EJ‑S single core, 32‑bit architecture running at 200 MHz for general purpose embedded control and processing.
• Coprocessors Includes signal processing coprocessor (C674x) and system control coprocessor (CP15) to offload specialized tasks and system management.
• Memory Interfaces Integrated controllers for LPDDR and DDR2 memory technologies to support common embedded memory configurations.
• Connectivity On‑chip 10/100 Mbps Ethernet interface (1) and USB 2.0 with PHY (1) provide standard wired networking and host/device connectivity.
• Audio Interface AC97 interface for audio codec integration and legacy audio subsystem support.

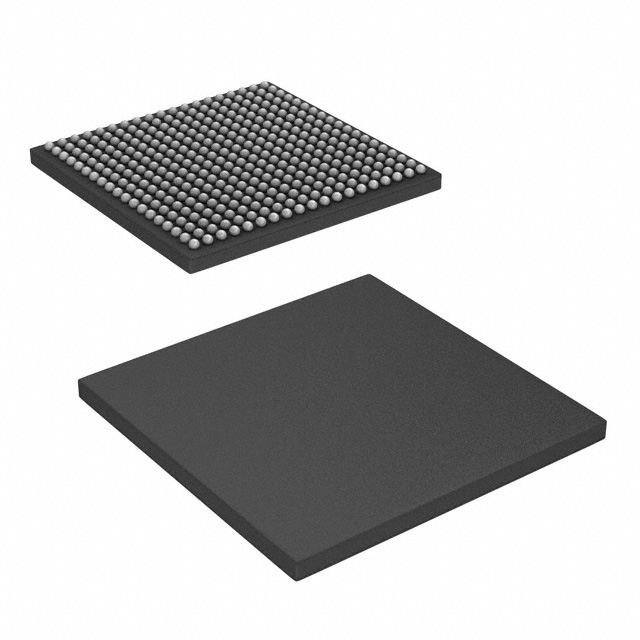

• Package & Mounting 361‑LFBGA package case with supplier device package 361‑NFBGA (16×16) for compact surface‑mount assembly.
• Grade & Temperature Commercial grade device rated for operation from 0 °C to 90 °C.
• Environmental Compliance RoHS compliant to meet common environmental and manufacturing requirements.

Typical Applications

• Embedded Control Systems — Use the ARM926EJ‑S core for application control, task coordination, and system management in compact embedded designs.
• Networking Devices — Integrated 10/100 Mbps Ethernet and USB 2.0 + PHY enable wired connectivity for networked products and communication gateways.
• Audio Subsystems — AC97 interface and signal processing coprocessor support audio codec control and basic audio processing tasks.
• Industrial and Commercial Equipment — Commercial temperature rating and robust packaging suit a range of commercial instruments and control units.

Unique Advantages

• Single‑chip integration: Combines a 200 MHz ARM926EJ‑S core with coprocessors, memory controllers and standard I/O to reduce board-level complexity.
• Flexible memory support: On‑chip LPDDR and DDR2 controllers enable designers to choose memory types that match performance and cost targets.
• Standard wired interfaces: Built‑in Ethernet and USB 2.0 + PHY simplify connectivity implementation without adding external bridge components.
• Compact BGA footprint: 361‑NFBGA (16×16) packaging supports high‑density PCB layouts for space-constrained designs.
• Commercial temperature and RoHS compliance: Rated 0 °C to 90 °C and RoHS compliant for broad commercial deployment and regulatory alignment.

Why Choose OMAPL132EZWT2?

OMAPL132EZWT2 positions itself as a focused embedded microprocessor that balances integration and practical performance. Its ARM926EJ‑S core at 200 MHz, combined with dedicated coprocessors and onboard memory and connectivity interfaces, helps simplify system architecture and reduce external component count.

This device is well suited for designers targeting commercial embedded applications that require standard Ethernet and USB connectivity, audio interfacing, and support for LPDDR/DDR2 memory configurations, all in a compact BGA package from Texas Instruments' OMAP‑L132 series.

Request a quote or submit an inquiry to obtain pricing, availability and lead‑time information for the OMAPL132EZWT2.
