OMAPL132BZWT2

The OMAPL132BZWT2 is an ARM926EJ-S microprocessor IC from Texas Instruments' OMAP-L132 series. It provides single-core, 32-bit processing at 200 MHz in a compact 361-NFBGA (16×16) surface-mount package for embedded applications.

Designed for embedded and commercial systems, the device integrates interface support such as 10/100 Mbps Ethernet, USB 2.0 with PHY, AC97 audio, and memory controllers for LPDDR and DDR2. Additional DSP and system-control coprocesor support enables offloading of signal-processing tasks while consolidating system I/O.

Key Features

• Core  ARM926EJ-S single-core 32-bit microprocessor running at 200 MHz, suitable for deterministic embedded control and communication tasks.
• Memory Support  Integrated controllers compatible with LPDDR and DDR2 memory technologies to support flexible system memory architectures.
• Co-processors  Includes signal-processing coprocesor support (C674x) and system control (CP15) to accelerate targeted workloads and system management functions.
• Connectivity  On-chip 10/100 Mbps Ethernet and USB 2.0 with PHY provide common wired networking and peripheral connectivity options for embedded designs.
• Audio Interface  AC97 support enables integration with legacy and standard audio subsystems in embedded products.

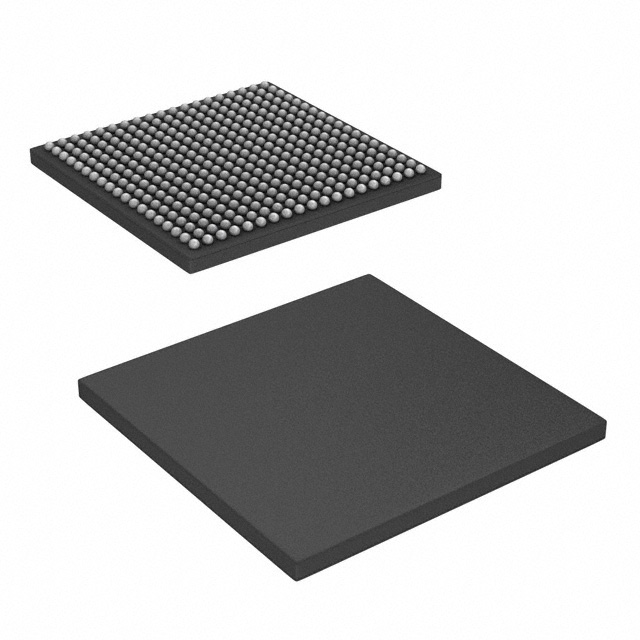

• Package & Mounting  Supplied in a 361-NFBGA (16×16) / 361-LFBGA package for surface-mount assembly, enabling a compact board footprint.
• Operating Range & Grade  Commercial-grade device with an operating temperature range of 0 °C to 90 °C and RoHS compliance for lead-free assembly.

Typical Applications

• Embedded Control Systems  Single-core ARM926EJ-S processing and integrated I/O make the device suitable for general embedded control and monitoring tasks.
• Networking & Communication Endpoints  Built-in 10/100 Mbps Ethernet and USB 2.0 + PHY support use in networked gateways, protocol bridges, and communication interfaces.
• Audio-Enabled Devices  AC97 audio interface combined with DSP coprocesor support enables audio processing and codec interfacing in commercial products.
• Compact Commercial Electronics  The 361-NFBGA package and DDR/LPDDR memory support target space-constrained commercial embedded designs requiring standard interfaces.

Unique Advantages

• Integrated Connectivity: Consolidates Ethernet, USB 2.0 + PHY, and AC97 audio to reduce external component count and simplify PCB design.
• DSP Offload Capability: C674x signal-processing coprocesor support allows compute-intensive tasks to be accelerated without adding external DSP ICs.
• Flexible Memory Options: Support for LPDDR and DDR2 memory controllers enables designers to choose memory technology that fits cost and performance targets.
• Compact Surface-Mount Package: 361-NFBGA (16×16) packaging minimizes board area for dense embedded layouts.
• Commercial Temperature and Compliance: 0 °C to 90 °C operating range and RoHS compliance align the part with common commercial production requirements.

Why Choose OMAPL132BZWT2?

The OMAPL132BZWT2 pairs an ARM926EJ-S 200 MHz core with integrated connectivity and coprocesor support to deliver a balanced, compact solution for commercial embedded products. Its combination of Ethernet, USB with PHY, AC97, and memory-controller support targets designs that need moderate processing plus integrated I/O without excessive external components.

Manufactured by Texas Instruments and offered in a 361-NFBGA surface-mount package, the device is suited for teams building commercial embedded systems that prioritize integration, predictable single-core performance, and standard interface support for a streamlined development path.

Request a quote or submit an inquiry to receive pricing, availability, and lead-time information for the OMAPL132BZWT2.
