OMAPL132BZWTA2E

The OMAPL132BZWTA2E is an ARM926EJ-S microprocessor IC from the OMAP-L132 series by Texas Instruments. It features a single 32-bit core running at 200 MHz and integrates communications and memory interfaces targeted at embedded and industrial applications.

With on-chip support for Ethernet, USB 2.0 with PHY, LPDDR/DDR2 memory controllers and AC97 audio interfacing, this device delivers a compact, industrial-grade processing platform suitable for networked and control-oriented designs.

Key Features

• Core and Performance ARM926EJ-S single 32-bit core operating at 200 MHz, providing deterministic embedded processing.
• Memory Interfaces Built-in controllers for LPDDR and DDR2 memory types to support a range of embedded memory configurations.
• Connectivity Integrated 10/100 Mbps Ethernet interface and one USB 2.0 port with PHY for networked and peripheral connectivity.
• Co-processors and System Control Includes signal-processing co-processor support (C674x) and system control coprocessor (CP15) for offloading specialized tasks.
• Audio and Additional I/O AC97 interface for audio subsystem integration.

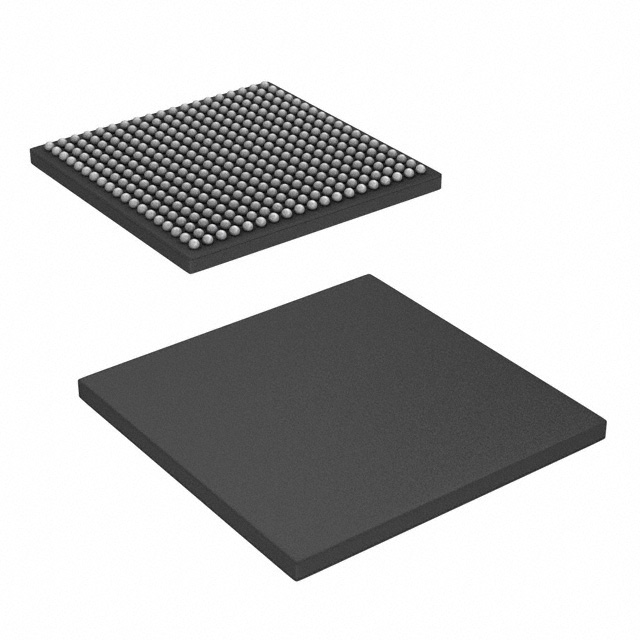

• Package and Mounting Supplied in a 361-NFBGA (16 × 16 mm) surface-mount package suitable for compact, high-density PCB layouts.
• Industrial Reliability Industrial-grade device rated for operation from −40 °C to 105 °C and RoHS compliant for manufacturing requirements.

Typical Applications

• Industrial Control Integration of Ethernet and robust temperature rating make this device suitable for control and monitoring systems in industrial environments.
• Networked Embedded Gateways 10/100 Mbps Ethernet and USB 2.0 with PHY support gateway and edge-node designs requiring wired connectivity.
• Audio and Voice Interfaces AC97 support enables inclusion in embedded audio devices, voice gateways, and telephony interface modules.
• Memory-Intensive Embedded Systems LPDDR and DDR2 memory controller support accommodates applications that require flexible memory configurations.

Unique Advantages

• Integrated Connectivity On-chip Ethernet and USB 2.0 with PHY reduce external interface components and simplify board design.
• Flexible Memory Support Native LPDDR and DDR2 controllers allow designers to choose memory types that match performance and cost targets.
• Industrial Temperature Rating −40 °C to 105 °C operating range supports deployments in demanding environmental conditions.
• Compact BGA Package 361-NFBGA (16 × 16 mm) package enables high-density PCB layouts while maintaining surface-mount assembly workflows.
• Specialized Co-processing Support for signal-processing co-processor (C674x) and CP15 system control offers architecture for task offload and system management.
• RoHS Compliant Conforms to RoHS requirements for regulatory and manufacturing compatibility.

Why Choose OMAPL132BZWTA2E?

The OMAPL132BZWTA2E combines a proven ARM926EJ-S core at 200 MHz with integrated Ethernet, USB, memory controllers and audio interfacing, packaged for compact, industrial designs. Its feature set and temperature rating make it a practical choice for engineers building embedded systems that require deterministic processing and reliable connectivity.

Manufactured by Texas Instruments as part of the OMAP-L132 series, this device is suited for applications that need a balance of integration, interface flexibility and industrial robustness while maintaining a compact board footprint.

Request a quote or submit your RFQ to evaluate OMAPL132BZWTA2E for your next embedded or industrial design project.
