OMAPL132BZWTA2

The OMAPL132BZWTA2 is an ARM926EJ-S 32‑bit microprocessor IC operating at 200 MHz, designed for embedded applications. It integrates a single CPU core with on-chip support for common interfaces and memory controllers, making it suitable for compact, board‑level embedded designs.

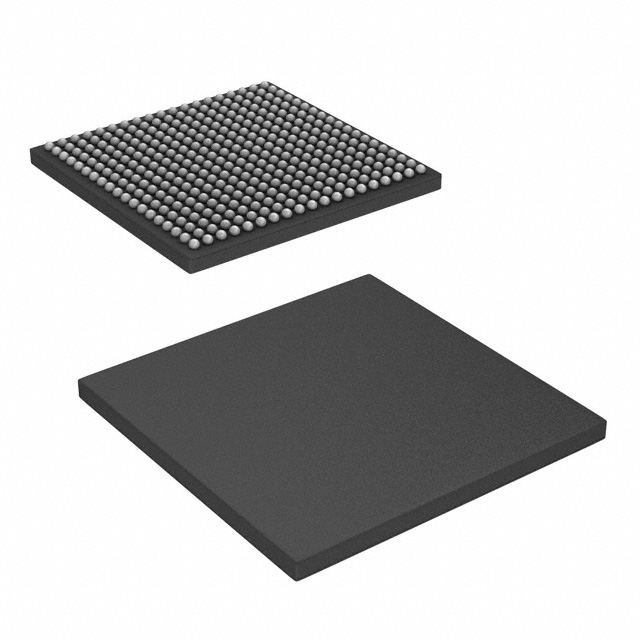

Manufactured by Texas Instruments and offered in a 361‑NFBGA (16×16) surface‑mount package, this industrial‑grade device provides 10/100Mbps Ethernet, USB 2.0 with PHY, AC97 audio interface, and support for LPDDR and DDR2 memory, with an operating temperature range of −40 °C to 105 °C.

Key Features

• Core & Architecture — ARM926EJ‑S single core, 32‑bit CPU running at 200 MHz for deterministic embedded processing.
• Co‑processors — Includes signal processing co‑processor C674x and system control CP15 to offload specific compute and system tasks.
• Memory Support — Integrated controllers for LPDDR and DDR2 memory types to support a range of embedded DDR configurations.
• Ethernet — 10/100 Mbps Ethernet interface (1) for wired network connectivity.
• USB — USB 2.0 with integrated PHY (1) for host/device connectivity and peripheral interfacing.
• Audio Interface — AC97 interface for legacy audio and voice I/O integration.
• Package & Mounting — 361‑LFBGA / 361‑NFBGA (16×16) surface‑mount package for compact board layouts.
• Industrial Temperature Range — Rated for operation from −40 °C to 105 °C for industrial environments.
• Graphics — No graphics acceleration.
• Regulatory — RoHS compliant.

Typical Applications

• Industrial Control & Automation — Industrial temperature rating and integrated interfaces suit factory automation controllers and equipment-level embedded control.
• Embedded Networking & Gateways — On‑chip 10/100 Ethernet and USB 2.0 enable compact networked devices and protocol gateways.
• Audio and Voice Interfaces — AC97 support allows integration into audio and voice endpoint designs requiring legacy codec interfaces.
• Board‑level OEM Systems — Compact BGA package and DDR memory support make the device well matched for OEM embedded boards and modules.

Unique Advantages

• Integrated Connectivity: Built‑in Ethernet, USB 2.0 with PHY, and AC97 reduce external interface components and simplify BOM.
• Co‑processor Support: On‑chip C674x signal processing and CP15 system control provide dedicated resources for specialized tasks.
• Flexible Memory Options: Support for LPDDR and DDR2 memory controllers enables designers to choose memory technology that matches cost and performance targets.
• Industrial Reliability: −40 °C to 105 °C operating range and industrial grade classification support deployment in harsh environments.
• Compact, Surface‑Mount Package: 361‑NFBGA (16×16) package enables high‑density board designs while maintaining robust mounting.
• Standards Compliance: RoHS compliance aligns with modern assembly and environmental requirements.

Why Choose OMAPL132BZWTA2?

OMAPL132BZWTA2 combines a single ARM926EJ‑S core at 200 MHz with integrated networking, USB, and audio interfaces plus DDR memory controllers, offering a compact, integrated platform for embedded designs. Its industrial temperature rating and RoHS compliance make it appropriate for long‑lifecycle OEM and industrial applications where board space and interface integration matter.

As a Texas Instruments device in the OMAP‑L132 family, this part is positioned for engineers and product teams who need deterministic 32‑bit processing with essential peripheral integration and a compact BGA footprint for production‑grade embedded hardware.

Request a quote or submit a purchase inquiry to receive pricing and availability for OMAPL132BZWTA2.
