OMAPL132DZWTA2

The OMAPL132DZWTA2 is an ARM926EJ-S based microprocessor IC featuring a single 32‑bit core running at 200 MHz. It is supplied in a compact 361‑ball NFBGA (16×16) package and is targeted at embedded microprocessor applications in industrial environments.

Designed with on‑chip connectivity and memory interface options, the device provides integrated USB 2.0 + PHY and 10/100 Mbps Ethernet plus LPDDR and DDR2 memory controller support, making it suitable for networked and industrial embedded systems that require deterministic processing and extended temperature operation.

Key Features

• Core  ARM926EJ-S single 32‑bit core running at 200 MHz for control and application processing.
• Co‑processors  Includes signal processing co‑processor C674x and system control CP15 to support offloaded processing tasks.
• Memory Support  Integrated memory controllers supporting LPDDR and DDR2 memory technologies.
• Connectivity  Built‑in 10/100 Mbps Ethernet (1) and USB 2.0 with PHY (1) for wired networking and peripheral interfaces.
• Audio/Peripheral Interface  AC97 interface available for audio and codec interconnection.
• Graphics  No graphics acceleration on this device.

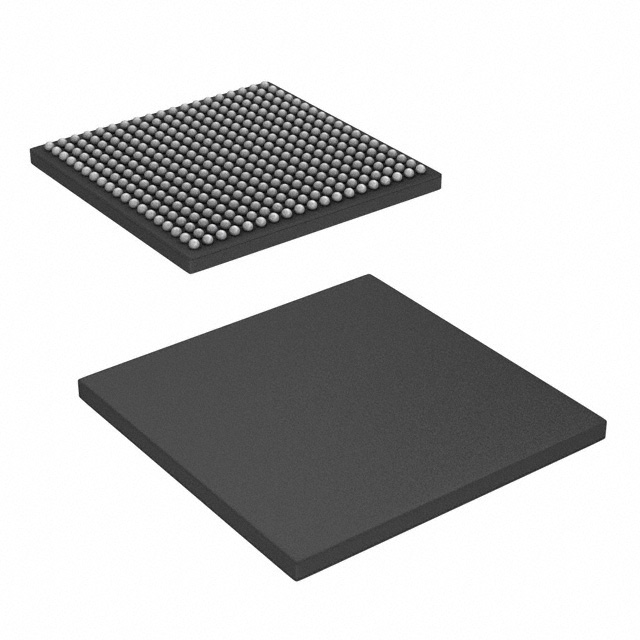

• Package & Mounting  Supplied in a 361‑NFBGA (16×16) package; package case recorded as 361‑LFBGA; surface mount device.
• Operating Range  Industrial grade device rated for operation from −40 °C to 105 °C.
• Environmental Compliance  RoHS compliant.

Typical Applications

• Industrial Control  Embedded controllers where industrial temperature range and deterministic single‑core processing are required.
• Networked Embedded Devices  Gateways, protocol bridges or appliances that need integrated 10/100 Ethernet and USB connectivity.
• Audio and Voice Endpoints  Systems leveraging the AC97 interface and signal processing co‑processor for audio codec and voice processing tasks.
• Embedded Communications Modules  Compact modules requiring a small BGA footprint with integrated memory controller support for LPDDR/DDR2.

Unique Advantages

• Integrated wired connectivity: On‑chip 10/100 Mbps Ethernet and USB 2.0 + PHY simplify interfacing to networks and peripherals.
• DSP co‑processing available: C674x signal processing co‑processor enables offloading of compute‑intensive signal tasks from the main ARM926EJ‑S core.
• Flexible memory options: Support for LPDDR and DDR2 allows designers to choose memory types that match performance and power targets.
• Industrial temperature rating: −40 °C to 105 °C operation addresses a wide range of harsh‑environment applications.
• Compact BGA package: 361‑ball NFBGA (16×16) supplier package provides a small footprint for space‑constrained designs.
• RoHS compliant: Environmentally compliant manufacturing support for modern supply chains.

Why Choose OMAPL132DZWTA2?

OMAPL132DZWTA2 combines a proven ARM926EJ‑S core with integrated connectivity and memory controller options to deliver a compact, industrial‑grade processing solution for embedded designs. Its single‑core architecture at 200 MHz, along with DSP co‑processing and AC97 support, makes it appropriate for networked control, audio processing, and communication endpoint applications.

The device is positioned for engineers and procurement teams seeking a reliable, RoHS‑compliant microprocessor in a small BGA package with industrial temperature capability and built‑in Ethernet and USB interfaces, enabling robust integration into long‑lifecycle embedded systems.

Request a quote or submit an inquiry to check availability, lead times, and pricing for OMAPL132DZWTA2. Our team can provide further technical details and support for your design evaluation.
