OMAP5912ZZGR

The OMAP5912ZZGR is an industrial-grade embedded microprocessor from Texas Instruments' OMAP5910 series. It integrates a single ARM926EJ-S 32-bit core running at 192 MHz and is targeted at embedded systems requiring a compact, rugged processor solution.

Designed for embedded and industrial applications, the device combines processor capability with on-chip controllers and interfaces—enabling networked control, user interfaces, and secure processing in constrained-system designs.

Key Features

• Core ARM926EJ-S single 32-bit core clocked at 192 MHz for deterministic embedded processing.
• Memory Interface LPDDR memory controller and access to on-chip SRAM as described in OMAP5910 documentation.
• Peripheral Interfaces Integrated 10/100 Mbps Ethernet controller (1), multiple USB ports (USB 1.1 and USB 1.x), and additional 1-Wire/HDQ support for sensor and peripheral connectivity.
• Display and HMI On-chip controllers for keyboard and LCD panel interfaces to support human‑machine interfaces and display control.
• Co-Processors Dedicated signal-processing and system-control co-processors (C55x and CP15) to offload specialized tasks from the main CPU.
• Security Integrated cryptography support and a hardware random number generator for secure processing needs.

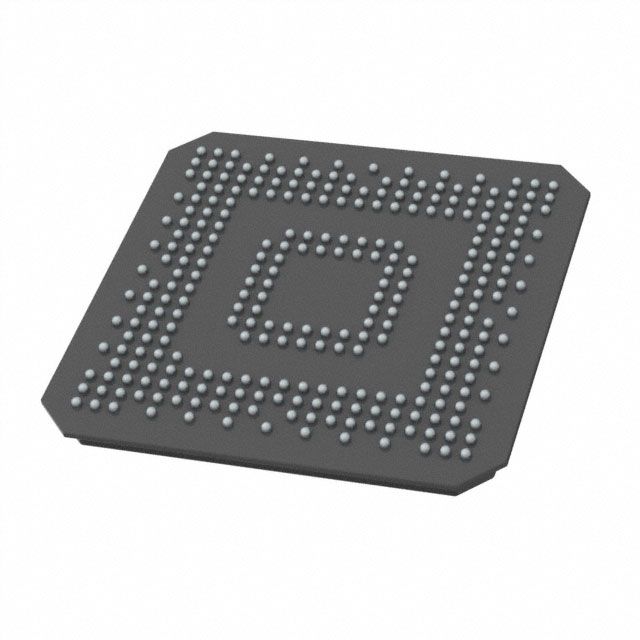

• Package & Mounting 289-ball TFBGA package (289-BGA MICROSTAR 12×12) in a surface-mount form factor suitable for compact board designs.
• Operating Range Industrial-grade operating temperature from −40 °C to 85 °C.
• Graphics No dedicated graphics acceleration—suitable for systems where display control is limited to LCD/keyboard interfaces rather than GPU-accelerated graphics.

Typical Applications

• Industrial Control — Use the industrial temperature range and Ethernet connectivity for networked controllers and automated equipment interfaces.
• Human–Machine Interfaces (HMIs) — Leverage the LCD and keyboard controllers to drive operator panels and embedded displays.
• Embedded Communications — Combine the ARM core with integrated Ethernet and USB ports for protocol gateways, device controllers, and communication modules.
• Sensor Nodes & Gateways — 1-Wire/HDQ support and hardware security features make the device suitable for secure sensor interfacing and local aggregation.

Unique Advantages

• Tightly Integrated Embedded CPU: Single ARM926EJ-S core at 192 MHz provides a focused, deterministic processing element for embedded workloads.
• Broad Peripheral Set: On-chip Ethernet, USB, LCD and keyboard controllers reduce external component count and simplify board design.
• Industrial Reliability: Rated for −40 °C to 85 °C and listed as industrial grade for deployments requiring extended temperature operation.
• Security Building Blocks: On-chip cryptography and a random number generator enable hardware-based security functions without additional components.
• Compact Surface-Mount Package: 289-ball TFBGA (MicroStar 12×12) provides a high-density footprint for space-constrained PCBs.
• Series-Level Documentation: Part of the OMAP5910 series with detailed device documentation available to guide system integration and register-level programming.

Why Choose OMAP5912ZZGR?

The OMAP5912ZZGR positions itself as a compact, industrial-grade microprocessor for embedded designs that require a single 32-bit ARM926EJ-S core combined with integrated peripheral controllers and hardware security. Its mix of Ethernet, USB, display interfaces, and co-processor support enables straightforward system integration for networked and HMI-focused applications.

Designed and documented within the OMAP5910 series from Texas Instruments, this device is appropriate for engineers seeking a well-specified processor option that balances integration, package density, and industrial operating capability.

Request a quote or submit a purchase inquiry to get pricing and availability for the OMAP5912ZZGR today.
