OMAPL137BPTPH

The OMAPL137BPTPH is an ARM926EJ-S based microprocessor in the OMAP-L13x series from Texas Instruments. It is a single-core, 32-bit MPU running at 300 MHz, targeted for embedded applications that require integrated connectivity and system control functions.

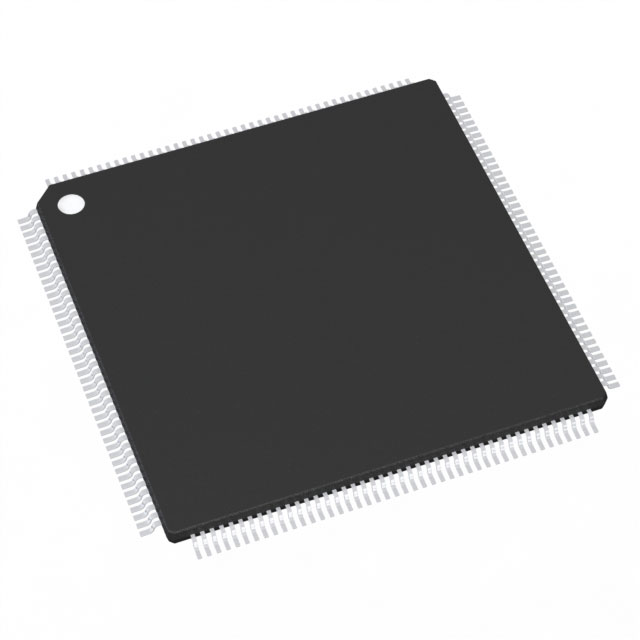

Designed for embedded systems, this device integrates communication interfaces, SDRAM support, and security features in a 176-HLQFP (24×24) exposed-pad package, and is offered with an extended operating temperature range for robust deployments.

Key Features

• Core ARM926EJ-S single-core, 32-bit processor operating at 300 MHz for deterministic embedded control and processing.
• Co‑processors Integrated co-processor support including Signal Processing (C674x) and System Control (CP15) to offload specialized tasks.
• Memory and Display SDRAM controller for external memory interfacing and an LCD display interface controller for straightforward user-interface integration.
• Connectivity Built-in 10/100 Mbps Ethernet (1), SATA 3 Gbps (1), USB 1.1 + PHY (1) and USB 2.0 + PHY (1) to support networking, storage, and USB peripherals.
• Additional Interfaces Host Port Interface (HPI) for parallel data transfers and system-level communication.
• Security Boot security and cryptography features to support secure system startup and data protection workflows.
• Graphics No dedicated graphics acceleration—suitable for applications that rely on CPU-driven graphics or simple LCD control.
• Package and Mounting 176-LQFP exposed pad (supplier package: 176-HLQFP 24×24) in a surface-mount form factor for compact board integration.
• Operating Range and Compliance Rated for operation from −55 °C to 175 °C and RoHS compliant for broad environmental deployment.

Typical Applications

• Embedded Networking Appliances Use the integrated 10/100 Ethernet and USB interfaces for networked control and peripheral connectivity.
• Storage and Gateway Devices SATA 3 Gbps plus USB and Ethernet support make this MPU suitable for compact storage gateways and data bridge applications.
• Industrial Control and Instrumentation Extended temperature rating and SDRAM support enable deployment in industrial controllers and instrumentation requiring robust operation.
• Human‑Machine Interfaces (HMIs) LCD controller and HPI support allow implementation of operator displays and panel control systems.

Unique Advantages

• Integrated connectivity: Ethernet, SATA and USB PHYs onboard reduce external component count for networking and storage designs.
• Security-ready boot and cryptography: Built-in features support secure boot and cryptographic functions to protect system integrity.
• Deterministic single-core performance: ARM926EJ-S at 300 MHz provides predictable processing for control-oriented embedded tasks.
• Industrial temperature capability: −55 °C to 175 °C rating supports harsh-environment applications without additional thermal qualification.
• Compact exposed‑pad package: 176-HLQFP (24×24) surface-mount package balances board density and thermal performance.
• RoHS compliant: Environmentally compliant manufacturing and materials.
