OMAPL138CZWTA3RW

The OMAPL138CZWTA3RW is an embedded microprocessor featuring an ARM926EJ-S 32-bit core running at 375 MHz paired with a C674x signal-processing co-processor. Designed for industrial embedded systems, it delivers a compact, integrated platform for applications that require real-time control, signal processing and broad peripheral connectivity.

With on-chip memory controllers, display and high-speed interfaces plus hardware security features, the device targets industrial and embedded designs that benefit from a combination of processing, I/O integration and extended temperature operation.

Key Features

• Processor Core ARM926EJ-S 32-bit core operating at 375 MHz, suitable for embedded control and application processing.
• Signal-Processing Co-Processor C674x DSP listed as the co-processor for signal-processing tasks, enabling dedicated processing for compute-intensive algorithms.
• Memory and Memory Controllers Includes SDRAM controller and shared on-chip RAM resources referenced in the device family information to support program and data storage.
• Storage & Connectivity Integrated 10/100 Mbps Ethernet, SATA 3 Gbps, USB 1.1 and USB 2.0 with PHYs provide flexible wired connectivity and storage interfaces.
• Display and Host Interfaces On-chip LCD controller and HPI (Host Port Interface) for display and host communication integration.
• Security Features Boot security and cryptography capabilities to support secure boot and data protection workflows.

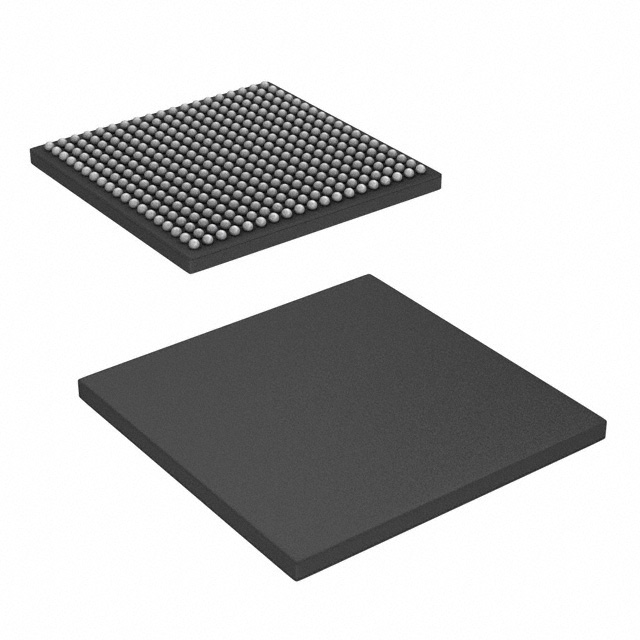

• Package & Mounting 361-ball NFBGA (16 × 16 mm) surface-mount package for compact board-level integration.
• Industrial Temperature Range Rated for operation from −40 °C to 105 °C, making it suitable for industrial environments.
• Standards & Compliance RoHS compliant, supporting environmentally conscious manufacturing and assembly processes.

Typical Applications

• Industrial Control — Use the ARM core and C674x co-processor for real-time control, sensor fusion and deterministic processing in factory automation equipment.
• Networking & Communication Gateways — Integrated Ethernet, USB and SATA interfaces enable embedded network appliances and protocol gateways with local storage.
• Storage and Media Appliances — SATA 3 Gbps and USB host capabilities support storage subsystems and embedded media devices requiring local or attached storage.
• Human-Machine Interfaces (HMI) — The LCD controller and host interface options support operator displays and control panels in industrial systems.

Unique Advantages

• Integrated Processing and DSP: ARM926EJ-S core together with a C674x signal-processing co-processor consolidates control and algorithmic workloads on a single device, reducing system complexity.
• Broad On-Chip Connectivity: Built-in Ethernet, SATA and USB PHYs lower BOM and simplify board-level design for connected embedded products.
• Industrial Reliability: −40 °C to 105 °C operating range and a robust BGA package support deployment in demanding environmental conditions.
• Security-Ready: Hardware boot security and cryptography features help protect firmware integrity and enable secure system boot processes.
• Compact Package: 361-ball NFBGA (16 × 16 mm) package offers a small footprint for space-constrained embedded designs.
• RoHS Compliant: Facilitates regulatory compliance for environmentally conscious product development.

Why Choose OMAPL138CZWTA3RW?

The OMAPL138CZWTA3RW combines a 375 MHz ARM926EJ-S core with a C674x signal-processing co-processor and a suite of integrated interfaces to deliver a compact, connected platform for industrial embedded designs. Its mix of processing, security features and peripheral integration reduces component count and simplifies system architecture for applications that require both control and signal-processing capabilities.

This device is well suited for designers building ruggedized, connectivity-focused equipment where industrial temperature operation, secure boot/cryptography features and on-board storage/network interfaces are required. The combination of performance, integration and industry-grade specifications supports long-term deployment and maintainable designs.

Request a quote or submit an inquiry to receive pricing and availability for the OMAPL138CZWTA3RW and discuss supply options for your design.
