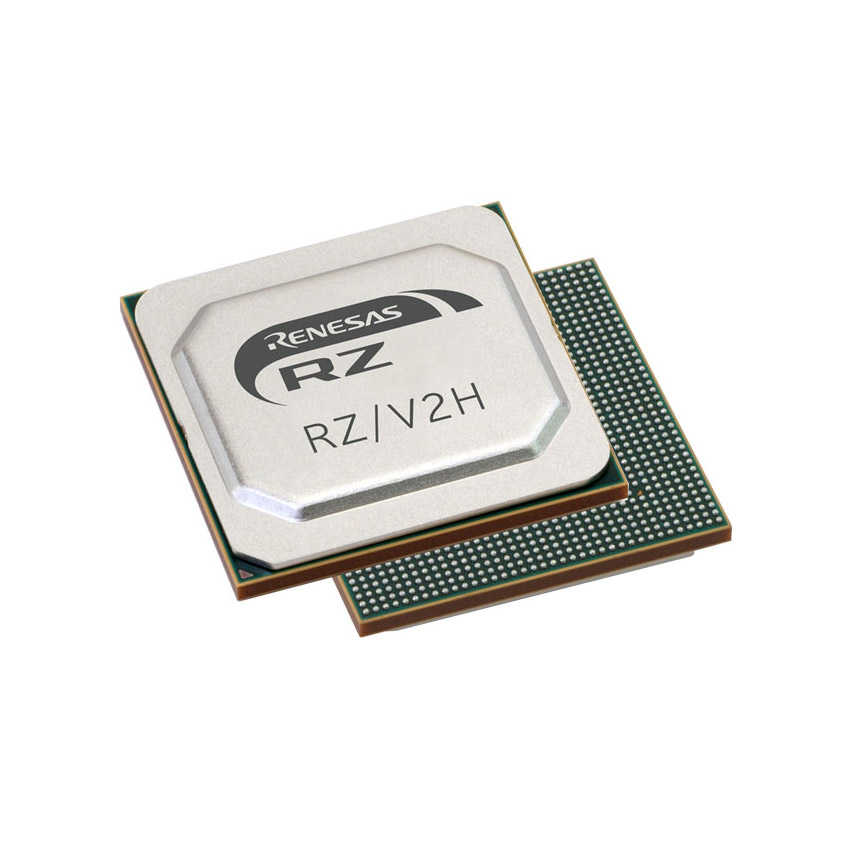

R9A09G057H48GBG#AC0

The R9A09G057H48GBG#AC0 is a microprocessor IC from Renesas' R9A09G057 series designed for embedded and industrial applications. It features an ARM® Cortex®-A53 core architecture operating up to 1.8 GHz and a 2‑core, 64‑bit configuration.

Engineered for connected, display‑centric embedded systems, this industrial‑qualified device combines multimedia processing, secure cryptography, and a broad set of I/O to support imaging, display and networked use cases across harsh operating environments.

Key Features

• CPU  ARM® Cortex®‑A53 cores with a 2‑core, 64‑bit configuration running up to 1.8 GHz, delivering compute capacity for embedded applications.
• Multimedia & DSP  Integrated multimedia co‑processors and NEON™ SIMD provide acceleration for media processing and signal workloads.
• Memory Support  LPDDR4 memory controller for modern, high‑bandwidth system memory interface.
• Display Interfaces  Supports DP, HDMI and LCD display interfaces to drive a variety of human‑machine interfaces and display panels.
• Connectivity  Includes one Gigabit Ethernet port (GbE) and one USB 3.1 port for high‑speed wired networking and peripheral connectivity.
• Security  Hardware security features include AES, ARC4, RSA, SHA‑224, SHA‑256 and a TRNG to support encrypted storage and secure boot scenarios.
• Package & Mounting  841‑FBGA supplier device package (15×15) with surface mount compatibility for compact board designs.
• Industrial Qualification & Temperature  Industrial qualification with an operating temperature range of −40 °C to 125 °C for robust field deployment.
• Compliance  RoHS compliant, meeting common environmental requirements for electronic components.

Typical Applications

• Industrial Control & Automation  Use the device for embedded controllers and operator panels where industrial temperature range and secure connectivity are required.
• Human‑Machine Interfaces (HMI)  DP, HDMI and LCD support combined with LPDDR4 memory and multimedia acceleration make it suitable for rich graphical displays and touch panels.
• Imaging & Video Systems  Named for ISP and GPU capabilities, it fits image processing and video playback/streaming applications needing on‑board multimedia processing and security.
• Networked Embedded Devices  GbE and USB 3.1 interfaces enable high‑speed data transfer and peripheral connectivity for edge devices and appliances.

Unique Advantages

• Integrated Multimedia Acceleration: NEON SIMD and multimedia co‑processors reduce external accelerator requirements and simplify multimedia system design.
• Comprehensive Security Suite: On‑chip AES, ARC4, RSA, SHA‑224, SHA‑256 and TRNG support secure communications, authentication and cryptographic functions in hardware.
• Industrial‑Grade Thermal Range: −40 °C to 125 °C operating range supports deployment in demanding industrial environments.
• Versatile Display & I/O: Multiple display interfaces plus GbE and USB 3.1 provide flexible options for HMI, video and networked applications.
• Compact, SMT‑Ready Package: 841‑FBGA (15×15) package supports space‑constrained board layouts while enabling surface‑mount assembly.
• Standards‑Oriented Memory Interface: LPDDR4 controller enables high bandwidth system memory for responsive multimedia and data processing.

Why Choose R9A09G057H48GBG#AC0?

The R9A09G057H48GBG#AC0 positions itself as a capable, industrial‑qualified microprocessor for embedded systems that demand multimedia processing, secure cryptography and robust connectivity. Its ARM® Cortex®‑A53 2‑core, 64‑bit architecture at up to 1.8 GHz, combined with LPDDR4 support and dedicated multimedia/NEON acceleration, provides a balanced platform for display‑centric and imaging applications.

Manufactured by Renesas and delivered in an 841‑FBGA (15×15) surface‑mount package, this device is suited to designs requiring industrial temperature performance, hardware security primitives and multiple high‑speed interfaces. It offers system designers a focused set of capabilities for scalable, long‑lived embedded products.

Request a quote or submit an inquiry for R9A09G057H48GBG#AC0 to discuss pricing, lead times and availability.
