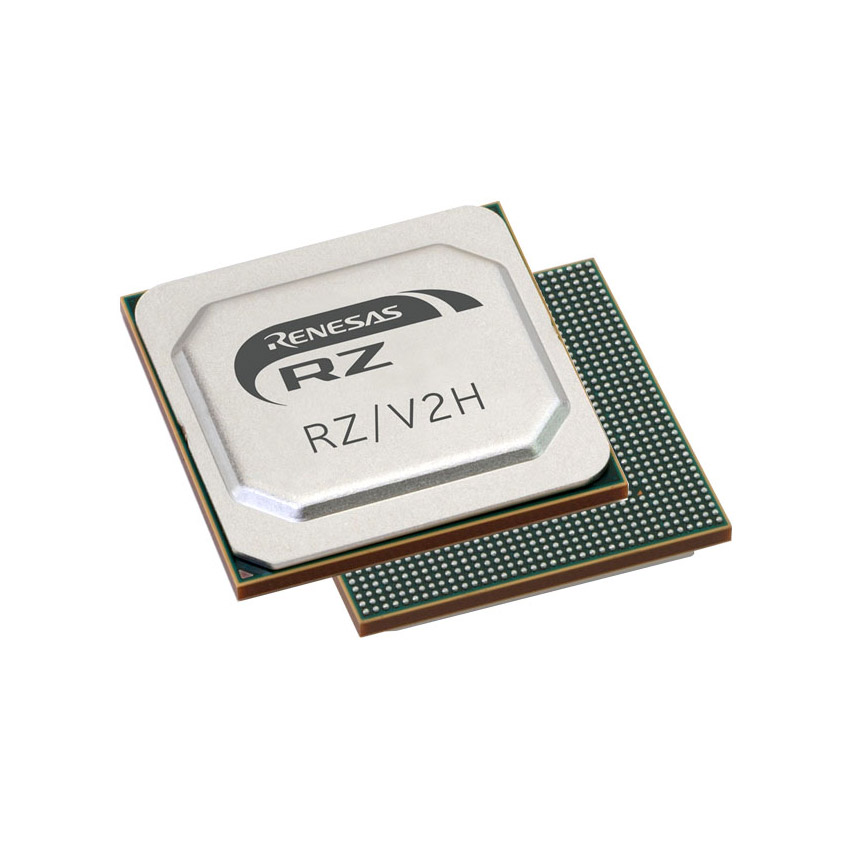

R9A09G057H48GBG#BC0

The R9A09G057H48GBG#BC0 is an industrial-grade microprocessor in Renesas' R9A09G057 series. It is built around an ARM® Cortex®-A53 core architecture and delivers 64-bit processing capability at up to 1.8 GHz across a 2‑core configuration.

Designed for embedded industrial applications that require multimedia processing, secure operations and robust I/O integration, this device combines LPDDR4 memory support, multiple display interfaces and a hardware security suite to address demanding embedded system requirements.

Key Features

• CPU Core — ARM® Cortex®-A53 architecture with a 2‑core, 64‑bit configuration operating up to 1.8 GHz.
• Multimedia Acceleration — Includes NEON™ SIMD and multimedia co-processor support to accelerate media and signal-processing tasks.
• Memory — LPDDR4 memory controller support for high-bandwidth system memory.
• Display Interfaces — Integrated controllers for DisplayPort (DP), HDMI and LCD panels to support rich graphical user interfaces and video output.
• High-Speed I/O — Single Gigabit Ethernet (GbE) port and one USB 3.1 port for networking and high-throughput peripheral connectivity.
• Security — Built-in cryptographic engines including AES, ARC4, RSA, SHA-224, SHA-256 and a True Random Number Generator (TRNG) for hardware-based security features.
• Package & Mounting — Supplied in an 841‑FBGA (15×15) package optimized for surface-mount PCB assembly.
• Industrial Qualification & Temperature Range — Qualified for industrial applications with an operating temperature range of −40 °C to 125 °C.
• Regulatory — RoHS compliant.

Typical Applications

• Industrial Embedded Systems — Use in controllers and edge devices that require industrial temperature operation and robust processing capability.
• Human‑Machine Interfaces (HMI) — Drive rich graphical displays and video output using DP, HDMI and LCD interfaces for operator panels and kiosks.
• Secure Edge Computing — Hardware cryptography and TRNG support secure boot, encryption and authentication functions at the edge.
• Networked Devices — Integrate GbE and USB 3.1 connectivity for networked sensors, gateways and peripheral-rich embedded products.

Unique Advantages

• Balanced Performance — 1.8 GHz operation on a 64‑bit dual‑core Cortex‑A53 provides a capable platform for compute and multimedia workloads without unnecessary complexity.
• Integrated Multimedia Support — NEON SIMD and multimedia co-processing reduce software overhead for media and signal-processing tasks.
• Comprehensive Display Options — Multiple display controllers (DP, HDMI, LCD) simplify designs targeting graphical interfaces and video output.
• Hardware Security Engines — On-chip AES, RSA, SHA variants and TRNG enable implementation of hardware-level cryptographic functions and secure provisioning.
• Industrial Reliability — Industrial qualification and a wide operating temperature range (−40 °C to 125 °C) support deployment in harsh environments.
• Compact Surface-Mount Package — 841‑FBGA (15×15) package supports high-density PCB designs while retaining comprehensive I/O.

Why Choose R9A09G057H48GBG#BC0?

The R9A09G057H48GBG#BC0 positions itself as a versatile industrial microprocessor that combines 64‑bit Cortex‑A53 processing, multimedia acceleration and dedicated security hardware. Its feature set—LPDDR4 memory support, multiple display interfaces, GbE and USB 3.1—makes it suitable for embedded designs that need balanced compute, graphics and connectivity in a single device.

Designed for developers and OEMs targeting industrial embedded products, this device offers a compact package and an extended temperature range for reliable long-term operation in demanding environments. The integrated security and multimedia capabilities help reduce system complexity while addressing performance and protection requirements.

Request a quote or submit a parts inquiry to check availability and pricing for R9A09G057H48GBG#BC0.
