10AX048K2F35I1HG

The 10AX048K2F35I1HG is an Intel Arria 10 GX field-programmable gate array (FPGA) in a 1152-FCBGA (35×35) package. It delivers a mid-range, high-performance, power-aware FPGA fabric suitable for complex, configurable digital logic and system integration tasks.

Built for applications that require substantial logic density, on-chip memory and broad I/O connectivity, this device targets midrange markets where performance, integration and industrial temperature operation are important.

Key Features

• Logic Fabric — 480,000 logic elements provide capacity for large-scale programmable logic designs and system-level integration.
• On‑Chip Memory — 5,664,768 total RAM bits available for buffering, lookup tables and memory-intensive functions inside the FPGA fabric.
• I/O Density — 396 user I/O pins to support multiple external interfaces, parallel buses and high-pin-count connectivity.
• Arria 10 Family Architecture — Inherited family capabilities including adaptive logic modules, variable-precision DSP blocks, embedded memory blocks, flexible clock networks and PLL clock sources as documented for Intel Arria 10 devices.
• High‑Speed Interfaces and IP — Device family documentation lists hard IP blocks and features such as PCIe Gen1/2/3 support, enhanced PCS hard IP for Interlaken and 10 Gbps Ethernet, and low-power serial transceivers for high-speed link implementation.
• Configuration and Reliability — Arria 10 family features include dynamic and partial reconfiguration, SEU error detection and correction, and enhanced configuration methods as described in the device overview.
• Power and Voltage — Operates from a supply voltage range of 870 mV to 980 mV, with integrated power-management capabilities referenced for the device family.
• Industrial Temperature Range — Rated for operation from −40 °C to 100 °C to support deployment in industrial environments.

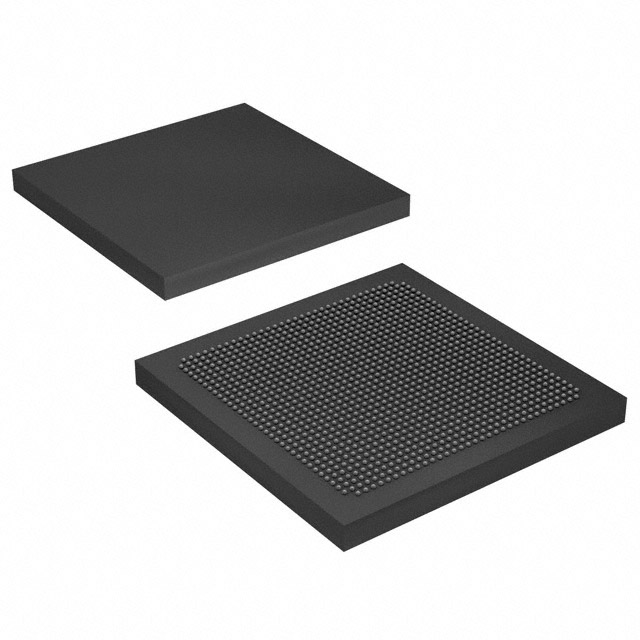

• Package & Mounting — Surface-mount 1152-BBGA (1152‑FCBGA, 35×35) package for board-level assembly and thermal design considerations.
• Environmental Compliance — RoHS compliant.

Typical Applications

• Networking and Telecom — Implement high-speed packet processing, line-card functions and protocol bridging using the device family’s transceiver and hard IP capabilities.
• Compute and Acceleration — Deploy as an FPGA accelerator or offload for cloud and server applications where high logic density and on-chip memory improve throughput.
• Broadcast and Video — Use on-chip RAM and DSP resources for video processing, format conversion and professional audio/video switching.
• Medical and Imaging — Leverage logic capacity and deterministic I/O for imaging pipelines and diagnostic equipment control in industrial temperature conditions.

Unique Advantages

• High Logic Capacity: 480,000 logic elements provide room for complex system-on-FPGA designs and integration of multiple subsystems on one device.
• Substantial On‑Chip Memory: 5,664,768 RAM bits reduce dependence on external memory for buffering and accelerate data-path implementations.
• Broad External Connectivity: 396 I/O pins enable rich external interfacing and flexible board-level connectivity options.
• Family-Level System Features: Access to Arria 10 family capabilities—such as DSP blocks, PLLs, transceivers and PCIe hard IP—helps shorten system design time by leveraging documented device features.
• Industrial Reliability: Operation from −40 °C to 100 °C positions the part for demanding environmental conditions common in industrial and infrastructure deployments.
• Regulatory and Assembly Ready: RoHS compliance and surface-mount FCBGA packaging support modern manufacturing and environmental requirements.

Why Choose 10AX048K2F35I1HG?

The 10AX048K2F35I1HG combines large logic capacity, significant on-chip memory and wide I/O in a single Arria 10 GX FPGA package. It is suited for midrange designs that require a balance of performance, power efficiency and integration while operating across industrial temperature ranges.

Backed by the Intel Arria 10 device family documentation and device-level features, this FPGA is appropriate for engineers and system designers looking to consolidate functions, implement high-speed interfaces and maintain predictable operation in industrial environments.

Request a quote or submit an inquiry to start evaluation and procurement of the 10AX048K2F35I1HG for your next FPGA-based design project.
