10AX048K2F35I2SG

The 10AX048K2F35I2SG is an Intel Arria 10 GX field-programmable gate array (FPGA) in a 1152-ball FCBGA package. It delivers mid-range, high-performance FPGA capability with a large logic fabric and embedded memory, suitable for demanding communications, broadcast, and compute-acceleration applications.

Built for systems requiring high I/O density and scalable on-chip resources, this device pairs 480,000 logic elements with dedicated embedded memory and I/O features while supporting industrial operating temperatures and RoHS compliance.

Key Features

• Logic Capacity  480,000 logic elements for large-scale programmable logic integration and complex design implementation.
• Embedded Memory  5,664,768 total RAM bits of on-chip memory to support buffering, packet processing, and on-chip storage.
• I/O Density  396 I/O pins to support high-pin-count interfaces and dense board-level connectivity.
• Transceivers & Serial Links  Arria 10 device family features low-power serial transceivers and enhanced PCS hard IP for protocols such as Interlaken and 10 Gbps Ethernet, enabling high-speed serial connectivity.
• Hard IP for Interfaces  Includes PCIe Gen1/Gen2/Gen3 hard IP and enhanced PCS blocks to simplify implementation of common high-speed interfaces.
• DSP and Arithmetic  Variable-precision DSP blocks (as provided by the Arria 10 device family) for optimized signal processing and compute tasks.
• Clocking and PLLs  Comprehensive clock networks with PLL-based fractional synthesis and I/O PLLs for flexible clock generation and distribution.
• Configuration and Reconfiguration  Support for dynamic and partial reconfiguration capabilities described for the Arria 10 family, enabling in-field updates and design partitioning.

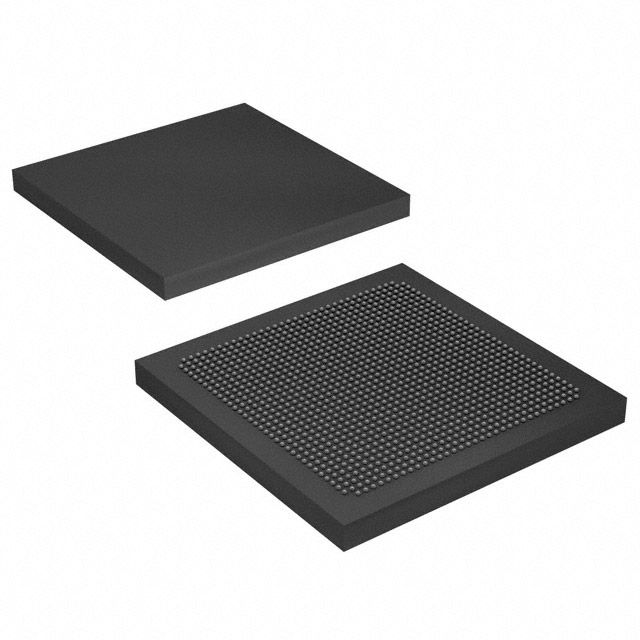

• Package & Mounting  1152-BBGA (FCBGA) supplier package, 35 × 35 mm, surface-mount for compact, high-density board designs.
• Power & Supply  Core voltage supply range of 870 mV to 980 mV to match system power delivery requirements.
• Industrial Temperature Grade  Operates from −40°C to 100°C for use in industrial temperature environments.
• Compliance  RoHS compliant for environmental and regulatory alignment.

Typical Applications

• Wireless infrastructure  Channel and switch cards in remote radio heads and mobile backhaul equipment benefiting from high logic density and high-speed serial links.
• Wireline networking  40G/100G muxponders, transponders and line cards leveraging embedded memory, transceivers, and PCIe hard IP for high-throughput packet processing.
• Broadcast and professional media  Studio switching, transport, and video processing systems that require flexible logic and abundant on-chip RAM for buffering and real-time processing.
• Compute and storage acceleration  Server acceleration, flash cache, and cloud compute functions where programmable logic and DSP blocks can offload latency-sensitive tasks.
• Medical and defense systems  Diagnostic imaging, radar, and electronic warfare subsystems that need industrial temperature operation and robust on-board resources.

Unique Advantages

• High logic and memory integration: 480,000 logic elements paired with over 5.6 Mbits of on-chip RAM reduce external component needs and simplify system architecture.
• Built-in high-speed interface IP: PCIe Gen1/2/3 hard IP and enhanced PCS for Interlaken/10 Gbps Ethernet accelerate time-to-market for networking and storage designs.
• Flexible clocking and reconfiguration: Advanced PLL and clock network capabilities along with dynamic/partial reconfiguration enable adaptable system behaviors and in-field updates.
• Industrial-ready thermal range: −40°C to 100°C operating range supports deployment in temperature-challenging environments.
• Compact, high-density packaging: 1152-ball FCBGA (35 × 35 mm) surface-mount package enables dense board layouts while supporting the device’s I/O count.
• Regulatory and environmental compliance: RoHS compliance simplifies integration into products targeting global markets.

Why Choose 10AX048K2F35I2SG?

The 10AX048K2F35I2SG brings Arria 10 GX-class FPGA capability—high logic density, substantial embedded memory, and targeted hard IP—to mid-range systems that require a balance of performance and power efficiency. Its combination of logic elements, on-chip RAM, and high-speed interface support positions it for demanding communications, broadcast, and compute-acceleration roles.

This device suits engineers and organizations building systems that need scalable programmable logic, robust I/O, and industrial temperature tolerance. Backed by the Arria 10 device family feature set, it provides architectural flexibility and long-term platform continuity for evolving system requirements.

If you would like pricing, availability, or to request a formal quote for the 10AX048K2F35I2SG, submit a quote request or request a quote and our team will respond with the next steps and lead-time information.
