10AX066H2F34E2SG

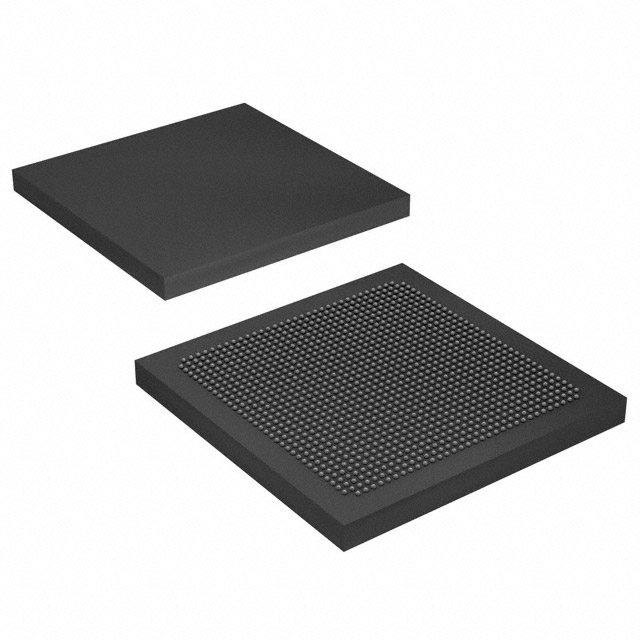

The 10AX066H2F34E2SG is an Intel Arria 10 GX field-programmable gate array (FPGA) in a 1152‑FCBGA (35×35) surface-mount package. It delivers a mid-range, 20‑nm FPGA architecture designed for logic‑ and memory‑intensive embedded designs that require substantial I/O and configurable system-level functionality.

With 660,000 logic elements, 49,610,752 total RAM bits and 492 I/O pins, this device targets applications across wireless and wireline infrastructure, broadcast and video processing, computing and storage acceleration, and other high‑performance, power‑sensitive markets.

Key Features

• Logic Capacity  660,000 logic elements (cells) to implement complex custom logic, packet processing, or algorithm acceleration.
• Embedded Memory  49,610,752 total RAM bits for on‑chip buffering, lookup tables, and memory‑intensive functions.
• I/O Density  492 I/O pins to support wide parallel interfaces, high‑speed links, and multiple peripheral connections.
• Transceiver and Connectivity Features  Arria 10 family documentation describes low‑power serial transceivers, enhanced PCS hard IP and PCIe Gen1/Gen2/Gen3 hard IP—features applicable to Arria 10 GX devices for high‑speed external interfaces and protocol offload.
• DSP and Logic Architecture  Family-level features include Adaptive Logic Modules and variable‑precision DSP blocks for arithmetic and signal processing acceleration.
• Clocking and PLLs  Rich clock networks with fractional synthesis and I/O PLLs are provided by the Arria 10 device family to support diverse timing and serialization requirements.
• Reconfiguration and Reliability  Device handbook notes support for dynamic and partial reconfiguration and SEU error detection/correction features available in the Arria 10 family.
• Package & Mounting  1152‑FCBGA (35×35) supplier device package; surface‑mount mounting type suitable for compact, board‑level implementations.
• Power & Supply  Operating core supply range specified at 870 mV to 980 mV to match platform power rails and design constraints.
• Operating Range & Grade  Extended grade with operating temperature range 0 °C to 100 °C for many commercial and industrial applications.
• Environmental Compliance  RoHS compliant.

Typical Applications

• Wireless Infrastructure  Implements channel and switch cards for remote radio heads and mobile backhaul with high‑density logic and I/O.
• Wireline Networking  Supports 40G/100G muxponders, transponders and line cards where large logic and embedded memory enable packet processing and protocol handling.
• Broadcast & Video Processing  Used in studio switches, video transport and professional audio/video equipment that require large on‑chip memory and flexible I/O mapping.
• Computing & Storage Acceleration  Suitable for flash cache, server acceleration and cloud compute offload where DSP blocks and large RAM support data‑path acceleration.
• Defense & Secure Communications  Applicable to radar, electronic warfare and secure communications systems that use extensive custom logic and reconfiguration features.

Unique Advantages

• Substantial Logic and Memory  660,000 logic elements and nearly 50 million RAM bits enable complex algorithms and deep buffering without relying on external memories.
• High I/O Count  492 I/Os provide flexibility to interface multiple high‑speed links, parallel buses, and peripherals on a single device.
• Integrated Family-Level IP  Arria 10 family features—such as PCIe hard IP, enhanced PCS, and low‑power serial transceivers—support integration of common high‑speed protocols and reduce development time.
• Flexible Clocking and DSP  Advanced clock networks, PLLs and variable‑precision DSP blocks permit precise timing architectures and efficient signal processing implementations.
• Compact Surface-Mount Package  1152‑FCBGA package provides a high pin count in a compact footprint for dense system designs.
• Extended Grade and Compliance  Extended grade and RoHS compliance support deployment in environments requiring broader temperature tolerance and regulatory conformity.

Why Choose 10AX066H2F34E2SG?

The 10AX066H2F34E2SG positions itself as a high‑capacity, mid‑range FPGA option within the Intel Arria 10 GX family, offering a balance of logic density, large embedded memory, extensive I/O and family‑level connectivity IP. These characteristics make it well suited for applications that demand configurable hardware acceleration, protocol offload and substantial on‑chip buffering.

Design teams seeking a scalable FPGA platform for wireless and wireline infrastructure, broadcast/video processing, compute acceleration or secure communications can leverage the Arria 10 device family documentation and feature set to accelerate development and system integration.

Request a quote or submit a quotation request to receive pricing, availability and delivery information for the 10AX066H2F34E2SG.
