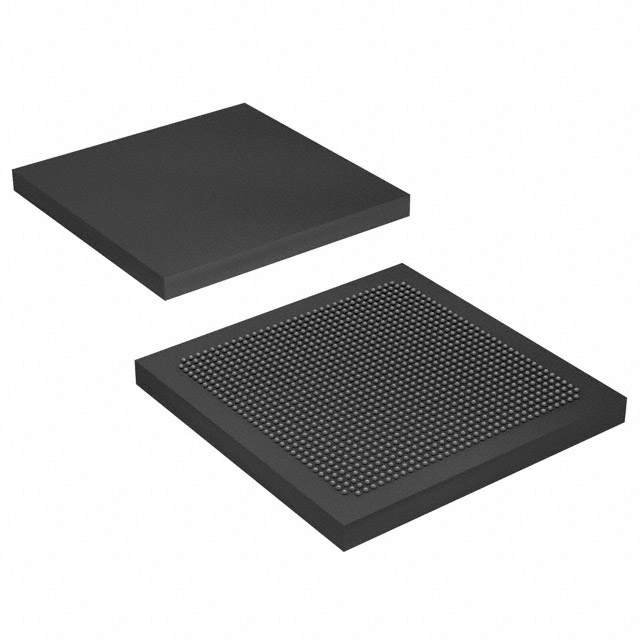

10AX066H2F34E1HG

The 10AX066H2F34E1HG is an Intel Arria 10 GX Field Programmable Gate Array (FPGA) device from the 20‑nm mid‑range FPGA family. It combines a high logic capacity and substantial embedded memory with advanced I/O and hard IP to address demanding midrange applications.

Designed for markets such as wireless, wireline, broadcast, computing and storage, medical, and military, this device emphasizes performance and power efficiency through the Arria 10 architecture and associated power‑management technologies.

Key Features

• Core Architecture  20‑nm Arria 10 GX mid‑range FPGA architecture tailored for higher performance and power efficiency.
• Logic Capacity  660,000 logic elements for large-scale custom logic and control functions.
• Embedded Memory  49,610,752 total RAM bits to support large on‑chip buffering, lookup tables, and state storage.
• I/O and Connectivity  492 user I/O pins and integrated support for high‑speed interfaces including PCIe Gen1/2/3 hard IP, 10 Gbps Ethernet, and Interlaken as described in the device family documentation.
• Transceivers and DSP  Low‑power serial transceivers and variable‑precision DSP blocks (as described for the Arria 10 family) for high‑throughput serial links and signal processing.
• Configuration and Reconfiguration  Support for dynamic and partial reconfiguration capabilities and enhanced configuration options in the Arria 10 device family.
• Power and Voltage  Operates from a core supply range of 870 mV to 980 mV with device‑level power management features noted in the Arria 10 documentation.
• Package and Mounting  1152‑FCBGA package (35×35 mm) in a surface‑mount form factor for dense board integration.
• Environmental and Grade  Extended grade device with an operating temperature range of 0 °C to 100 °C; RoHS compliant.

Typical Applications

• Wireless Infrastructure  Channel cards, switch cards, and mobile backhaul modules that require high logic density and efficient DSP and transceiver resources.
• Wireline Networking  40G/100G muxponders, transponders, and line cards leveraging integrated hard IP (PCIe, Ethernet) and high I/O counts for dense port implementations.
• Broadcast and Pro AV  Studio switches and professional audio/video processing where on‑chip memory and DSP blocks enable real‑time media handling.
• Compute and Storage Acceleration  Flash cache, server acceleration, and cloud computing functions that benefit from large logic resources and on‑chip RAM.
• Medical and Defense Systems  Diagnostic imaging, radar, and secure communications applications that require substantial processing and configurable hardware acceleration.

Unique Advantages

• High Logic Density: 660,000 logic elements provide ample resources for complex custom logic, reducing the need for multiple devices.
• Large On‑Chip Memory: Nearly 50 million bits of embedded RAM enable extensive buffering and state storage without immediate external memory dependence.
• Rich Interface and Hard IP Support: Integrated support for PCIe Gen1/2/3, 10 Gbps Ethernet, and Interlaken (per the Arria 10 family documentation) simplifies design of high‑speed data paths.
• Flexible Reconfiguration: Dynamic and partial reconfiguration capabilities allow designers to update or partition functionality in deployed systems.
• Practical Packaging for Dense Boards: 1152‑FCBGA (35×35 mm) surface‑mount package delivers high pin count and compact footprint for space‑constrained designs.
• Defined Operating Envelope: Extended grade rating with 0 °C to 100 °C operating range and a specified core voltage window (870 mV–980 mV) supports predictable system design.

Why Choose 10AX066H2F34E1HG?

The 10AX066H2F34E1HG Arria 10 GX FPGA offers a combination of high logic capacity, substantial embedded RAM, and extensive I/O and protocol hard IP drawn from the Arria 10 device family. These characteristics make it well suited to midrange designs that require significant on‑chip compute, memory, and high‑speed connectivity while maintaining a defined power and thermal envelope.

This device is appropriate for engineering teams building high‑performance communications, broadcast, compute acceleration, and advanced imaging systems who need scalable logic resources, on‑chip memory, and flexible reconfiguration options aligned with the Arria 10 family documentation and feature set.
