10AX066H4F34I3SGES

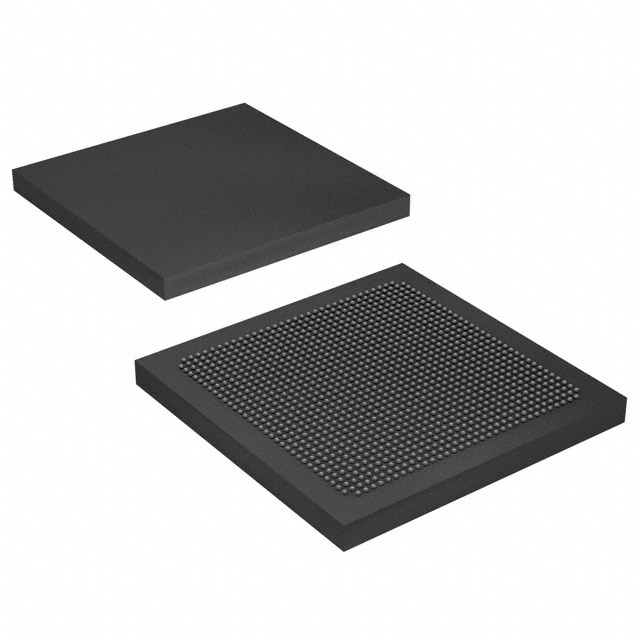

The 10AX066H4F34I3SGES is an Intel Arria 10 GX Field Programmable Gate Array (FPGA) in a 1152-ball FCBGA package. It belongs to the Arria 10 device family of 20 nm mid-range FPGAs and SoCs that are described as delivering high performance and power efficiency for demanding embedded and networking applications.

With 660,000 logic elements, nearly 49.6 million bits of embedded RAM and 492 I/O pins, this device targets high-density logic, memory-rich designs and systems requiring substantial I/O and serial connectivity while operating across an industrial temperature range.

Key Features

• Logic Capacity  660,000 logic elements provide substantial programmable logic resources for complex algorithms and acceleration tasks.
• On-chip Memory  Total embedded RAM of 49,610,752 bits supports large buffering, lookup tables and state storage for data-intensive designs.
• I/O and Package  492 I/O pins in a 1152-FCBGA (35×35) package allow dense external interfacing; device is surface-mount compatible for standard PCB assembly.
• Supply and Power  Core supply range specified at 870 mV to 930 mV to meet the device’s core power requirements.
• Industrial Operating Range  Rated for operation from −40 °C to 100 °C and listed as Industrial grade for use in harsher environments.
• Series-Level DSP and Memory Blocks  Arria 10 family features variable-precision DSP blocks and a variety of embedded memory block types for signal processing and data buffering.
• Clocking and Reconfiguration  Arria 10 devices include advanced clock networks, PLL clock sources and support for dynamic and partial reconfiguration at the series level.
• High-Speed Protocol Support (Series)  Arria 10 family documentation identifies support for hardened PCIe Gen1/Gen2/Gen3 IP, enhanced PCS for Interlaken and 10 Gbps Ethernet, and low-power serial transceivers (series-level features).
• RoHS Compliant  Product meets RoHS environmental requirements.

Typical Applications

• Wireless Infrastructure  Channel and switch cards in remote radio heads and mobile backhaul equipment that need dense logic and on-chip memory.
• Wireline Networking  Line cards, muxponders and transponders in 40G/100G systems where high I/O count and series-level protocol IP are beneficial.
• Broadcast and Professional AV  Studio switches and video processing systems requiring large buffering and flexible logic for signal routing and format conversion.
• Computing and Storage Acceleration  Flash cache, server acceleration and cloud compute offload that leverage high logic capacity and embedded RAM.
• Defense and Medical Systems  Radar, electronic warfare, diagnostic imaging and other applications that benefit from industrial temperature rating and high-density FPGA resources.

Unique Advantages

• High-density programmable fabric: 660,000 logic elements enable complex algorithms and system integration within a single device, reducing board-level component count.
• Large on-chip RAM: Nearly 49.6 Mb of embedded RAM supports sizable data buffering and state storage without external memory for many use cases.
• Extensive I/O in a compact package: 492 I/Os in a 1152-FCBGA (35×35) footprint provide broad connectivity while maintaining a surface-mount form factor for modern PCBs.
• Industrial robustness: Rated from −40 °C to 100 °C and specified as Industrial grade for dependable operation in demanding environments.
• Series-level high-speed connectivity: Arria 10 family features include hardened PCIe IP, PCS for Interlaken and 10 Gbps Ethernet and low-power serial transceivers to simplify integration of common high-speed links.
• Power-aware architecture: The Arria 10 family is described as delivering power-efficient operation, supported by a defined core voltage range for predictable power planning.

Why Choose 10AX066H4F34I3SGES?

The 10AX066H4F34I3SGES delivers a balance of high logic density, large embedded memory and extensive I/O in a single industrial-grade FPGA package. It is well suited to mid-range systems that require substantial programmable resources alongside series-level support for DSP, memory and high-speed protocol IP.

Designed as part of the Intel Arria 10 family, this device provides a platform for scalable designs where performance, power efficiency and integration matter, and where long-term support from the device family documentation and tooling is important for development and production.

Request a quote or submit an inquiry to receive pricing and availability for the 10AX066H4F34I3SGES. Our team can provide ordering information and assist with technical questions about integrating this Arria 10 GX FPGA into your design.
