10CL016YM164I7G

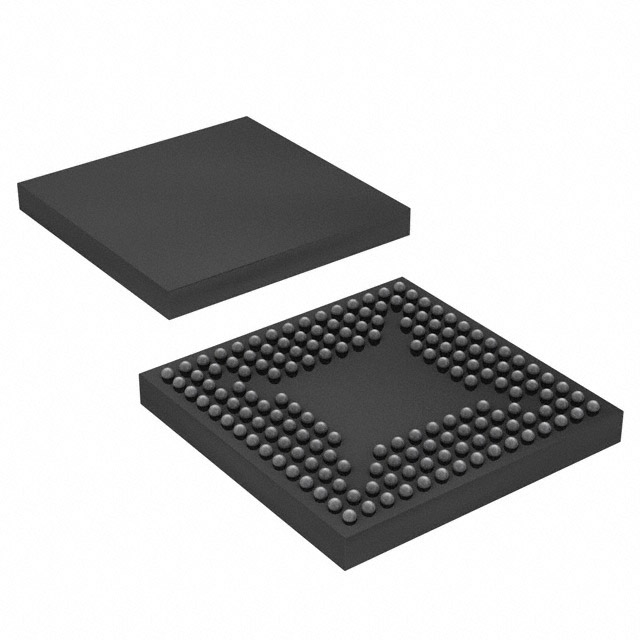

The 10CL016YM164I7G is an Intel Cyclone® 10 LP Field Programmable Gate Array supplied in a 164‑TFBGA package. It delivers 15,408 logic elements and 516,096 bits of on‑chip RAM with 87 user I/Os for programmable digital logic integration.

Rated for industrial use with an operating temperature range of −40 °C to 100 °C and a 1.2 V core supply, this device targets embedded designs that require a compact, configurable logic fabric with substantial memory resources and a robust operating envelope.

Key Features

• Logic Capacity — 15,408 logic elements provide programmable fabric for custom control, data path, and glue logic implementations.
• On‑Chip Memory — 516,096 total RAM bits available for FIFOs, buffers, and local data storage.
• I/O Resources — 87 user I/Os to interface sensors, peripherals, and external logic; surface‑mount package supports compact PCB layouts.
• Core Voltage — Standard 1.2 V core supply as specified for this device variant.
• Package & Mounting — 164‑TFBGA package (supplier device package listed as 164‑MBGA, 8×8) in a surface‑mount format for high‑density board designs.
• Industrial Grade & Temperature Range — Grade: Industrial; specified operating temperature −40 °C to 100 °C for reliable operation in demanding environments.
• Regulatory — RoHS compliant.

Typical Applications

• Industrial Control and Automation — Industrial temperature rating and plentiful I/Os support sensor interfacing, motor control logic, and machine control glue logic.
• Embedded System Integration — On‑chip RAM and logic element count enable custom datapaths, peripheral aggregation, and control functions within compact embedded platforms.
• I/O Aggregation and Protocol Bridging — 87 user I/Os accommodate aggregation of multiple interfaces or implementation of protocol translation logic.

Unique Advantages

• Right‑sized Logic Density: 15,408 logic elements balance capacity and cost for projects needing moderate programmable logic.
• Substantial On‑Chip Memory: 516,096 RAM bits reduce external memory requirements for buffering and temporary storage.
• Industrial Reliability: Industrial grade and −40 °C to 100 °C operating range enable deployment in factory, control, and other temperature‑stressed environments.
• Compact, Surface‑Mount Package: 164‑TFBGA (164‑MBGA 8×8) minimizes PCB area while supporting high‑density board designs.
• RoHS Compliant: Meets lead‑free environmental requirements for modern electronics manufacturing.

Why Choose 10CL016YM164I7G?

The 10CL016YM164I7G positions itself as a practical Cyclone® 10 LP FPGA option for engineers who need a balance of logic capacity, on‑chip memory, and I/O in a compact industrial‑rated package. Its 1.2 V core supply and robust temperature range make it suitable for embedded and industrial applications where board space and environmental tolerance matter.

Choose this device when your design requires programmable logic with significant internal RAM, a moderate number of I/Os, and industrial temperature capability—providing scalability and integration while leveraging Intel’s Cyclone 10 LP device family characteristics documented for this series.

Request a quote or submit an inquiry to receive pricing and availability information for the 10CL016YM164I7G.
