10CL016YM164A7G

The 10CL016YM164A7G is an Intel Cyclone® 10 LP field programmable gate array (FPGA) provided in a compact 164-TFBGA package for surface-mount applications. It delivers 15,408 logic elements and 516,096 bits of on-chip RAM with 87 general-purpose I/O pins, offering a balance of logic density, memory, and I/O for embedded and in-vehicle designs.

Qualified to AEC‑Q100 and rated for operation from −40 °C to 125 °C with a 1.2 V core supply, this device is suited to automotive-grade electronic subsystems that require programmable logic with automotive qualification and RoHS compliance.

Key Features

• Cyclone® 10 LP FPGA Family — Field-programmable logic device based on the Cyclone 10 LP family architecture.
• Logic Capacity — 15,408 logic elements to implement custom digital functions and control logic.
• On‑Chip Memory — 516,096 total RAM bits for buffering, state storage, and local data handling.
• I/O Resources — 87 I/O pins for sensor interfaces, peripheral control, and system-level connectivity.
• Automotive Qualification — AEC‑Q100 qualification and Automotive grade designation for use in vehicle electronics.
• Core Voltage — 1.2 V core supply (specified 1.2 V), consistent with the Cyclone 10 LP standard core-voltage option.
• Thermal & Environmental — Operating temperature range from −40 °C to 125 °C and RoHS compliant.

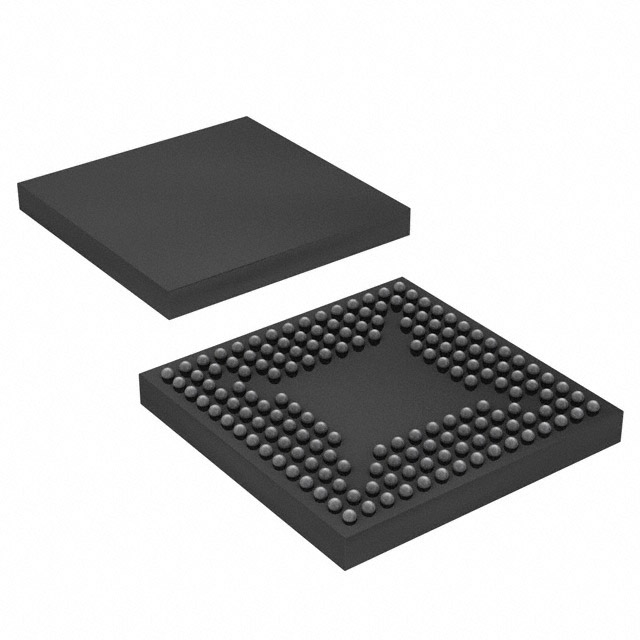

• Package & Mounting — 164‑TFBGA package, supplier device package 164‑MBGA (8×8), surface-mount for compact PCB integration.

Typical Applications

• Automotive Control Modules — AEC‑Q100 qualification and wide temperature range make this FPGA appropriate for in-vehicle control electronics and domain controllers.
• Embedded System Integration — Use as programmable logic for protocol translation, timing control, and custom state machines where on-chip RAM and logic density are required.
• Sensor and Perimeter I/O Aggregation — 87 I/O pins support aggregation and preprocessing of multiple sensors and peripheral devices in compact modules.
• Space-Constrained Designs — 164‑TFBGA surface-mount package enables high-density, compact PCB layouts.

Unique Advantages

• Automotive-Qualified FPGA: AEC‑Q100 qualification and Automotive grade help reduce integration risk for vehicle electronics.
• Balanced Logic and Memory: 15,408 logic elements combined with 516,096 RAM bits support both control logic and local data buffering without external memory in many designs.
• Robust Operating Range: −40 °C to 125 °C operation suits harsh-environment deployments common in automotive applications.
• Compact Packaging: 164‑TFBGA / 164‑MBGA (8×8) package minimizes board area while keeping ample I/O available.
• Low-Voltage Core: 1.2 V core supply aligns with power-constrained system designs and standard Cyclone 10 LP core-voltage options.
• RoHS Compliant: Environmentally compliant for global production requirements.

Why Choose 10CL016YM164A7G?

The 10CL016YM164A7G positions itself as a purpose-built Cyclone 10 LP FPGA for designs that demand automotive qualification, moderate logic density, and substantial on-chip RAM in a compact surface-mount package. Its combination of 15,408 logic elements, 516,096 RAM bits, and 87 I/O pins makes it well suited to embedded and in-vehicle subsystems where programmable logic reduces BOM complexity and enables in-field flexibility.

Backed by Intel’s Cyclone 10 LP device family specifications and AEC‑Q100 qualification, this device is intended for engineering teams seeking a verified, automotive-grade programmable solution with a known supply-voltage and thermal envelope for reliable deployment.

Request a quote or submit an RFQ to check availability, lead times, and pricing for the 10CL016YM164A7G.
