10CL080YU484I7G

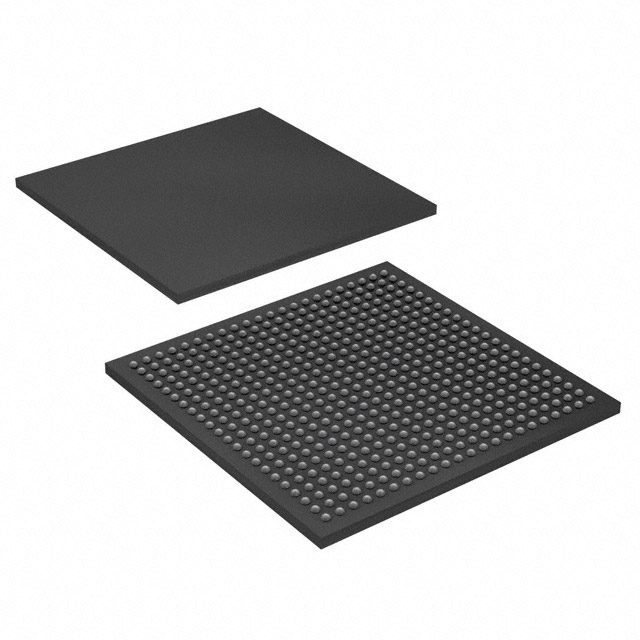

The 10CL080YU484I7G is an Intel Cyclone® 10 LP field programmable gate array (FPGA) in a 484-ball FBGA/UBGA package. It integrates substantial programmable logic, on-chip RAM, and a high I/O count in a surface-mount package suited to industrial-grade environments.

Designed with a 1.2 V core supply and an industrial operating temperature range, this device targets embedded and systems applications that require high logic capacity, significant on-chip memory, and a compact BGA footprint while meeting RoHS compliance.

Key Features

• Logic Capacity — 81,264 logic elements (logic cells) provide substantial programmable resources for complex digital designs.
• On‑chip Memory — 2,810,880 total RAM bits available for buffering, FIFOs, and local storage.
• I/O Density — 289 I/O pins support a wide range of peripheral connections and system interfacing.
• Power — Operates from a 1.2 V core supply as specified for this device.
• Package & Mounting — 484-FBGA package case; supplier device package listed as 484-UBGA (19×19). Surface-mount mounting type for PCB assembly.
• Industrial Temperature Grade — Rated for −40°C to 100°C operating temperature for deployment in industrial environments.
• Compliance — RoHS compliant.

Unique Advantages

• High logic integration: 81,264 logic elements allow consolidation of multi‑function designs into a single FPGA to reduce board-level complexity.
• Substantial on‑chip RAM: 2,810,880 bits of RAM support local data buffering and memory-intensive logic without immediate external RAM dependence.
• Generous I/O count: 289 I/O pins enable broad peripheral connectivity and flexible system partitioning.
• Industrial readiness: Specified −40°C to 100°C operating range and industrial grade designation for deployment in temperature-challenging environments.
• Compact BGA footprint: 484-ball FBGA/UBGA (19×19) package delivers high pin density in a surface-mount form factor suitable for space-constrained PCBs.
• Standards-compliant procurement: RoHS compliance supports regulatory alignment in finished equipment.

Why Choose 10CL080YU484I7G?

The 10CL080YU484I7G balances high programmable logic capacity, significant on-chip RAM, and a large I/O complement in a compact 484-ball BGA package. Its industrial temperature rating and 1.2 V core supply position it for use where robust operation and dense integration are required.

As an Intel Cyclone® 10 LP device, it is supported by the Cyclone 10 LP device documentation and electrical specifications, which provide the device-level details required for system design and qualification.

Request a quote for 10CL080YU484I7G to check availability and obtain pricing for your design and production needs.
