10CL080YU484A7G

The 10CL080YU484A7G is an Intel Cyclone® 10 LP field programmable gate array (FPGA) in a 484-FBGA package designed for automotive-grade systems. It provides programmable logic capacity, embedded RAM, and a high I/O count for designs that require deterministic, reconfigurable hardware in environments from −40 °C to 125 °C.

With a 1.2 V core supply and AEC‑Q100 qualification, this device is specified for applications demanding automotive qualification and extended temperature operation while maintaining surface-mount packaging and RoHS compliance.

Key Features

• Programmable Logic  Provides 81,264 logic elements for implementing complex custom logic, state machines, and datapath functions.
• Embedded Memory  Includes 2,810,880 total RAM bits to support buffering, packet handling, and on-chip data storage without external memory.
• High I/O Count  Offers 289 I/O pins to support wide parallel interfaces, multiple serial lanes, and extensive sensor or actuator connectivity.
• Core Voltage  Fixed 1.2 V core supply simplifies power-rail design and aligns with the Cyclone 10 LP device family core requirements.
• Automotive Qualification  AEC‑Q100 qualification and an operating junction/temperature range of −40 °C to 125 °C make the device suitable for automotive electronic systems.

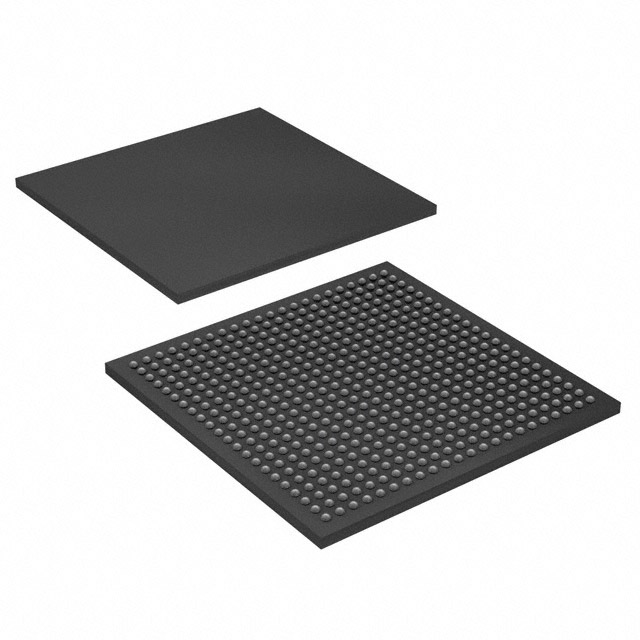

• Package and Mounting  484-FBGA (supplier package: 484-UBGA (19×19)) in a surface-mount form factor for compact board designs.
• Environmental Compliance  RoHS-compliant construction supports regulatory requirements for many production programs.

Typical Applications

• Automotive Electronic Control Units (ECUs)  Programmable logic and AEC‑Q100 qualification support control, interfacing, and data handling tasks in automotive subsystems.
• Sensor Aggregation and Gateway Nodes  High I/O count enables aggregation of multiple sensor inputs and protocol translation at the vehicle edge.
• On-board Data Buffering and Preprocessing  Embedded RAM provides on-chip storage for preprocessing data streams before transfer to downstream processors.

Unique Advantages

• Automotive-Grade Qualification: AEC‑Q100 qualification and wide operating temperature range support deployment in demanding vehicular environments.
• Significant Logic Capacity: 81,264 logic elements enable substantial custom hardware acceleration and complex control logic without external ASIC development.
• Large On-Chip RAM: 2,810,880 RAM bits reduce reliance on external memory for buffering and low-latency data paths.
• Dense I/O Connectivity: 289 I/Os allow flexible interfacing to sensors, actuators, and communication peripherals in compact designs.
• Compact, Surface-Mount Package: 484-FBGA (484-UBGA (19×19)) facilitates high-density board layouts while maintaining manufacturability for production volumes.
• Regulatory and Environmental Compliance: RoHS compliance aligns with environmental and supply-chain requirements for many programs.

Why Choose 10CL080YU484A7G?

The 10CL080YU484A7G positions itself as a capable, automotive-qualified Cyclone 10 LP FPGA that balances sizable programmable logic, large on-chip RAM, and a high I/O count in a compact 484-FBGA package. Its 1.2 V core supply and AEC‑Q100 qualification make it suitable for designers targeting robust in-vehicle systems and other applications requiring extended temperature operation.

This device is appropriate for engineering teams looking to implement configurable hardware functions—such as control logic, interfacing, and data buffering—while leveraging the Cyclone 10 LP family’s device-level specifications and environmental compliance for long-term program stability.

Request a quote or submit an inquiry today to discuss availability, lead times, and volume pricing for the 10CL080YU484A7G.
