5CEBA7M15C8N

The 5CEBA7M15C8N is an Intel Cyclone V E series FPGA in a 484-LFBGA package, offering 149,500 logic elements, approximately 7.88 Mbits of embedded memory, and 240 user I/O pins. It is a commercial-grade, surface-mount device designed for high-volume, cost-sensitive designs where integration and power efficiency matter.

As a Cyclone V family device, it is built on TSMC's 28 nm low-power (28LP) process and benefits from series-level features such as options for integrated transceivers and hard memory controllers. The device targets applications across industrial, wireless/wireline, and military markets that need substantial logic capacity with controlled power and compact packaging.

Key Features

• Logic Capacity — 149,500 logic elements to implement complex combinational and sequential logic, state machines, and custom datapaths.
• Embedded Memory — Approximately 7.88 Mbits of on-chip RAM (7,880,704 total RAM bits) for buffering, FIFOs, and local data storage.

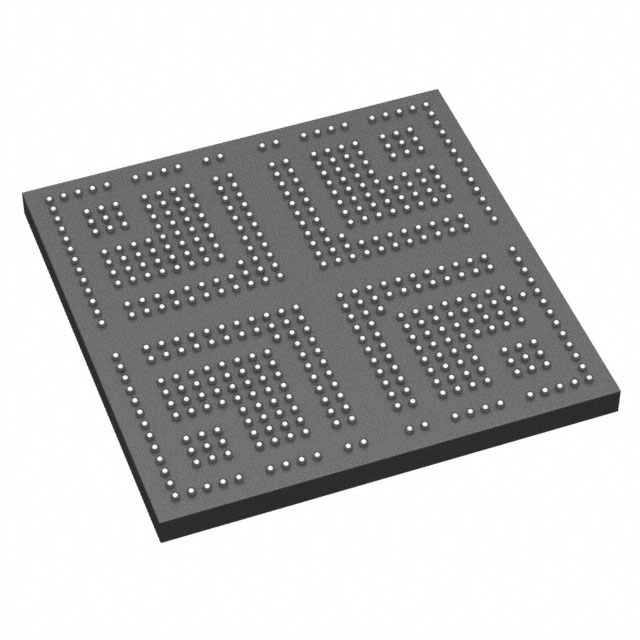

• I/O and Packaging — 240 user I/O pins in a 484-LFBGA package; supplier device package listed as 484-MBGA (15×15); surface-mount mounting type for standard PCB assembly.
• Power and Voltage — Built on a low-power 28 nm process with a nominal core voltage ~1.1 V; this device’s specified supply range is 1.07 V to 1.13 V to match system power rails.
• Operating Range — Commercial-grade device rated for 0 °C to 85 °C operation.
• RoHS Compliance — Environmentally compliant for lead-free manufacturing and regulatory requirements.
• Series-Level Integration — Cyclone V family features such as adaptive logic modules, variable-precision DSP blocks, and options for hard memory controllers and transceivers are available across the device family for scalable system designs.

Typical Applications

• Industrial Systems — Real-time control, data aggregation, and protocol bridging where large logic capacity and deterministic I/O are required.
• Wireless and Wireline Communications — Baseband processing, protocol handling, and interface bridging leveraging the Cyclone V family’s integration options for transceivers and memory controllers.
• Military and Aerospace Systems — Custom logic and processing functions for communications and signal handling in cost-sensitive, performance-focused designs.
• High-Volume Consumer and Commercial Products — Applications that benefit from a balance of logic density, embedded memory, and low-power operation for efficient BOM and PCB integration.

Unique Advantages

• Substantial Logic and Memory in a Compact Package: 149,500 logic elements and ~7.88 Mbits of embedded RAM provide the resources needed for complex designs while remaining in a 484-LFBGA footprint.
• Low-Voltage, Low-Power Design: Built on 28 nm low-power technology with a tight supply range (1.07–1.13 V), enabling reduced core power for power-sensitive systems.
• Flexible I/O and Assembly: 240 user I/O and a surface-mount 484-LFBGA package support dense board layouts and standard manufacturing processes.
• RoHS-Compliant Manufacturing: Meets lead-free requirements to simplify regulatory compliance and end-product manufacturing.
• Scalable Family Features: Leverages Cyclone V series capabilities—such as adaptive logic modules and options for hard IP (transceivers, memory controllers)—to simplify migration between device densities and feature sets.

Why Choose 5CEBA7M15C8N?

The 5CEBA7M15C8N delivers a combination of high logic density, meaningful on-chip memory, and substantial I/O in a compact, surface-mount 484-LFBGA package. Its commercial-grade rating and specified operating range make it a practical choice for designers targeting industrial, wireless/wireline, military, and other high-volume, cost-sensitive applications that require integrated FPGA capability without excessive power or board area.

Because it is part of the Cyclone V family, designers can leverage series-level low-power process technology and family IP to accelerate development, scale between device densities, and maintain a controlled BOM and manufacturing flow across product generations.

Request a quote or submit an inquiry to receive pricing, lead-time, and availability details for part number 5CEBA7M15C8N.
