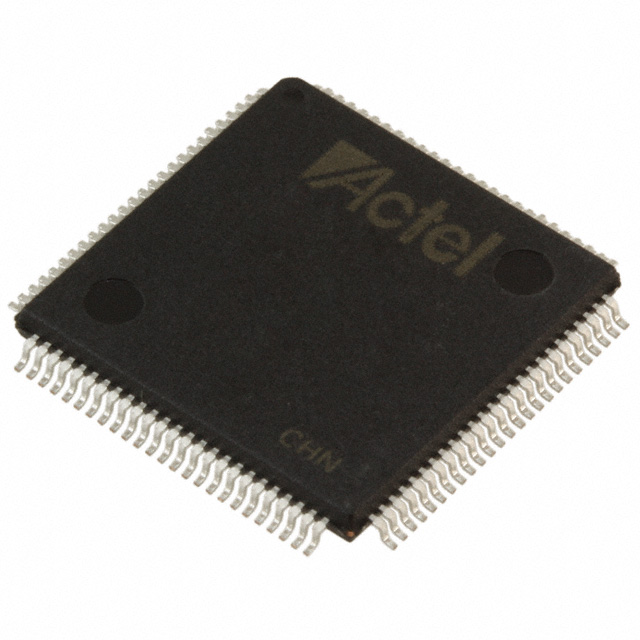

A54SX16A-1TQ100I

The A54SX16A-1TQ100I is an industrial-grade FPGA from Microchip Technology’s SX-A family. It provides a nonvolatile, single-chip FPGA architecture with 24,000 system gates, 1,452 logic elements, and 81 user I/O pins in a 100-pin LQFP package.

Designed for embedded and industrial designs that require configurable logic, mixed-voltage I/O support and deterministic timing, this device supports a wide VCC range and extended operating temperature for robust operation in industrial environments.

Key Features

• Logic Capacity — 24,000 system gates and 1,452 logic elements provide a compact programmable logic resource for glue logic, control functions, and interface adaptation.
• User I/O — 81 user-programmable I/O pins suitable for multi-pin peripheral interfacing and system-level signal routing.
• Nonvolatile Single-Chip Architecture — SX-A family nonvolatile single-chip solution simplifies system start-up and configuration management.
• Configurable Multi-Voltage I/O — Family-level support for 2.5 V, 3.3 V and 5 V mixed-voltage operation, including support described for 3.3 V/5 V PCI, 5 V TTL, 3.3 V LVTTL and 2.5 V LVCMOS2; devices support 5 V input tolerance and 5 V drive strength.
• Power and I/O Robustness — Hot-swap compliant I/Os and power-up/down friendly behavior (no sequencing required for supply voltages) simplify system power management.
• Voltage and Temperature Range — Operates from 2.25 V to 5.25 V and specified for industrial temperature range of −40 °C to 85 °C.
• Package and Mounting — 100-pin LQFP package case with surface-mount mounting type (supplier package listed as 100-TQFP, 14×14 mm).
• Design for Test and Security — Boundary-scan testing compliant with IEEE 1149.1 (JTAG) and family-level secure programming technology (FuseLock) to protect designs.
• Standards and Performance (Family) — SX-A family datasheet documents up to 250 MHz system performance and internal performance claims; family-level features include 66 MHz PCI compliance where applicable.
• Environmental Compliance — RoHS compliant.

Typical Applications

• Industrial Control — Deterministic programmable logic and industrial temperature rating make this FPGA suitable for control logic, signal conditioning and I/O consolidation in industrial automation equipment.
• Interface Bridging — Use the device to implement protocol conversion, bus bridging or custom interface glue logic where mixed-voltage I/O and 81 available I/Os are required.
• Embedded System Glue Logic — Integrate peripheral control, timing logic and custom state machines in compact embedded platforms using the device’s logic elements and nonvolatile configuration.
• PCI-Compatible Subsystems — Family-level 66 MHz PCI compliance supports legacy PCI interface implementations where stated by the system design.

Unique Advantages

• Nonvolatile Configuration: Eliminates external configuration memory and simplifies system start-up and maintenance.
• Mixed-Voltage Flexibility: I/O configurability across common voltage standards reduces the need for level shifters and minimizes BOM complexity.
• Industrial Temperature Rating: Specified −40 °C to 85 °C operation supports deployment in a wide range of industrial environments.
• Compact, Surface-Mount Package: 100-pin LQFP surface-mount package enables high-density PCB designs with a small footprint.
• Design Security and Testability: Built-in boundary-scan and FuseLock secure programming provide test access and intellectual property protection for production and service.
• Wide Supply Voltage Range: 2.25 V to 5.25 V supply range supports flexible power architectures and mixed-voltage systems.

Why Choose A54SX16A-1TQ100I?

The A54SX16A-1TQ100I delivers a compact, nonvolatile FPGA solution tailored for industrial applications that require reliable programmable logic, robust I/O and mixed-voltage support. With 24,000 system gates, 1,452 logic elements and 81 I/Os in a 100-pin LQFP package, it is suited to designers who need deterministic, secure programmable logic without external configuration memory.

This device is ideal for embedded and industrial system designers seeking a balance of integration, board-level simplicity and proven SX-A family features such as hot-swap complaint I/Os, boundary-scan testability and configurable I/O standards.

Request a quote or submit an inquiry to obtain pricing, availability and ordering information for A54SX16A-1TQ100I.
