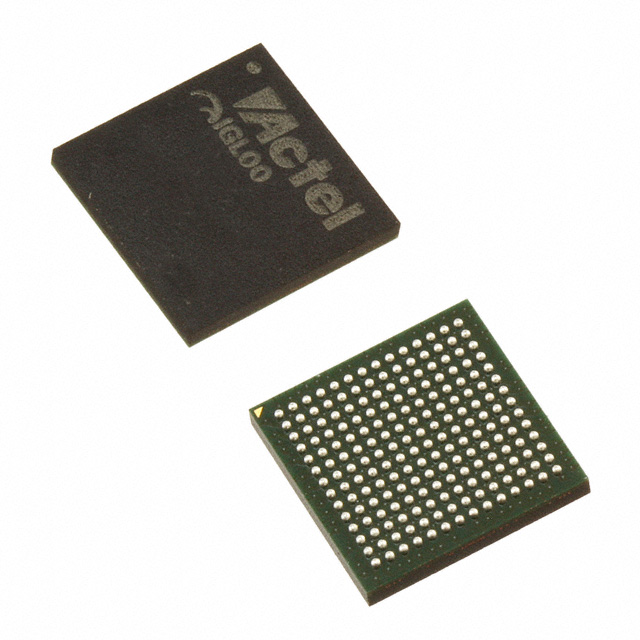

AGL125V2-CSG196

The AGL125V2-CSG196 is an IGLOO field programmable gate array (FPGA) in a compact 196‑TFBGA/CSBGA package. It provides 3072 logic elements, 36,864 bits of on‑chip RAM, and up to 133 user I/O, making it suitable for small to mid‑scale programmable logic requirements in commercial electronic designs.

With a low-voltage supply range of 1.14 V to 1.575 V, surface‑mount package, and commercial operating temperature range of 0 °C to 70 °C, this part is targeted at commercial applications that require a balanced mix of logic capacity, embedded memory, and I/O density in a compact footprint.

Key Features

• Logic Capacity — 3072 logic elements provide the programmable fabric for implementing combinational and sequential logic, state machines, and glue‑logic functions.
• Embedded Memory — 36,864 bits of on‑chip RAM (approximately 36.9 kbits) for local buffering, small FIFOs, and register storage.
• I/O Density — 133 available I/O pins to support a variety of peripheral interfaces and board-level signal connections.
• Gate Count — Approximately 125,000 gates to quantify overall silicon complexity and integration potential.
• Power and Voltage — Operates from 1.14 V to 1.575 V supply rails, enabling integration into low‑voltage system domains.
• Package and Mounting — 196‑TFBGA, CSBGA package (supplier device package: 196‑CSP (8×8)) with surface‑mount mounting for compact board layouts.
• Operating Range and Grade — Commercial grade device with specified operating temperature from 0 °C to 70 °C.
• Compliance — RoHS compliant.

Typical Applications

• Embedded Control Logic — Implement custom control, glue logic, and peripheral arbitration in compact commercial systems using the available logic elements and I/O.
• Interface and Bridge Functions — Use the 133 I/O pins to implement protocol translation, bus bridging, or signal aggregation between system components.
• Data Buffering and Small Memory Tasks — Leverage the on‑chip RAM for local buffering, small FIFOs, and temporary data storage within a processing pipeline.

Unique Advantages

• Moderate Logic Density: 3072 logic elements provide a practical balance for mid‑scale designs without the complexity of larger FPGA families.
• Compact Package: 196‑TFBGA/CSBGA footprint (196‑CSP, 8×8) enables space‑efficient PCB layouts for commercial products.
• Low‑Voltage Operation: 1.14 V to 1.575 V supply range supports integration into modern low‑voltage systems.
• Commercial Temperature Suitability: Specified 0 °C to 70 °C operating range aligns with general commercial product requirements.
• Regulatory Compliance: RoHS compliance supports environmentally conscious manufacturing and sourcing.

Why Choose AGL125V2-CSG196?

The AGL125V2-CSG196 delivers a focused combination of logic element capacity, embedded RAM, and I/O count in a compact surface‑mount package. Its low‑voltage operation and commercial temperature rating make it a practical choice for designers building compact, commercially oriented FPGA‑based solutions that require moderate programmable logic and local memory.

This device is well suited to customers who need a scalable, board‑level programmable element to implement control logic, interface functions, and small buffering tasks while maintaining a small BOM and compact PCB footprint.

Request a quote or submit a product inquiry to begin procurement or to receive additional purchasing information for the AGL125V2-CSG196.
