EP20K200EBC356-1

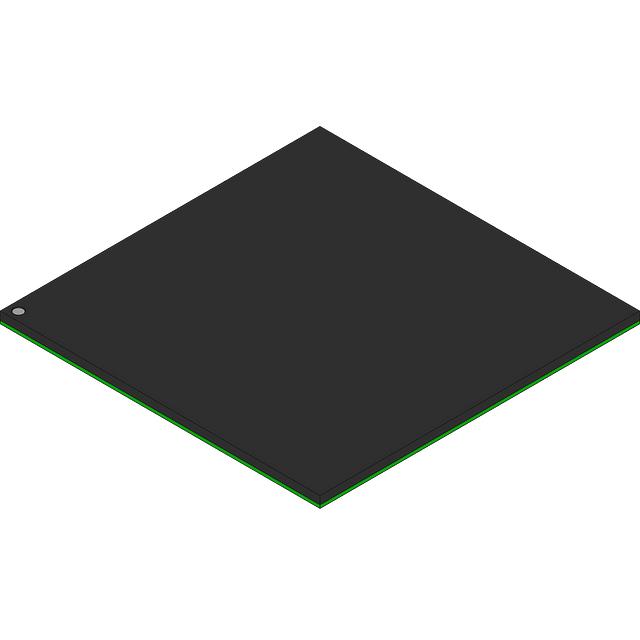

The EP20K200EBC356-1 is an APEX-20KE family Field Programmable Gate Array (FPGA) IC from Altera supplied in a 356-ball BGA (35 × 35 mm) package. It delivers a balanced combination of logic capacity, on-chip RAM and a high I/O count for commercial embedded designs.

With 8,320 logic elements, approximately 0.106 Mbits of embedded memory and 271 user I/O pins, this device targets applications that require moderate logic density, significant I/O connectivity and compact surface-mount packaging while operating within a commercial temperature range.

Key Features

• Core Logic  Provides 8,320 logic elements and an estimated 526,000 gates to implement combinational and sequential logic functions.
• On-chip Memory  Includes approximately 0.106 Mbits (106,496 bits) of embedded RAM for buffering, small data tables and state storage.
• I/O Capacity  Offers 271 user I/O pins to support dense peripheral and sensor interfacing in a single device.
• Package & Mounting  Supplied in a 356-ball BGA package (35 × 35 mm) designed for surface-mount assembly to minimize board footprint.
• Power  Operates from a core supply range of 1.71 V to 1.89 V to match systems using similar core voltage domains.
• Operating Range & Grade  Commercial grade device with an operating temperature range of 0 °C to 85 °C suitable for standard commercial environments.
• Environmental Compliance  RoHS-compliant construction for regulatory alignment in commercial products.

Typical Applications

• Embedded control systems  Use the 8,320 logic elements and on-chip RAM to implement custom control logic and finite-state machines for commercial equipment.
• High-density I/O aggregation  271 I/O pins enable aggregation and protocol bridging for multi-sensor or multi-peripheral systems.
• Prototyping and validation  Compact BGA packaging and moderate logic capacity make the device suitable for functional prototyping of commercial products.

Unique Advantages

• Balanced logic and gate count: Enables implementation of moderate-complexity designs without excessive overcapacity, aligning resources with commercial application needs.
• Significant I/O density: 271 user I/O pins reduce the need for external expanders and simplify board-level interfacing.
• Compact BGA package: The 356-ball, 35 × 35 mm BGA reduces PCB area compared with larger multi-chip solutions while supporting surface-mount assembly.
• On-chip RAM for local storage: Approximately 0.106 Mbits of embedded memory supports buffering, small lookup tables and state retention without external memory.
• Commercial temperature grade: Rated for 0 °C to 85 °C, suitable for a wide range of non-industrial, commercial applications.
• RoHS compliant: Environmentally compliant manufacturing for regulatory alignment in commercial products.

Why Choose EP20K200EBC356-1?

The EP20K200EBC356-1 provides a practical combination of logic capacity, embedded memory and high I/O count in a compact 356-BGA package, making it well suited for commercial embedded designs that require moderate programmable logic and significant connectivity. Its core voltage range and commercial temperature rating align with standard system designs.

Built by Altera, this APEX-20KE device is appropriate for engineers seeking a single-chip solution to consolidate control, interfacing and custom logic in commercial products while maintaining a compact board footprint and RoHS compliance.
