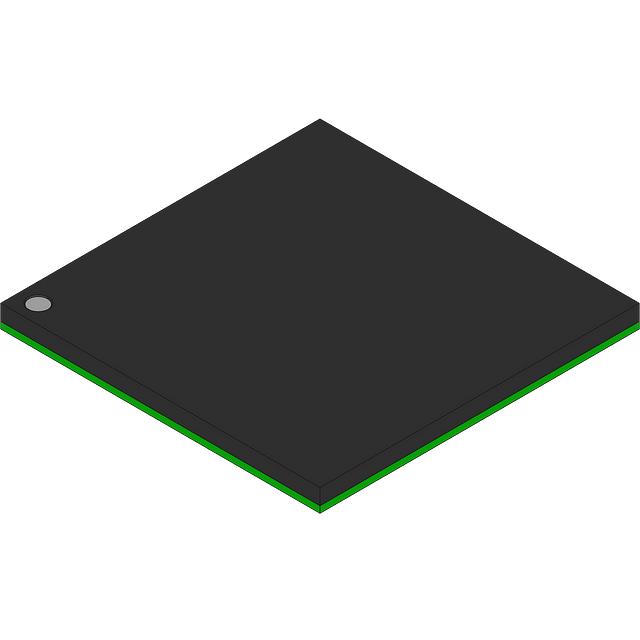

EPF10K100BFC256-2

The EPF10K100BFC256-2 is a FLEX-10K® field programmable gate array from Altera designed for commercial applications requiring mid-density programmable logic. It integrates 576 logic elements, 6,144 bits of on-chip RAM and up to 191 user I/O in a 256-ball FBGA package, providing a compact platform for implementing custom digital functions.

With a 4.75 V to 5.25 V supply range and a 0 °C to 70 °C operating temperature, this surface-mount device targets commercial electronic designs where moderate logic capacity, on-chip memory and flexible I/O count are primary requirements.

Key Features

• Core Logic 576 logic elements and 72 LABs provide mid-density programmable logic capacity for custom digital implementations; device gate equivalence is listed as 31,000 gates.
• Embedded Memory 6,144 bits of total on-chip RAM for small data buffering, state storage and lookup tables.
• I/O and Packaging Up to 191 user I/O lines in a 256-ball FBGA (256-BGA, 17×17) package facilitate multiple peripheral interfaces in a compact footprint.
• Power and Thermal Operates from a 4.75 V to 5.25 V supply and specified for a 0 °C to 70 °C commercial temperature range.
• Mounting and Compliance Surface-mount package with RoHS compliance for lead-free assembly and commercial-grade applications.

Typical Applications

• Prototyping and Development Implement and iterate custom digital logic and control functions during hardware development and proof-of-concept work.
• Consumer and Commercial Electronics Provide configurable glue logic, interface bridging and peripheral control in compact, surface-mount designs.
• Embedded Control Handle custom sequencing, simple state machines and control logic where moderate logic density and modest on-chip RAM suffice.

Unique Advantages

• Balanced Logic and Memory: 576 logic elements combined with 6,144 bits of RAM allow compact implementations of control logic and small data buffering without external memory.
• High I/O Count in Compact Package: 191 I/O pins in a 256-FBGA (17×17) package enable multiple interfaces while preserving PCB area.
• Commercial Temperature Rating: Specified 0 °C to 70 °C operation aligns with typical commercial electronics deployment scenarios.
• RoHS-Compliant Surface-Mount Device: Supports lead-free manufacturing processes and modern assembly workflows.
• Established Vendor: Manufactured by Altera, providing a recognized source for FLEX-10K® family programmable logic.

Why Choose EPF10K100BFC256-2?

The EPF10K100BFC256-2 delivers a practical balance of logic capacity, on-chip RAM and I/O density in a surface-mount 256-FBGA package, making it well suited for commercial designs that need mid-range programmable logic without external memory. Its 4.75 V–5.25 V supply range and commercial temperature rating provide clear deployment parameters for embedded system designers.

Choose this device when you need a compact, RoHS-compliant FPGA from Altera that supports a range of control, interfacing and prototyping tasks while keeping PCB area and BOM complexity low.

Request a quote or submit a sales inquiry to discuss pricing, availability and volume options for the EPF10K100BFC256-2.
