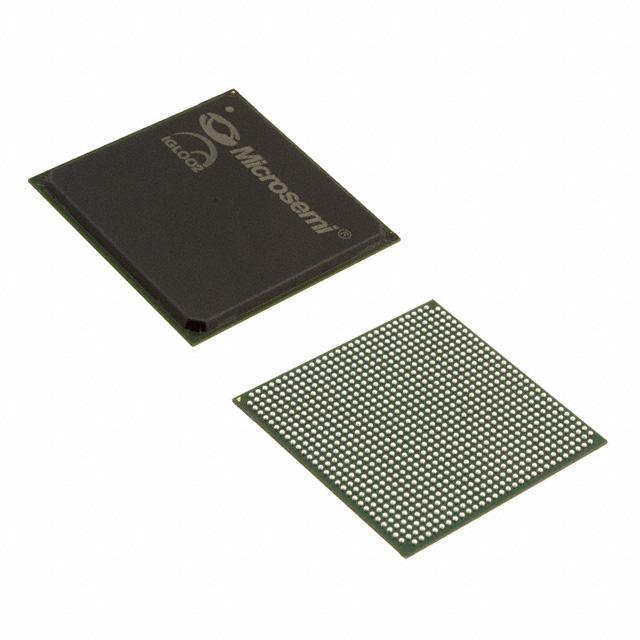

M2GL050T-1FG896

IC FPGA 377 I/O 896FBGA
Part Description

IGLOO2 Field Programmable Gate Array (FPGA) IC 377 1869824 56340 896-BGA

Quantity 1,553 Available (as of October 7, 2026)
Product CategoryField Programmable Gate Array (FPGA)
ManufacturerMicrochip Technology
Manufacturing StatusActive
Manufacturer Standard Lead Time16 Weeks
Datasheet

Specifications & Environmental

Device Package896-FBGA (31x31)GradeCommercialOperating Temperature0°C – 85°C
Package / Case896-BGANumber of I/O377Voltage1.14 V - 2.625 V
Mounting MethodSurface MountRoHS ComplianceRoHS non-compliantREACH ComplianceREACH Unaffected
Moisture Sensitivity Level3 (168 Hours)Number of LABs/CLBs56340Number of Logic Elements/Cells56340
Number of GatesN/AECCN3A991DHTS Code8542.39.0001
QualificationN/ATotal RAM Bits1869824

Overview of M2GL050T-1FG896 – IGLOO2 Field Programmable Gate Array (FPGA) IC 377 1869824 56340 896-BGA

The M2GL050T-1FG896 is a Microchip Technology IGLOO2 flash-based FPGA that combines programmable logic fabric with high-performance communication and memory interfaces. It targets applications that need mid-range logic capacity with integrated DSP, SERDES, and DDR memory controller capabilities while maintaining commercial-grade operating conditions.

Built on the IGLOO2 architecture, this device emphasizes low-power operation, on-chip embedded memory and math resources, and a broad set of I/O standards for designs requiring flexible interfacing and system-level integration.

Key Features

  • Logic Capacity — 56,340 logic elements for implementing complex control, glue logic, or mid-density processing functions.
  • Embedded Memory — Approximately 1.87 Mbits of on-chip RAM (total RAM bits 1,869,824) plus embedded SRAM and nonvolatile memory blocks described in the IGLOO2 family documentation.
  • DSP and Math Resources — IGLOO2 family mathblocks and DSP features described in the datasheet (up to 240 fast mathblocks in family documentation) to accelerate multiply-accumulate and signal processing tasks.
  • High-Speed Serial Interfaces — Family-level SERDES support (up to 16 lanes) and PCI Express/XAUI/XGMII-capable interfaces enable high-throughput serial links for communication-centric designs.
  • High-Speed Memory Interfaces — DDRx memory controller support in the IGLOO2 family (supporting DDR/DDR2/DDR3/LPDDR modes) for external memory expansion and high-bandwidth buffering.
  • I/O and Voltage Range — 377 user I/Os and a documented supply voltage range of 1.14 V to 2.625 V to accommodate multiple I/O standards described in the IGLOO2 family documentation.
  • Clocking — Multiple clock sources and configurable clock conditioning circuits are available in the IGLOO2 family to support varied timing architectures.
  • Security and Reliability — IGLOO2 family security features include encrypted bitstream loading and design protection mechanisms; family documentation also details additional data security options on premium devices.
  • Package and Mounting — Supplied in an 896-FBGA (31 × 31) package / 896-BGA package case; surface-mount mounting type for compact board designs.
  • Commercial Temperature Grade — Rated for 0 °C to 85 °C operation and RoHS compliant.

Typical Applications

  • High-Speed Communications — Implement PHYs, SERDES-based links or PCIe endpoints using the IGLOO2 family’s serial interface capabilities and SERDES lanes.
  • Embedded Signal Processing — Offload DSP tasks and accelerate math-intensive algorithms using the family’s mathblocks and on-chip memory.
  • Memory Interface and Buffering — Use integrated DDRx controller support to manage external DRAM for frame buffering, packet buffering, or mid-tier storage buffering.
  • Secure Embedded Systems — Leverage encrypted bitstream loading and on-device security features for systems that require IP protection and supply-chain assurance.

Unique Advantages

  • Flash-Based, Low-Power Architecture: IGLOO2’s flash-based fabric offers persistent configuration and reduced power draw compared to volatile alternatives described in the family documentation.
  • Integrated DSP and Memory Resources: On-chip mathblocks and approximately 1.87 Mbits of RAM simplify implementation of signal processing and buffering without relying solely on external memory.
  • Rich I/O and High-Speed Interfaces: 377 I/Os combined with family-level SERDES and PCIe/ XAUI support enable flexible system interfacing and high-throughput connectivity.
  • Scalable Memory Options: Built-in support for DDRx memory controllers allows efficient external memory expansion and optimized data movement for bandwidth-sensitive designs.
  • Commercial Temperature and RoHS Compliance: Designed for 0 °C to 85 °C operation and RoHS-compliant manufacturing for mainstream electronic product use.

Why Choose M2GL050T-1FG896?

The M2GL050T-1FG896 delivers a balanced combination of mid-range logic density, substantial on-chip memory, DSP acceleration elements, and extensive I/O capability in an 896-FBGA package. As part of the IGLOO2 family, it provides flash-based configuration, family-level high-speed serial and memory interfaces, and security features that are beneficial for communication, signal-processing, and secure embedded applications.

This device is suited for engineering teams seeking a commercially graded FPGA with integrated memory and communication capabilities that reduce external BOM and support complex interfacing requirements while operating within standard commercial temperature ranges.

Request a quote or submit an inquiry to get pricing, lead-time details, and availability for the M2GL050T-1FG896. Our team can provide the information needed to evaluate this FPGA for your next design.
