MPF100T-FCVG484T2

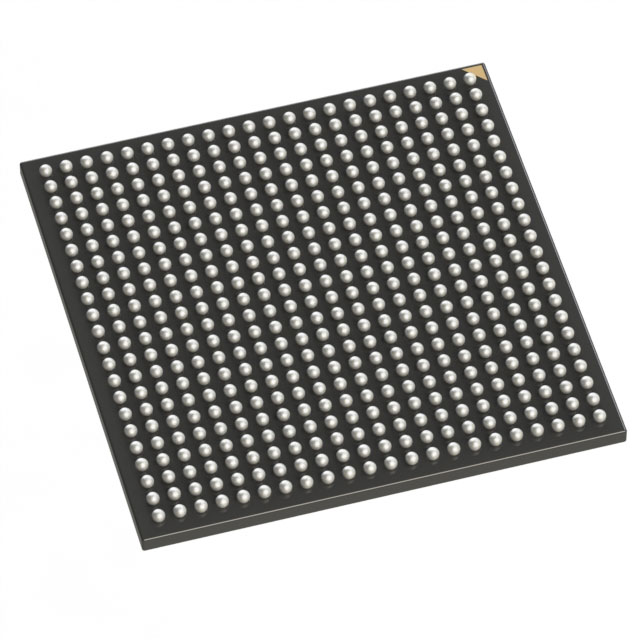

The MPF100T-FCVG484T2 is a PolarFire™ Field Programmable Gate Array (FPGA) IC supplied in a 484-BFBGA package. It provides 109,000 logic elements and approximately 7.97 Mbits of embedded RAM with 284 user I/Os, packaged for surface-mount assembly.

Designed for applications that require high logic density and robust environmental performance, the device is AEC‑Q100 qualified for automotive use and rated for operation from −40°C to 125°C. The device’s core supply range is 0.970 V to 1.08 V and it is RoHS compliant.

Key Features

• Logic Resources — 109,000 logic elements provide substantial on-chip programmable fabric for complex custom logic and control functions.
• Embedded Memory — Approximately 7.97 Mbits of on-chip RAM for buffering, state storage, and local data processing without relying exclusively on external memory.
• I/O and Packaging — 284 user I/Os in a compact 484-BFBGA package (supplier package 484-FBGA, 19×19) optimized for dense signal routing and high connector counts.
• Power — Core voltage supply range of 0.970 V to 1.08 V to match low-voltage system rails.
• Automotive Qualification & Temperature Range — AEC‑Q100 qualification and an operating temperature range of −40°C to 125°C for designs targeting automotive-grade environments.
• Mounting & Compliance — Surface-mount package and RoHS compliance for modern PCB assembly and environmental requirements.

Typical Applications

• Automotive systems — AEC‑Q100 qualification and −40°C to 125°C operating range make the device suitable for vehicle electronics requiring qualified components and wide temperature tolerance.
• High-density embedded systems — Large logic count and substantial on-chip RAM support complex control, protocol processing, and custom acceleration functions in compact designs.
• High I/O interface hubs — 284 I/Os in a 484-BFBGA package enable aggregation and bridging of multiple peripheral interfaces in space-constrained boards.
• Industrial and ruggedized electronics — Extended temperature rating and AEC‑Q100 qualification provide reliability for applications exposed to wide temperature ranges and demanding conditions.

Unique Advantages

• Significant programmable capacity: 109,000 logic elements allow implementation of large, custom hardware functions without immediate external logic.
• Substantial on-chip memory: Approximately 7.97 Mbits of embedded RAM reduces dependence on external memories for buffering and state storage.
• High I/O count in a compact footprint: 284 user I/Os in a 484-BFBGA (19×19) package support dense connectivity while keeping board area low.
• Automotive-grade qualification: AEC‑Q100 qualification plus −40°C to 125°C operation helps meet automotive reliability and environmental requirements.
• Low-voltage core operation: 0.970–1.08 V supply range aligns with contemporary low-voltage system architectures to support power-optimized designs.
• RoHS compliant and surface-mount ready: Meets common environmental standards and assembly processes for modern manufacturing.

Why Choose MPF100T-FCVG484T2?

The MPF100T-FCVG484T2 positions itself as a high-density, automotive‑qualified PolarFire FPGA offering a balance of logic capacity, embedded memory, and a substantial I/O complement in a compact 484-BFBGA package. Its AEC‑Q100 qualification and wide operating temperature range make it suitable for designs that require proven component qualification and environmental tolerance.

This device is appropriate for design teams developing vehicle electronics, dense embedded controllers, or ruggedized systems that need scalable programmable logic, on-chip memory resources, and a high count of I/Os while maintaining low-voltage operation and RoHS compliance.

Request a quote or submit an inquiry for pricing and availability of the MPF100T-FCVG484T2 to evaluate it for your next design.
