XA7A25T-1CPG238I

The XA7A25T-1CPG238I is an Artix-7 XA field programmable gate array (FPGA) in a 238-LFBGA/CSPBGA package, engineered for applications requiring compact, qualified programmable logic. It combines a substantial logic capacity and embedded memory with a 150-pin I/O count and low core voltage to support integration of custom digital functions into space-constrained designs.

Designed and manufactured to meet AEC-Q100 qualification, this device addresses automotive system needs with a wide operating temperature range and surface-mount package options for board-level assembly.

Key Features

• Logic Capacity — 23,360 logic elements provide programmable resources for implementing complex digital logic, state machines, and custom accelerators.
• Embedded Memory — Approximately 1.66 Mbits of on-chip RAM for buffering, state storage, and small data tables without external memory.
• I/O — 150 user I/Os to interface with sensors, actuators, high-speed peripherals, and board-level buses.
• Power — Core voltage supply range of 950 mV to 1.05 V to match system power rails and support efficient core operation.

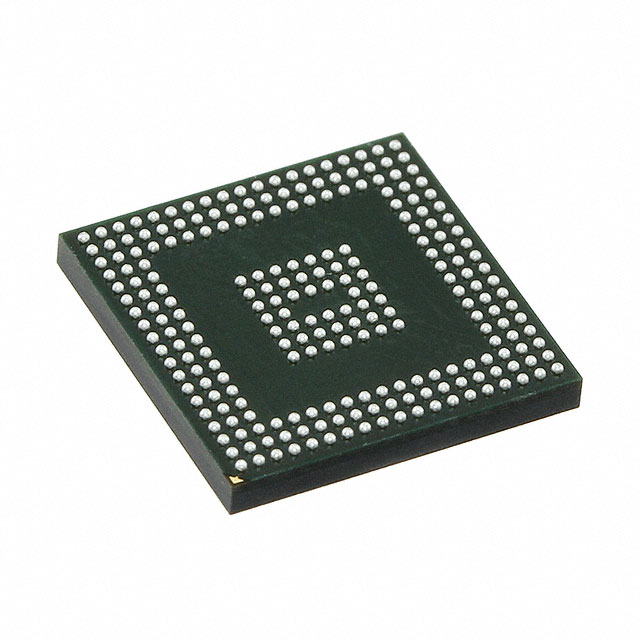

• Package and Mounting — Supplied in a 238-LFBGA / CSPBGA package (supplier device package: 238-CSBGA 10×10) with surface-mount mounting for compact PCB integration.
• Automotive Qualification — Automotive grade with AEC-Q100 qualification and an operating temperature range of −40 °C to 100 °C for deployment in temperature-challenging environments.
• RoHS Compliant — Meets RoHS requirements for lead-free manufacturing and environmental compliance.

Typical Applications

• Automotive Electronic Systems — AEC-Q100 qualification and a −40 °C to 100 °C rating make the device suitable for integration into automotive electronic modules requiring qualified programmable logic.
• In-vehicle Programmable Logic — 23,360 logic elements and 150 I/Os support implementation of custom interfaces, protocol bridging, and control logic within vehicle systems.
• Embedded Automotive Subsystems — Approximately 1.66 Mbits of embedded memory and compact 238-LFBGA packaging enable local data storage and space-efficient board designs for automotive modules.

Unique Advantages

• Qualified for Automotive Use: AEC-Q100 qualification provides documented suitability for automotive electronic applications where qualification is required.
• Balanced Integration: Combined logic capacity, embedded memory, and 150 I/Os reduce the need for additional discrete components and simplify system design.
• Compact Package: 238-LFBGA / CSPBGA package supports high-density board layouts and surface-mount assembly for space-constrained modules.
• Wide Ambient Range: −40 °C to 100 °C operating temperature range supports deployment across typical automotive thermal environments.
• Low Core Voltage Operation: 950 mV to 1.05 V core supply range aligns with modern power architectures to help manage system power budgets.
• Regulatory Compliance: RoHS compliance aids in meeting environmental and manufacturing requirements.

Why Choose XA7A25T-1CPG238I?

The XA7A25T-1CPG238I positions itself as a qualified, compact FPGA option for designs that require a balance of programmable logic, embedded memory, and a moderate I/O count within an automotive-capable package. Its AEC-Q100 qualification, extended temperature rating, and surface-mount 238-LFBGA packaging make it suitable for vehicle electronics and other temperature-challenged applications where qualified programmable logic is needed.

For engineering teams targeting scalable, robust designs, this Artix-7 XA device provides on-chip resources that reduce external component count while offering the programmability to adapt and evolve functions across product iterations.

Request a quote or submit an inquiry to receive pricing, availability, and integration support for the XA7A25T-1CPG238I.
