XA7A50T-2CPG236I

The XA7A50T-2CPG236I is an Artix-7 XA field programmable gate array (FPGA) in a 238-ball LFBGA/CSPBGA package. It provides a balance of on-chip logic capacity, embedded memory, and I/O in a surface-mount package targeted at applications that require integrated, programmable logic.

Key characteristics include approximately 52,160 logic elements, roughly 2.76 Mbits of embedded memory, 106 I/O, a 0.95 V–1.05 V core supply range, and an operating temperature span of −40 °C to 100 °C. The device is automotive grade and qualified to AEC-Q100.

Key Features

• Logic Capacity  Approximately 52,160 logic elements to implement custom combinational and sequential logic functions.
• Embedded Memory  Approximately 2.76 Mbits of on-chip RAM for buffering, lookup tables, and state storage within the FPGA fabric.
• Programmable I/O  106 available I/O pins to interface with external devices and peripherals.
• Power and Core Supply  Core voltage range of 0.95 V to 1.05 V to match system power rails and enable predictable power delivery.

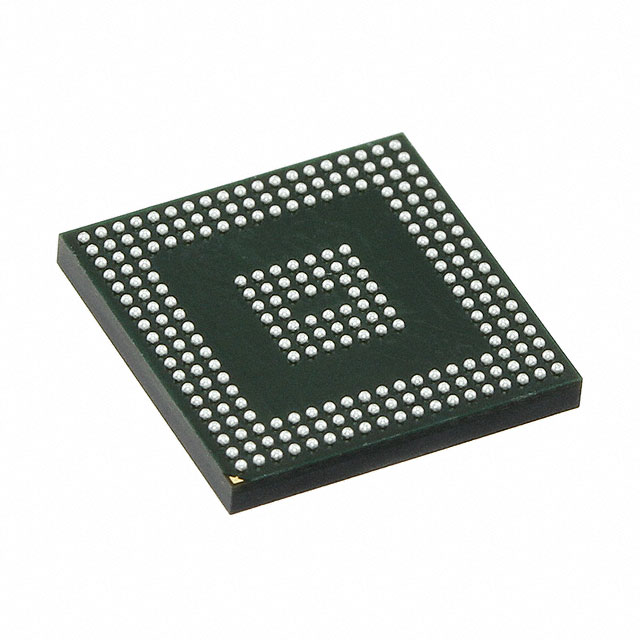

• Package and Mounting  238-LFBGA / CSPBGA package (supplier device package: 238-CSBGA, 10×10) with surface-mount mounting for compact PCB integration.
• Automotive Qualification  Automotive grade device with AEC-Q100 qualification for use in applications requiring industry-recognized automotive qualification.
• Operating Temperature  Rated for −40 °C to 100 °C operation to support a wide range of environmental conditions.
• RoHS Compliant  Manufactured in compliance with RoHS requirements.

Typical Applications

• Automotive systems  Automotive-qualified designs that require programmable logic validated to AEC-Q100 and an extended operating temperature range.
• Embedded control and custom logic  Designs that need approximately 52,160 logic elements and ~2.76 Mbits of embedded memory with flexible I/O counts for implementing custom datapaths and control logic.
• Compact board-level integration  Surface-mount PCB designs that benefit from a 238-ball LFBGA/CSPBGA package and a compact 10×10 supplier package footprint.

Unique Advantages

• Automotive-ready qualification: AEC-Q100 qualification and automotive grade designation enable deployment in vehicle electronics and related systems requiring qualified components.
• Substantial on-chip resources: Approximately 52,160 logic elements combined with ~2.76 Mbits of embedded memory provide significant capacity for mid-range programmable logic designs.
• Flexible I/O: 106 user I/O pins allow connection to a wide variety of external devices and peripherals without adding external interface logic.
• Compact, surface-mount package: 238-LFBGA/CSPBGA packaging and a 10×10 supplier device footprint support space-constrained PCB layouts.
• Wide operating range: −40 °C to 100 °C rating supports deployment across demanding environmental conditions.
• Regulatory compliance: RoHS compliance simplifies use in designs requiring restricted-substance conformance.

Why Choose XA7A50T-2CPG236I?

The XA7A50T-2CPG236I positions itself as a robust mid-range Artix-7 FPGA option that combines a significant logic resource set and embedded memory with automotive-grade qualification. Its package and surface-mount form factor make it suitable for compact system designs that require programmable logic, deterministic I/O, and extended temperature operation.

This device is well suited for design teams and procurement seeking a qualified FPGA offering predictable electrical characteristics (0.95 V–1.05 V core supply), a clear thermal rating (−40 °C to 100 °C), and the on-chip resources needed to implement custom logic without excessive external components. Its qualification and compliance attributes support long-term deployment in regulated and environmentally demanding applications.

Request a quote or submit your requirements to receive pricing and availability information for XA7A50T-2CPG236I.
