XC5VLX220T-2FFG1738C

The XC5VLX220T-2FFG1738C is a Virtex-5 LXT field programmable gate array (FPGA) optimized for high-density programmable logic designs. It combines a large logic capacity with substantial on-chip memory and a high I/O count, making it suitable for complex board-level systems that require extensive logic resources and connectivity.

Key Features

• Core Logic  Provides 221,184 logic elements for implementing large-scale programmable logic and custom digital functions.
• Embedded Memory  Approximately 7.8 Mbits of total on-chip RAM to support data buffering, FIFOs, and memory-intensive logic functions.
• I/O Density  680 I/O pins to support dense connectivity and multiple external interfaces.
• Configurable Logic Blocks  17280 CLBs (configurable logic blocks) for flexible LUT- and register-based design architectures.
• Power  Operates from a core voltage supply range of 950 mV to 1.05 V for the device core.

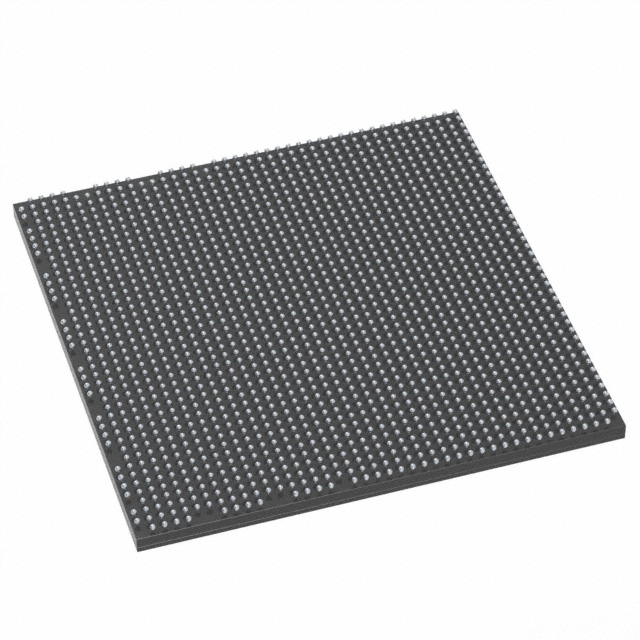

• Package and Mounting  Delivered in a 1738-BBGA FCBGA package (1738-FCBGA, 42.5×42.5) with surface-mount mounting suitable for compact, high-pin-count PCB layouts.
• Operating Range  Commercial temperature grade with an operating range of 0 °C to 85 °C.
• RoHS Compliant  Manufactured in compliance with RoHS requirements.

Typical Applications

• High-density logic designs  Large programmable logic implementations that require extensive logic elements and CLBs to realize complex algorithms and datapaths.
• Memory-intensive functions  Designs needing embedded RAM for buffering, packet storage, or intermediate data processing, leveraging approximately 7.8 Mbits of on-chip memory.
• High I/O systems  Board-level systems that require many external connections or parallel interfaces, taking advantage of 680 available I/Os.
• Compact, high-pin-count boards  Applications where a high-density FCBGA (1738-FCBGA, 42.5×42.5) package and surface-mount assembly are preferred for PCB real estate optimization.

Unique Advantages

• High logic capacity: 221,184 logic elements enable implementation of large, complex designs without partitioning across multiple devices.
• Substantial on-chip memory: Approximately 7.8 Mbits of embedded RAM reduces external memory requirements and simplifies memory architecture.
• Extensive I/O connectivity: 680 I/Os support multiple interfaces and parallel data paths, minimizing the need for external I/O expanders.
• Compact packaging for dense boards: 1738-FCBGA package offers a high pin-count in a compact footprint to help reduce board area.
• Commercial-grade operation: Rated for 0 °C to 85 °C to meet typical commercial deployment environments.
• RoHS compliance: Aligns with environmental regulations for lead-free manufacturing processes.

Why Choose XC5VLX220T-2FFG1738C?

The XC5VLX220T-2FFG1738C positions itself as a high-capacity Virtex-5 LXT FPGA that delivers significant programmable logic, on-chip memory, and I/O resources in a compact FCBGA package. It is well suited for engineers and system designers who need to consolidate complex digital functions onto a single device while preserving board space and I/O density.

For projects requiring scalable logic capacity, substantial embedded RAM, and commercial-grade operating range, this device provides a balanced combination of integration and performance that supports medium- to large-scale FPGA-based system designs.
