XC5VLX30-1FF324I

The XC5VLX30-1FF324I is a Virtex®-5 LX field-programmable gate array (FPGA) IC designed for industrial applications. It combines a mid-range logic capacity with on-chip memory and a high I/O count to enable custom, deterministic hardware implementations in harsh environments.

Key architectural attributes include 2,400 configurable logic blocks (CLBs) delivering 30,720 logic elements, approximately 1.18 Mbits of embedded RAM, and 220 user I/O pins, all in a 324-FCBGA (19×19) package with an industrial operating temperature range.

Key Features

• Core Logic 2,400 CLBs providing 30,720 logic elements for implementing custom finite-state machines, datapaths, and control logic.
• Embedded Memory Approximately 1.18 Mbits of on-chip RAM to support buffering, FIFOs and small data tables without external memory.
• I/O Capacity 220 user I/O pins to interface directly with multiple peripherals, buses, and external devices.

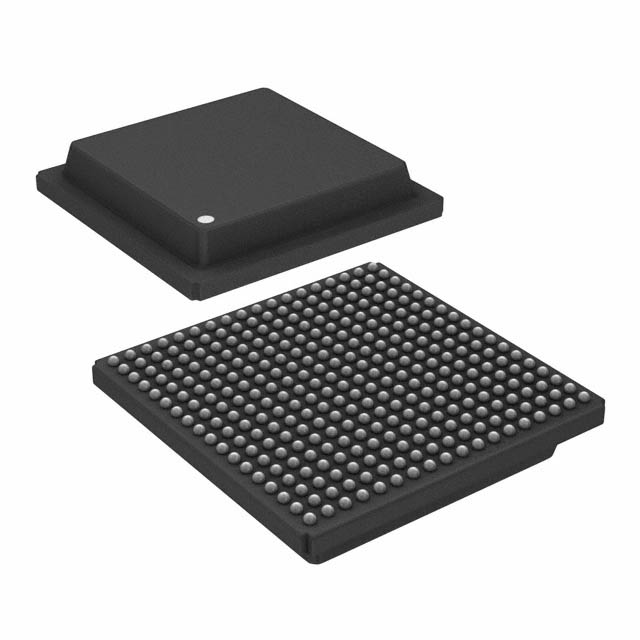

• Package 324-ball FCBGA (19×19) package for a compact, high-density board footprint suitable for space-constrained designs.
• Power Core voltage supply range from 950 mV to 1.05 V, enabling integration with appropriate power delivery architectures.
• Temperature and Grade Industrial-grade device with an operating temperature range of −40°C to 100°C for deployment in demanding environments.
• Environmental Compliance RoHS compliant, supporting regulatory requirements for lead-free assemblies.

Typical Applications

• Industrial Control Systems Implement deterministic control logic and custom state machines using the device's 30,720 logic elements and industrial temperature range.
• Embedded Processing and Acceleration Use on-chip RAM and abundant logic resources to offload compute-critical functions and accelerate deterministic tasks.
• High-Density I/O Interfaces Leverage 220 I/O pins to aggregate sensors, actuators, and peripheral buses in compact, integrated designs.
• Prototyping and Custom FPGA Designs Mid-range capacity and a compact 324-FCBGA package make the device suitable for developing and validating custom hardware implementations.

Unique Advantages

• Balanced Logic and Memory 30,720 logic elements combined with approximately 1.18 Mbits of embedded RAM enable complex logic and local data storage without immediate dependence on external memory.
• High I/O Count 220 user I/Os reduce the need for external multiplexing, simplifying board-level integration with multiple peripherals.
• Industrial Qualification Specified for −40°C to 100°C operation and listed as industrial grade, supporting deployment in temperature-demanding applications.
• Compact, High-Density Package The 324-FCBGA (19×19) package delivers high pin density in a compact footprint for space-constrained systems.
• Regulatory Compliance RoHS compliance facilitates adoption in lead-free manufacturing environments.
• Manufacturer Backing Produced by AMD, offering continuity of supply and established product support channels.

Why Choose XC5VLX30-1FF324I?

The XC5VLX30-1FF324I positions itself as a mid-range Virtex®-5 LX FPGA that combines substantial logic capacity, embedded memory and a high I/O count in a compact FCBGA package. Its industrial temperature rating and RoHS compliance make it suitable for designs that require reliable operation in demanding conditions while staying aligned with environmental requirements.

This device is well suited for engineers and procurement teams looking for a programmable, industrial-grade FPGA solution from AMD that balances integration, I/O density, and on-chip resources for custom hardware implementations and prototypes.

Request a quote or submit an inquiry to obtain pricing and availability information for the XC5VLX30-1FF324I.
