XC5VLX30-1FFG324C

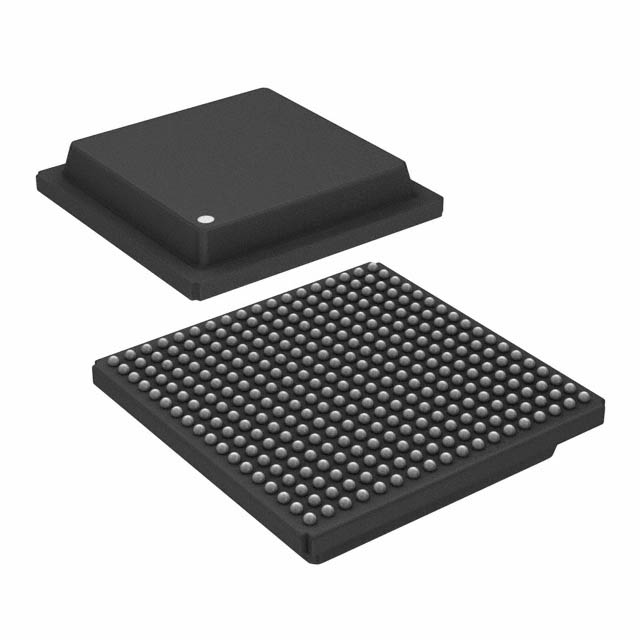

The XC5VLX30-1FFG324C is a Virtex®-5 LX field programmable gate array (FPGA) packaged in a 324-ball FCBGA (19×19) surface-mount package. It delivers a combination of programmable logic capacity, embedded RAM, and high I/O count for commercial electronic designs.

Key on-chip resources include 30,720 logic elements and approximately 1.18 Mbits of on-chip RAM, with up to 220 user I/O signals. The device operates from a 0.95 V to 1.05 V supply and is specified for commercial temperature operation from 0 °C to 85 °C. The part is RoHS compliant.

Key Features

• Core Logic 30,720 logic elements (cells) for implementing custom digital functions and control logic.
• Embedded Memory Approximately 1.18 Mbits of on-chip RAM available for data buffering, FIFOs, and small algorithm state storage.
• I/O Capacity Up to 220 user I/O pins to support multiple external interfaces and parallel connectivity requirements.
• Power and Voltage Core supply range of 0.95 V to 1.05 V to match system power domains and regulator designs.
• Package & Mounting 324-BBGA / 324-FCBGA (19×19) surface-mount package for compact board layouts and high-density implementations.
• Operating Range & Compliance Commercial-grade temperature range of 0 °C to 85 °C and RoHS compliance for environmental compatibility.

Typical Applications

• Custom Digital Logic and Prototyping Use the 30,720 logic elements to implement and iterate custom logic, state machines, and prototype subsystems.
• I/O-Intensive Systems The 220 I/O pins enable designs that require multiple external interfaces, sensor arrays, or parallel data paths.
• On-Chip Memory Requirements Approximately 1.18 Mbits of embedded RAM support buffering, small data stores, and streaming data operations.
• Compact, High-Density Boards The 324-FCBGA (19×19) package and surface-mount mounting suit space-constrained, high-density PCB layouts.

Unique Advantages

• Balanced Logic and Memory: 30,720 logic elements paired with ~1.18 Mbits of RAM provides a balance of compute and local storage for mixed-function designs.
• High I/O Count: 220 I/Os reduce the need for external I/O expanders and simplify connectivity to peripherals and sensors.
• Compact Packaging: 324-FCBGA (19×19) enables dense board integration while preserving ample signal routing resources.
• Commercial Temperature Rating: Specified operation from 0 °C to 85 °C for mainstream commercial product deployments.
• Regulatory Compatibility: RoHS-compliant construction supports environmental and manufacturing requirements.

Why Choose XC5VLX30-1FFG324C?

The XC5VLX30-1FFG324C positions itself as a capable Virtex-5 LX FPGA option for commercial electronic designs that need a substantial logic fabric, meaningful on-chip RAM, and a high I/O count in a compact FCBGA package. Its combination of 30,720 logic elements, approximately 1.18 Mbits of embedded memory, and 220 I/Os makes it suitable for developers and OEMs implementing complex digital functions, interface-rich systems, and space-conscious board layouts.

Designed for commercial temperature operation and RoHS compliance, this device provides a predictable platform for product development where integration density, memory, and I/O capacity are primary considerations.

Request a quote or submit an inquiry to receive pricing and availability information for the XC5VLX30-1FFG324C.
