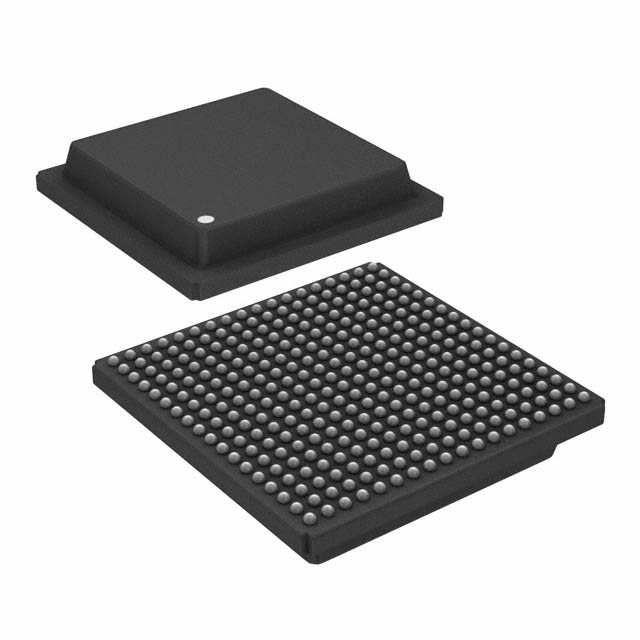

XC5VLX30-1FFG324CES
| Part Description |
Virtex®-5 LX Field Programmable Gate Array (FPGA) IC 220 1179648 30720 324-BBGA, FCBGA |
|---|---|
| Quantity | 192 Available (as of October 7, 2026) |
| Product Category | Field Programmable Gate Array (FPGA) |
|---|---|
| Manufacturer | AMD |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | Contact Us |
| Datasheet |
Specifications & Environmental
| Device Package | 324-FCBGA (19x19) | Grade | Commercial | Operating Temperature | 0°C – 85°C | ||
|---|---|---|---|---|---|---|---|
| Package / Case | 324-BBGA, FCBGA | Number of I/O | 220 | Voltage | 950 mV - 1.05 V | ||
| Mounting Method | Surface Mount | RoHS Compliance | Unknown | REACH Compliance | REACH Unaffected | ||
| Moisture Sensitivity Level | 4 (72 Hours) | Number of LABs/CLBs | 2400 | Number of Logic Elements/Cells | 30720 | ||
| Number of Gates | N/A | ECCN | 3A991D | HTS Code | 8542.39.0001 | ||
| Qualification | N/A | Total RAM Bits | 1179648 |
Overview of XC5VLX30-1FFG324CES – Virtex®-5 LX Field Programmable Gate Array (FPGA) IC 220 1179648 30720 324-BBGA, FCBGA
The XC5VLX30-1FFG324CES is a Virtex®-5 LX Field Programmable Gate Array (FPGA) from AMD, delivered in a 324-FCBGA surface-mount package. This commercial-grade FPGA integrates a large pool of programmable logic, on-chip embedded memory, and abundant I/O to support complex digital designs.
Key attributes include 30,720 logic elements, approximately 1.18 Mbits of embedded memory, and 220 I/O pins, all supplied within a 324-ball FCBGA (19×19) footprint and specified for operation from 0 °C to 85 °C.
Key Features
- Logic Capacity – 30,720 logic elements providing a substantial resource pool for implementing custom digital functions and state machines.
- Configurable Logic Blocks (CLBs) – 2,400 CLBs for structured placement of combinational and sequential logic.
- Embedded Memory – Approximately 1.18 Mbits of embedded memory (1,179,648 bits) to support buffering, FIFOs, and on-chip data storage.
- I/O Density – 220 general-purpose I/O pins to accommodate multiple parallel interfaces and connectivity requirements.
- Power Supply Range – Voltage supply range of 950 mV to 1.05 V to match system power rails and device core requirements.
- Package & Mounting – 324-ball FCBGA (324-BBGA) in a 19×19 format, designed for surface-mount assembly.
- Commercial Temperature Grade – Rated for operation from 0 °C to 85 °C, suitable for commercial applications.
- RoHS Compliant – Conforms to RoHS environmental requirements.
Typical Applications
- Custom digital logic and prototyping – Use the FPGA’s 30,720 logic elements and 2,400 CLBs to implement user-defined logic, algorithm acceleration, and design validation.
- Embedded systems – Leverage approximately 1.18 Mbits of embedded memory and 220 I/O for data buffering, control logic, and peripheral interfacing in commercial embedded designs.
- High-density interface consolidation – Consolidate multiple I/O functions into a single 324-FCBGA device to reduce board complexity in compact surface-mount layouts.
Unique Advantages
- High logic and memory integration: 30,720 logic elements combined with approximately 1.18 Mbits of embedded memory enable sizable designs without external memory for many functions.
- Ample I/O count: 220 I/O pins allow flexible interfacing to multiple parallel buses, sensors, and peripherals.
- Compact package: 324-FCBGA (19×19) provides a dense, surface-mount footprint that supports high-pin-count designs in space-constrained assemblies.
- Commercial-grade suitability: Rated for 0 °C to 85 °C, aligning with standard commercial application environments.
- Regulatory compliance: RoHS compliance helps meet environmental requirements for commercial products.
Why Choose XC5VLX30-1FFG324CES?
The XC5VLX30-1FFG324CES balances substantial programmable logic capacity, embedded memory, and I/O density in a single commercial-grade FCBGA package. It is well suited for designers who require a high level of on-chip resources for custom digital implementations while maintaining a compact surface-mount footprint.
With AMD’s Virtex-5 LX architecture and the documented device specifications, this FPGA is a practical choice for commercial embedded designs that need significant logic, local memory, and flexible I/O in a RoHS-compliant package.
Request a quote or submit an inquiry to receive pricing, availability, and lead-time information for the XC5VLX30-1FFG324CES.
