XC7A12T-L2CPG238E

The XC7A12T-L2CPG238E is an Artix-7 Field Programmable Gate Array (FPGA) IC from AMD. It provides 12,800 logic elements, approximately 737,280 bits of on-chip RAM, and 106 general-purpose I/O in a 238-LFBGA surface-mount package.

Designed as an extended-grade component with an operating range of 0 °C to 100 °C and a core supply range of 950 mV to 1.05 V, this device targets mid-density programmable-logic designs that require a compact package and a balanced mix of logic, memory, and I/O resources.

Key Features

• Core Architecture  Artix-7 Field Programmable Gate Array (FPGA) family device featuring 12,800 logic elements for mid-density logic implementation.
• Configurable Logic Blocks (CLBs)  Approximately 1,000 CLBs to structure programmable logic and implement custom datapaths.
• Embedded Memory  Approximately 737,280 bits of on-chip RAM for buffering, packet storage, and local data processing.
• I/O Resources  106 user I/O pins to connect peripherals, sensors, and interfaces directly to the FPGA fabric.
• Power  Core voltage supply range from 950 mV to 1.05 V to support controlled power planning and power-domain design.

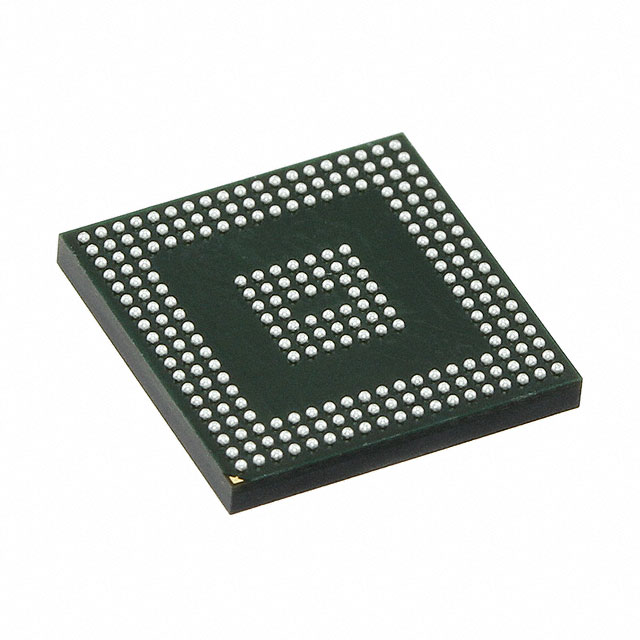

• Package & Mounting  238-LFBGA (238-CSBGA, 10×10) surface-mount package for compact board integration.
• Temperature & Grade  Extended-grade device rated for operation from 0 °C to 100 °C.
• Environmental Compliance  RoHS compliant.

Typical Applications

• Custom Logic and Hardware Acceleration  Implement mid-density custom accelerators and datapaths using 12,800 logic elements and on-chip RAM.
• I/O-Intensive Control and Interface  Use the 106 I/O pins to aggregate multiple peripheral interfaces, sensor connections, or control signals.
• Prototyping and System Integration  Compact 238-LFBGA package and surface-mount form factor simplify board-level prototyping and integration for FPGA-based designs.

Unique Advantages

• Balanced Logic and Memory:  12,800 logic elements paired with approximately 737,280 bits of embedded memory enable mid-sized designs without external RAM for many functions.
• High I/O Count in a Compact Package:  106 I/O pins in a 238-LFBGA (10×10) package reduce board area while preserving connectivity options.
• Predictable Power Envelope:  A defined core voltage range of 950 mV to 1.05 V supports reliable power budgeting and domain planning.
• Extended-Grade Operation:  Rated 0 °C to 100 °C for applications that require wider operating temperature margins than standard commercial parts.
• RoHS Compliant:  Environmentally compliant manufacturing and end-of-life handling.

Why Choose XC7A12T-L2CPG238E?

The XC7A12T-L2CPG238E provides a balanced combination of logic capacity, on-chip memory, and I/O in a compact 238-LFBGA surface-mount package. Its extended-grade temperature rating and defined supply range make it a practical choice for mid-density programmable-logic designs that need a stable platform for integration.

This Artix-7 FPGA device is suitable for engineers and procurement teams seeking a mid-tier FPGA option that delivers measurable logic resources, embedded RAM, and substantial I/O without increasing board footprint or complexity.

Request a quote or submit a price inquiry to check availability and get pricing for the XC7A12T-L2CPG238E.
