XC7A35T-2CPG236C

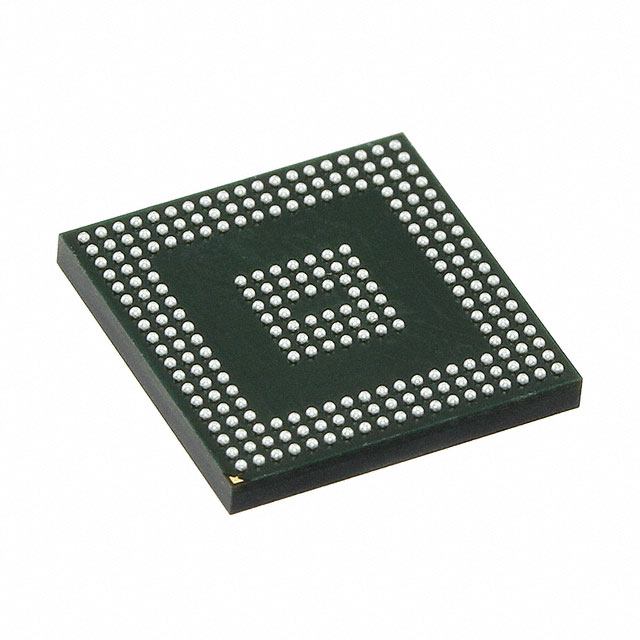

The XC7A35T-2CPG236C is an AMD Artix-7 Field Programmable Gate Array provided in a 238-LFBGA CSPBGA package. It delivers a configurable logic fabric with a substantial number of logic elements and on-chip RAM, suitable for commercial embedded designs that require programmable hardware resources and flexible I/O.

Key on-chip resources include approximately 33,280 logic elements, roughly 1.84 Mbits of embedded RAM, and 106 user I/O signals, enabling a range of custom logic, buffering and interface tasks within a compact surface-mount footprint.

Key Features

• Core logic  Approximately 33,280 logic elements (2,600 CLBs) for implementing custom digital logic and glue logic.
• Embedded memory  Approximately 1.84 Mbits of on-chip RAM to support local buffering, FIFOs and small data storage without immediate external memory.
• I/O capability  106 user I/Os to connect sensors, peripherals, and external interfaces directly to the FPGA fabric.
• Power  Core supply range of 0.95 V to 1.05 V to match low-voltage FPGA core domains.
• Package and mounting  238-LFBGA (238-CSBGA, 10×10) surface-mount package for dense PCB integration.
• Operating range  Commercial temperature grade with an operating range of 0 °C to 85 °C.
• Compliance  RoHS compliant.

Typical Applications

• Embedded control and prototyping  Implement custom control logic and rapid hardware prototypes using the device's logic capacity and on-chip RAM.
• Interface bridging and I/O expansion  Leverage 106 user I/Os to adapt, aggregate, or translate multiple peripheral interfaces on a compact board footprint.
• Custom hardware acceleration  Offload dedicated functions into programmable logic using the available logic elements and embedded memory for local data handling.
• Sensor interfacing and data acquisition  Combine the I/O count and on-chip RAM to capture, buffer, and pre-process sensor data within a single FPGA package.

Unique Advantages

• Programmable capacity: Approximately 33,280 logic elements provide substantial room for implementing complex custom logic without external ASICs.
• On-chip memory: Roughly 1.84 Mbits of embedded RAM reduces dependence on external memory for many buffering and temporary storage needs.
• Generous I/O count: 106 user I/Os enable multi-peripheral and multi-channel designs on a single device.
• Compact, surface-mount package: 238-LFBGA (238-CSBGA, 10×10) supports high-density PCB layouts and automated assembly.
• Commercial temperature rating: Operates from 0 °C to 85 °C, matching common commercial deployment environments.
• Low-voltage core support: 0.95 V to 1.05 V supply accommodates low-core-voltage FPGA designs.

Why Choose XC7A35T-2CPG236C?

The XC7A35T-2CPG236C positions itself as a flexible, commercially graded Artix-7 FPGA option for designs that require a balance of logic density, embedded memory and a solid I/O complement in a compact package. Its combination of approximately 33,280 logic elements, ~1.84 Mbits of on-chip RAM and 106 I/Os makes it well suited for embedded systems, interface consolidation, and hardware-accelerated functions where board space and integration matter.

Choosing this part provides a scalable programmable platform for teams developing commercial electronic products that need configurable logic and local memory resources while maintaining RoHS compliance and standard commercial operating range.

Request a quote or contact sales to inquire about pricing and availability for the XC7A35T-2CPG236C.
