XC7VX690T-1FFG1158C

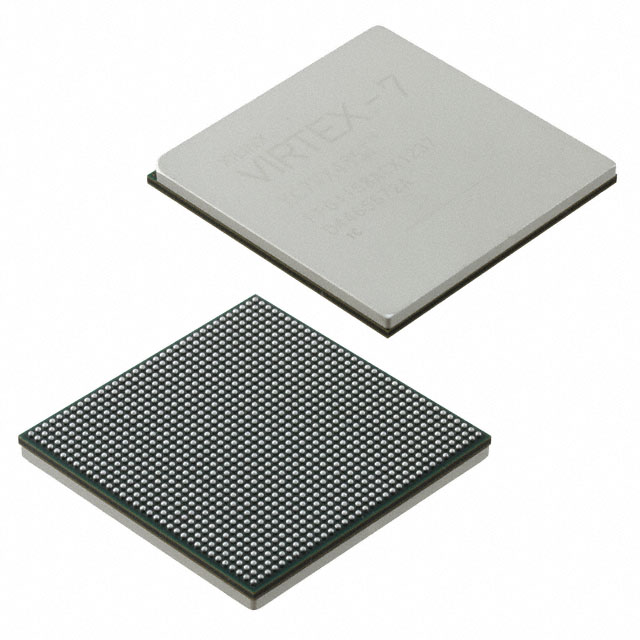

The XC7VX690T-1FFG1158C is a Virtex®-7 XT field programmable gate array (FPGA) IC from AMD. It delivers a large programmable fabric with 693,120 logic elements and approximately 54.19 Mbits of embedded memory, making it suitable for designs that require high logic density and substantial on-chip RAM.

This surface-mount, commercial-grade device provides 350 I/O pins in an FCBGA package and operates from a core supply range of 970 mV to 1.03 V with an operating temperature range of 0 °C to 85 °C.

Key Features

• Core Logic Capacity — 693,120 logic elements enable complex programmable logic implementations and large-scale designs.
• Embedded Memory — Approximately 54.19 Mbits of on-chip RAM for buffering, data storage, and memory-intensive functions.
• I/O Resources — 350 programmable I/O pins to support extensive board-level interfacing and multiple external signals.
• Package and Mounting — Available in a 1156-BBGA FCBGA package; supplier device package listed as 1158-FCBGA (35×35). Surface-mount mounting type facilitates modern PCB assembly.
• Power — Core voltage supply range from 970 mV to 1.03 V, supporting specified core power requirements.
• Operating Range — Commercial-grade operation with an operating temperature range of 0 °C to 85 °C.
• Compliance — RoHS compliant.

Typical Applications

• High-density programmable logic — Implement large-scale custom logic and complex state machines using the device's extensive logic-element count.
• Memory-intensive designs — Use the approximately 54.19 Mbits of embedded memory for buffering, frame storage, or local data processing.
• I/O-rich board-level systems — Leverage 350 I/Os for multi-channel interfaces, peripheral aggregation, or extensive signal routing.
• Compact, surface-mount systems — The FCBGA package and surface-mount mounting simplify integration into compact, high-density PCB layouts.

Unique Advantages

• High logic density: 693,120 logic elements provide the capacity needed for complex designs and integration of multiple functions on a single device.
• Substantial embedded memory: Approximately 54.19 Mbits of on-chip RAM reduce reliance on external memory and simplify board-level design.
• Extensive I/O count: 350 I/O pins enable wide-ranging connectivity and flexible interfacing options without external multiplexing.
• Compact FCBGA packaging: 1156-BBGA / 1158-FCBGA (35×35) packaging supports compact system layouts and surface-mount assembly processes.
• Commercial-grade operation: Rated for 0 °C to 85 °C operation and RoHS compliance for standard commercial applications.
• Controlled core voltage range: Core supply specified from 970 mV to 1.03 V for predictable power provisioning.

Why Choose XC7VX690T-1FFG1158C?

The XC7VX690T-1FFG1158C offers a combination of large programmable logic capacity, significant on-chip memory, and a high I/O count in a compact FCBGA surface-mount package. These characteristics make it well suited for commercial designs that require dense logic, local memory, and extensive interfacing while maintaining a controlled operating voltage and temperature envelope.

Manufactured by AMD, this Virtex®-7 XT FPGA is intended for designers seeking a single-device solution to implement complex, memory-rich, and I/O-intensive functions on a commercial-grade platform.

Request a quote or submit an inquiry to receive pricing and availability details for the XC7VX690T-1FFG1158C and to discuss how this FPGA can meet your design requirements.
