EMMC32G-IX29-8AD01

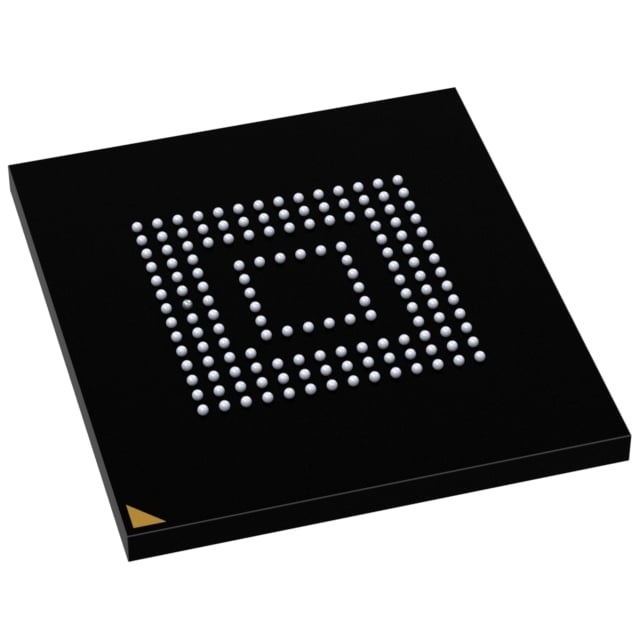

The EMMC32G-IX29-8AD01 is a packaged managed NAND flash memory device implementing the e•MMC™ 5.1 interface. It integrates triple-level cell (TLC) NAND flash with an onboard e•MMC controller to provide industry-standard storage and media management in a single 153-ball FBGA package.

Targeted for commercial and industrial applications, this device simplifies host design by handling flash error control, wear‑leveling, data management and performance optimization while providing a robust, backward-compatible e•MMC interface.

Key Features

• Core/Interface  Packaged managed NAND with e•MMC™ 5.1 interface; backward compatible with prior e•MMC specification revisions and compliant with JEDEC JESD84-B51.
• Memory  256 Gbit total capacity organized as 32G × 8 using TLC NAND flash for high-density non-volatile storage.
• Performance Modes  Supports multiple bus modes including single data transfer up to 52 MB/s (8-bit @ 52 MHz), DDR-104 up to 104 MB/s, HS-200 up to 200 MB/s (@200 MHz), and HS-400 up to 400 MB/s (@200 MHz).
• Bus Flexibility  Ten-wire bus with support for 1-bit, 4-bit and 8-bit data widths, variable clock frequencies 0–200 MHz, optional hardware reset and alternate boot operation mode.
• Power and Supply  VCCQ supported at 1.8 V or 3.3 V and VCC = 3.3 V for interface and core supply options.
• Reliability and Data Integrity  Internal ECC, Cyclic Redundancy Code (CRC) for command/data communication, enhanced write protection (permanent and partial), data protection for sudden power failure during program operations, and secure bad block erase commands.
• Device Management & Security  Features include field firmware update (FFU), device health report, production state awareness, RPMB throughput improvements, command queuing, cache flushing report and cache barrier support.
• Package & Temperature  153-ball JEDEC FBGA package (11.5 × 13 mm) and industrial Tcase range from −40 °C to +85 °C; storage temperature −40 °C to +85 °C. The datasheet notes RoHS compliance for the FBGA package.

Typical Applications

• Commercial devices  Provides standardized onboard storage for commercial electronics requiring managed NAND and a JEDEC e•MMC interface.
• Industrial systems  Industrial Tcase range and managed flash features make it suitable for industrial equipment needing reliable non-volatile storage.
• Device boot and firmware storage  Supports alternate boot operation mode and field firmware update (FFU) for systems that require a simple boot sequence and in-field firmware management.

Unique Advantages

• Highly integrated solution: Combines TLC NAND and an onboard e•MMC controller to offload flash management tasks from the host.
• Standards-based compatibility: Implements e•MMC™ 5.1 and maintains backward compatibility with prior revisions for interface longevity.
• Flexible performance modes: Multiple transfer modes (SDR, DDR, HS-200, HS-400) and selectable bus widths enable designers to match bandwidth to system needs.
• Robust data integrity features: Internal ECC, CRC, write protection options and sudden power-failure protection improve storage reliability.
• Industrial temperature support: −40 °C to +85 °C Tcase rating supports deployment in a wide range of operating environments.
• Compact JEDEC FBGA package: 153-ball FBGA (11.5 × 13 mm) minimizes board area while providing a standardized physical footprint.

Why Choose EMMC32G-IX29-8AD01?

The EMMC32G-IX29-8AD01 offers a compact, standards-based storage solution that pairs high-density TLC NAND with an integrated e•MMC controller to simplify system integration and media management. Its support for multiple high-speed transfer modes, robust data-protection features and industrial operating temperatures make it well suited for commercial and industrial designs that require managed, reliable non-volatile storage.

Backward compatibility with prior e•MMC revisions and JEDEC compliance help ensure interface stability and ease of product sustainment across future NAND generations, providing a predictable path for long-term deployments.

Request a quote or contact sales to discuss pricing, availability and how EMMC32G-IX29-8AD01 can fit into your next design.
