EMMC08G-ML36-01B00

The EMMC08G-ML36-01B00 is an 8GB packaged managed NAND flash device implementing the e•MMC™ 5.1 standard. It combines multi-level cell (MLC) NAND flash memory with an onboard e•MMC controller to provide a standard host interface and integrated flash management.

Designed for commercial and industrial storage roles, the device relieves host processors of NAND management tasks such as error control, wear-leveling and performance optimization while maintaining backward compatibility with prior e•MMC revisions.

Key Features

• Core  Packaged managed NAND flash with an onboard e•MMC 5.1 controller that implements flash media management functions.
• Memory  8GB capacity (MLC NAND) with memory organization reported as 8G × 8 and support for multiple user data partitions.
• Interface & Bus Modes  e•MMC interface supporting 1-bit, 4-bit and 8-bit bus widths; ten-wire bus (clock, 1-bit command, 8-bit data) with optional hardware reset.
• Performance Modes  Supports e•MMC transfer modes including single data rate up to 52MB/s, DDR-104 up to 104MB/s, HS-200 up to 200MB/s and HS-400 up to 400MB/s (per e•MMC specifications).
• Power  Operating voltage range includes VCCQ = 1.8 V / 3.3 V and VCC = 3.3 V; overall supported supply range 1.8 V to 3.3 V.
• Reliability & Data Integrity  Internal ECC, CRC-protected command/data communication, enhanced data management, sudden power-failure protection, secure bad block erase and enhanced write-protection options.
• Device Management & Security  Features include field firmware update (FFU), device health report, production state awareness, RPMB improvements, secure write protection and power-off notification for sleep.

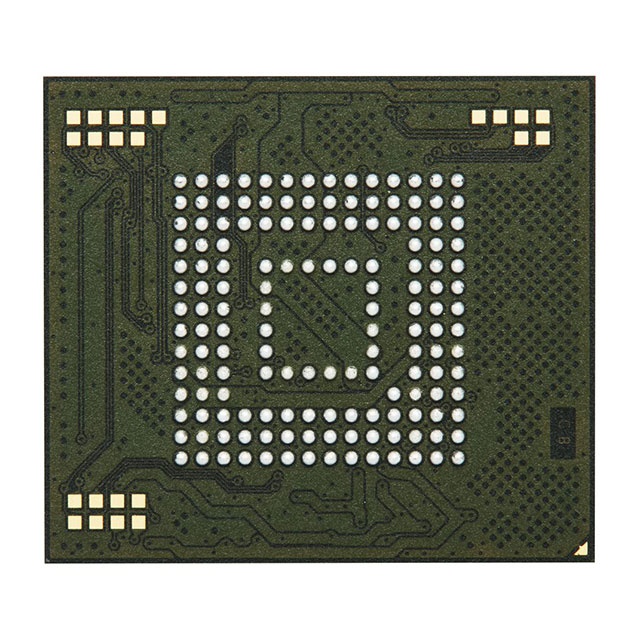

• Package & Temperature  153-ball JEDEC FBGA package (153-LFBGA, 11.5 × 13 mm) with operating temperature range −25°C to +85°C and storage temperature −40°C to +85°C.

Typical Applications

• Commercial Storage Systems  Provides managed solid-state storage for a range of commercial devices that need integrated flash media control and standard host interface.
• Industrial Embedded Systems  Suitably used in industrial applications within the stated operating temperature range where onboard flash management and reliability features are required.
• Embedded Controller and Host Storage  Acts as a compact, packaged non‑volatile storage solution for embedded platforms that benefit from an industry-standard e•MMC interface and onboard management.

Unique Advantages

• Standards-Based Integration: Compliant with JEDEC e•MMC™ 5.1 for predictable interoperability and backward compatibility with prior e•MMC revisions.
• Managed NAND with Onboard Controller: Offloads error correction, wear-leveling and NAND management from the host, simplifying software and firmware on the host processor.
• Flexible Performance Modes: Multiple transfer modes (SDR, DDR-104, HS-200, HS-400) and selectable bus widths enable performance scaling to match system requirements.
• Robust Data Integrity Features: Built-in ECC, CRC for command/data communication, sudden power-failure protection and secure bad block handling to support reliable storage operations.
• Compact, Industry Package: 153-LFBGA (11.5 × 13 mm) package provides a small-footprint, surface-mount solution for space-constrained designs.
• Field Firmware Update & Health Reporting: FFU and device health reporting support maintainability and production state awareness across product lifecycles.

Why Choose EMMC08G-ML36-01B00?

The EMMC08G-ML36-01B00 positions as a compact, standards-compliant managed NAND storage component that combines MLC flash with an integrated e•MMC 5.1 controller. Its combination of onboard flash management, multiple performance modes and data integrity features makes it appropriate for commercial and industrial embedded designs that require a reliable, interoperable storage interface.

Backward compatibility with prior e•MMC revisions and features such as field firmware update and device health reporting help simplify long-term product sustainment and maintenance for designs that must remain in service across future NAND generations.

Request a quote or submit an availability inquiry to discuss pricing, lead time and technical fit for your project.
