EMMC32G-TS0A-01001

The EMMC32G-TS0A-01001 is a packaged embedded flash memory device combining triple-level-cell (TLC) NAND with an onboard e•MMC™ controller and a JEDEC e•MMC™ 5.1 interface. It provides a managed, non-volatile storage solution tailored for commercial and industrial embedded systems that require compact, integrated flash storage.

With support for e•MMC™ 5.1 protocol features, multiple high-speed transfer modes and onboard media management, the device simplifies host design by offloading NAND management, error correction and wear-leveling to the integrated controller.

Key Features

• Core Architecture  Packaged managed NAND flash with an onboard e•MMC™ 5.1 controller that handles flash/media management and performance optimization.
• Memory Type & Capacity  256 Gbit total capacity organized as 32G × 8 using TLC NAND flash.
• e•MMC™ Interface & Protocol  Compliant with JEDEC e•MMC™ 5.1 standard; backward compatible with prior e•MMC™ revisions and supports alternate boot operation.
• Performance Modes  Variable clock frequencies 0–200 MHz with supported bus modes including single data rate (up to 52 MB/s @52 MHz on 8-bit), DDR-104 (up to 104 MB/s @52 MHz), HS-200 (up to 200 MB/s @200 MHz) and HS-400 (up to 400 MB/s @200 MHz).
• Bus & Boot Options  Ten-wire bus interface with optional hardware reset; supports 1-bit, 4-bit and 8-bit data bus widths and host-initiated sleep/awake (CMD5).
• Power & Voltage  Operating voltage range VCC = 3.3 V and VCCQ = 1.8 V / 3.3 V; supply range 2.7 V to 3.6 V.

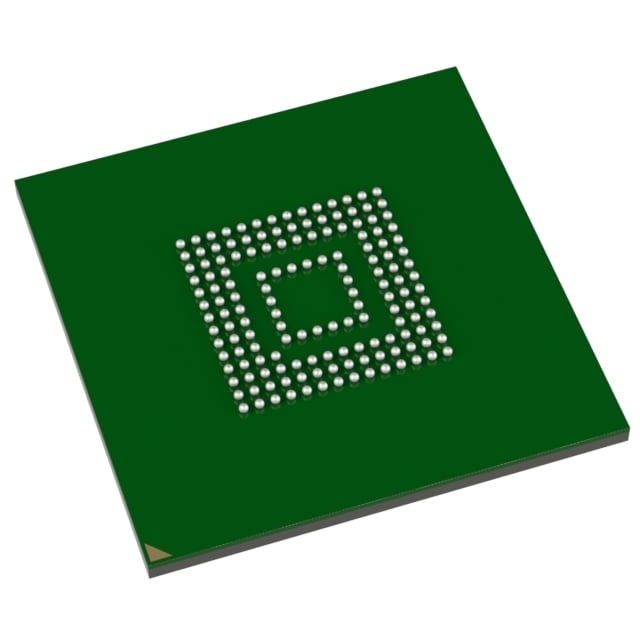

• Package  153-ball JEDEC FBGA (153-FBGA, 11.5 × 13 mm) RoHS-compliant package.
• Temperature Range  Operating temperature range −25 °C to +85 °C and storage temperature −40 °C to +85 °C.
• Reliability & Data Integrity  Internal ECC, CRC for command/data communication, enhanced data management, data protection for sudden power loss and endurance rated at 3,000 program-erase cycles.
• Device Management & Security  Supports secure bad block erase commands, enhanced write protection (permanent and partial), field firmware update (FFU), device health report and production state awareness.
• Advanced Host Features  Command queuing, cache flushing report, enhanced strobe, RPMB throughput improvements and background operation control with high-priority interrupt (HPI).

Typical Applications

• Commercial Embedded Systems  Compact managed storage for general-purpose embedded devices requiring integrated NAND management and e•MMC™ interface support.
• Industrial Controllers  Non-volatile program and data storage for industrial equipment operating across −25 °C to +85 °C.
• Boot & System Storage  Alternate boot capability and onboard controller make the device suitable for primary boot media and system image storage in embedded designs.

Unique Advantages

• Highly Integrated Storage  TLC NAND plus onboard e•MMC™ controller reduces host workload by internalizing wear-leveling, ECC and flash management.
• Flexible Performance Modes  Support for 1/4/8-bit bus widths and multiple speed modes (including HS-200 and HS-400) lets designers balance throughput and interface complexity.
• Robust Operating Range  Specified for −25 °C to +85 °C operation and −40 °C to +85 °C storage for use in a range of commercial and industrial environments.
• Data Integrity & Power-Loss Protection  Built-in ECC, CRC and sudden-power-failure protection help maintain data integrity during program operations.
• Device Management & Maintenance  Features such as field firmware update, device health reporting and production state awareness aid lifecycle management and diagnostics.
• Compact, Standard Package  153-ball JEDEC FBGA (11.5 × 13 mm) offers a standardized footprint for space-constrained board designs.

Why Choose IC FLASH 256GBIT EMMC 153WFBGA?

The EMMC32G-TS0A-01001 positions itself as a ready-to-integrate embedded storage component that combines managed TLC NAND and an e•MMC™ 5.1 controller to reduce host design complexity while offering multiple high-speed transfer modes. Its feature set—onboard ECC, power-loss protection, device health reporting and field firmware update—supports reliable operation and maintainability in commercial and industrial applications.

Designed for engineers who need compact, managed non-volatile storage with configurable performance and a standardized FBGA package, this device delivers a balance of integration, performance modes and device-level management suitable for a wide range of embedded systems.

Request a quote or contact sales to discuss availability, pricing and technical details for EMMC32G-TS0A-01001.
