EMMC32G-TX29-8AD11

The EMMC32G-TX29-8AD11 is a packaged managed NAND flash device integrating triple-level cell (TLC) NAND with an onboard e•MMC™ 5.1 controller. It provides a standardized e•MMC interface and internal flash management to simplify host system design.

Designed for commercial and industrial applications, this device delivers dense non-volatile storage (256 Gbit) in a 153-ball FBGA (11.5 × 13 mm) package with an operating temperature range of -25°C to +85°C and support for VCCQ = 1.8 V/3.3 V and VCC = 3.3 V.

Key Features

• Core Architecture  Packaged managed NAND flash combining TLC NAND with an onboard e•MMC™ 5.1 controller to handle media management, error control and performance optimization.
• Memory  256 Gbit capacity organized as 32G × 8, providing high-density non-volatile storage.
• Interface & Bus  JEDEC e•MMC™ 5.1 interface with ten-wire bus (clock, command, 8-bit data) and support for 1-, 4- and 8-bit data widths and an optional hardware reset.
• Performance Modes  Multiple transfer modes: single data rate up to 52 MB/s (8-bit @ 52 MHz), DDR-104 up to 104 MB/s, HS-200 up to 200 MB/s, and HS-400 up to 400 MB/s.
• Voltage & Power  Supports VCCQ = 1.8 V or 3.3 V and VCC = 3.3 V.

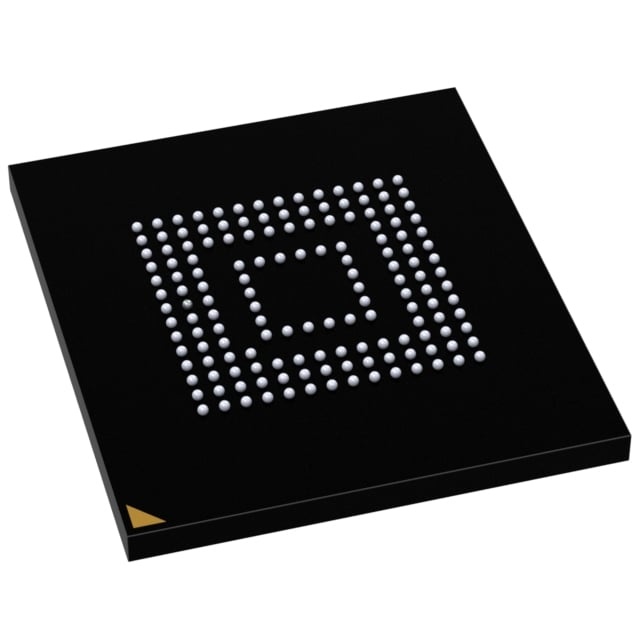

• Package & Mechanical  153-ball JEDEC FBGA package (153-WFBGA, 11.5 × 13 mm) for compact board-level integration.
• Temperature Range  Operating (Tcase) from -25°C to +85°C and storage temperature range –40°C to +85°C.
• Data Integrity & Reliability  Internal ECC, CRC for command/data communication, enhanced data management algorithms and protection features including secure bad block erase and enhanced write protection.
• System Features  Supports alternate boot operation, SLEEP/AWAKE (CMD5), host-initiated explicit sleep, power-off notification, command queuing, field firmware update (FFU), device health report and cache flushing/reporting capabilities.

Typical Applications

• Commercial Embedded Storage  Provides compact, managed non-volatile storage for commercial electronics requiring standardized e•MMC™ interfaces.
• Industrial Systems  Suited for industrial applications operating within -25°C to +85°C that need dense local storage and onboard flash management.
• Boot and Firmware Storage  Supports alternate boot operation and field firmware update (FFU) modes for streamlined boot sequences and in-field firmware maintenance.
• System Health & Diagnostics  Device health reporting, production state awareness and pre-EOL information help with diagnostics and product lifecycle management.

Unique Advantages

• Integrated Flash Management:  Onboard e•MMC™ controller manages ECC, wear-leveling and NAND media tasks, reducing host processing and firmware complexity.
• Standards-Based Compatibility:  Complies with JEDEC e•MMC™ 5.1 and is backward compatible with prior e•MMC™ revisions, aiding product sustainment across future revisions.
• Flexible Performance Modes:  Multiple bus widths and transfer modes (SDR, DDR-104, HS-200, HS-400) allow designers to choose appropriate throughput for their application.
• Robust Data Protection:  Internal ECC, CRC checks, secure bad block erase and power-off notification features reduce the risk of data corruption during normal operation and power events.
• Compact, Industry Package:  153-ball FBGA (11.5 × 13 mm) offers high-density storage in a small footprint for space-constrained designs.
• Operational Visibility:  Device health reports, production state awareness and cache/reporting features support maintenance and lifecycle planning.

Why Choose EMMC32G-TX29-8AD11?

The EMMC32G-TX29-8AD11 combines high-density TLC NAND with a managed e•MMC™ 5.1 controller to deliver a compact, standards-based storage solution that offloads flash management from the host. Its configurable bus widths and multiple transfer modes provide flexibility between throughput and system complexity.

With built-in data protection features, field firmware update support and device health reporting, this device is positioned for commercial and industrial embedded designs that require reliable, maintainable non-volatile storage and simplified system integration.

Request a quote or submit an inquiry to discuss availability, pricing and technical details for integrating the EMMC32G-TX29-8AD11 into your design.
